DIGITAL UHF 5W 64 CHANNELS RADIO:
* Professional licensed radio compatible with digital and analog modes
* TK-U300D is an upgrade from TK-U100D, with the same size and lightweight, but double the number of channels and double each channel capacity due to TDMA
* IP54 dust and water proof to allow rough treatment in stride
* Selectable power, battery saver, TOT make the radio to work longer than expect
* Caller ID, all, group and private call allow the team communication to be efficient and flexible
* Several functions to ensure your team member’s security and performance under emergent circumstances
* IP54 dust and water proof to allow rough treatment in stride
* Selectable power, battery saver, TOT make the radio to work longer than expect
* Caller ID, all, group and private call allow the team communication to be efficient and flexible
* Several functions to ensure your team member’s security and performance under emergent circumstances
ADDITIONAL FEATURES:
* Scan/Priority Channel Scan
* Auto Channel Scan
* Squelch Level
* Squelch Level
* High / Low Power Selectable
* Battery Saver
* Low Battery Alert
* Time Out Timer
* Busy Tone Lock Out (BTLO)
* Internal VOX
* Channel Announcement
* Shortcut Button
* Battery Saver
* Low Battery Alert
* Time Out Timer
* Busy Tone Lock Out (BTLO)
* Internal VOX
* Channel Announcement
* Shortcut Button
ANALOG MODE FEATURES:
* CTCSS/DCS Encode/Decode
* DTMF Encode
*
Radio STUN/REVIVE
Radio STUN/REVIVE
DIGITAL MODE FEATURES:
*
Direct Mode and TDMA Tier II
Direct Mode and TDMA Tier II
* Caller ID
* All, Group and Private Call
* Status Messaging
* Encryption
* Remote Check
* Radio Kill and Revive
* Emergency Alert
* All, Group and Private Call
* Status Messaging
* Encryption
* Remote Check
* Radio Kill and Revive
* Emergency Alert

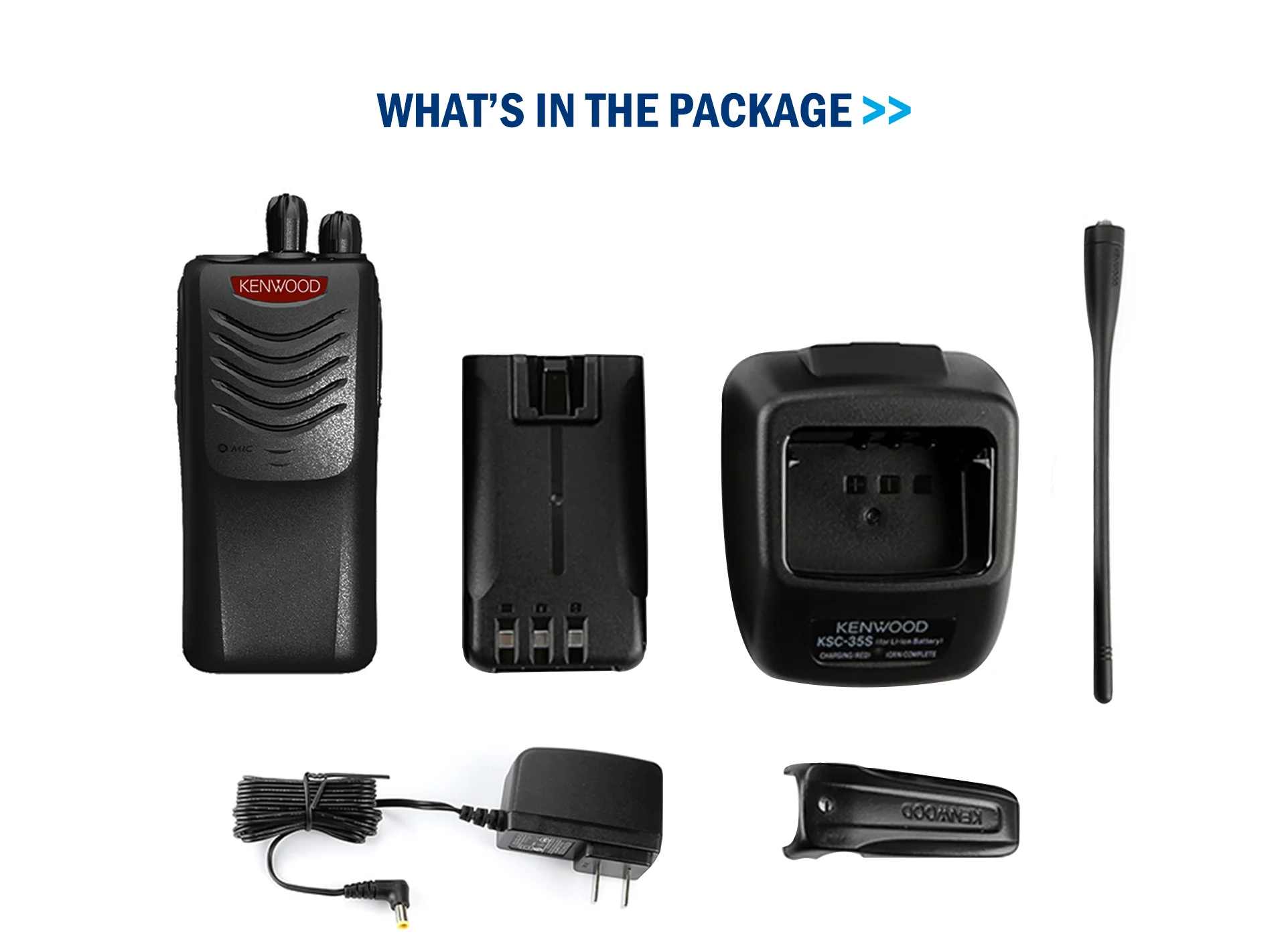

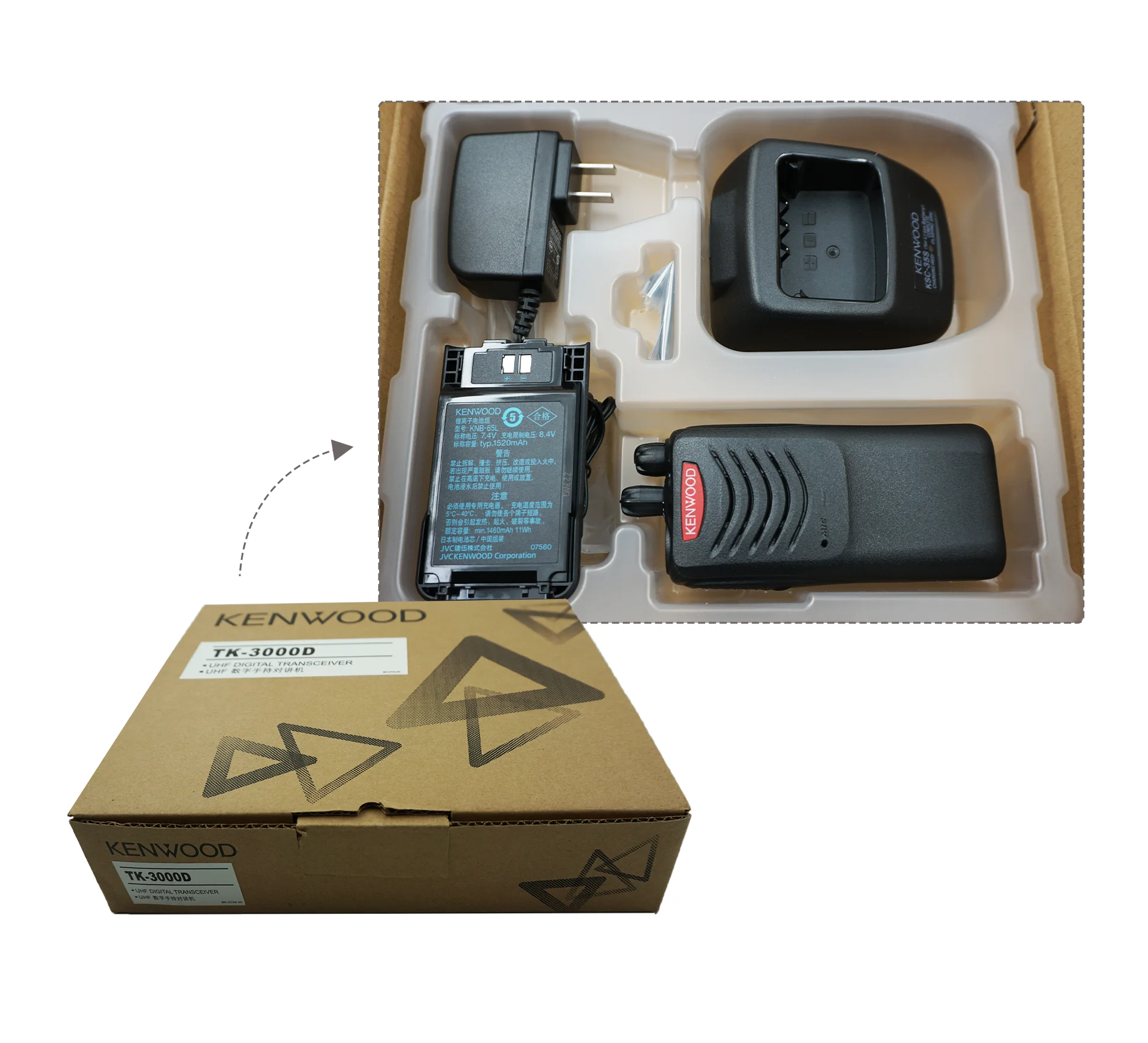

INCLUDED IN THE PACKAGE:
* Kenwood TK-U300D radio (*1)
* Removable Antenna (*1)
* Desktop Rapid Charger (*1)
* AC Adapter (*1)
* KNB-65 1460mAh Li-ion Battery (*1)
* Belt Clip (*1)
* Nylon Strap (*1)
* Instruction Manual (*1)ACCESSORIES COMPATIBLE WITH TK-U100D:
*Â Battery:Â KNB-63L 1130mAh Li-ion / KNB-65L 1520mAh Li-ion
*Â Antenna:Â KRA-23 UHF Helical / KRA-27 UHF Whip
*Â Charger:Â KSC-35S Single-Way Rapid (for KNB 45L/63L/65/) / KSC-43 Single-Way Rapid (for KNB-29N/45L/53N/63L/65L)
*Â Speaker / Mic / Headset:Â KHS-26 Clip PTT Mic with Earbud / KHS-27 D-Ring Headset with PTT Mic / Helen Noise Cancelling Mic with D-Ring Earpiece
* Kenwood TK-U300D radio (*1)
* Removable Antenna (*1)
* Desktop Rapid Charger (*1)
* AC Adapter (*1)
* KNB-65 1460mAh Li-ion Battery (*1)
* Belt Clip (*1)
* Nylon Strap (*1)
* Instruction Manual (*1)ACCESSORIES COMPATIBLE WITH TK-U100D:
*Â Battery:Â KNB-63L 1130mAh Li-ion / KNB-65L 1520mAh Li-ion
*Â Antenna:Â KRA-23 UHF Helical / KRA-27 UHF Whip
*Â Charger:Â KSC-35S Single-Way Rapid (for KNB 45L/63L/65/) / KSC-43 Single-Way Rapid (for KNB-29N/45L/53N/63L/65L)
*Â Speaker / Mic / Headset:Â KHS-26 Clip PTT Mic with Earbud / KHS-27 D-Ring Headset with PTT Mic / Helen Noise Cancelling Mic with D-Ring Earpiece
Specifications
|
GENERAL SPECIFICATIONS:
|
|
|
Frequency Range
|
400-470 MHz
|
|
Number of Channels
|
64
|
|
Channel Spacing
|
Analog: 12.5 kHz / 25 kHz Digital: 12.5 kHz
|
|
Power Supply Voltage
|
7.4 V +/- 20%
|
|
Operating Temperature Range
|
-30°C to +60°C
|
|
Weight Approx.
|
205 g [with KNB-63L 1460 mAh Li-lon]
|
|
Dimension (H x W x D)
|
113*54*24.9 mm
|
|
Dust and Water Protection
|
IP54
|
|
RECEIVER SPECIFICATIONS:
|
|
|
Digital Sensitivity
|
0.2 uV
|
|
Frequency Stability
|
±2.5 ppm
|
|
Adjacent Channel Selectivity
|
60 dB [12.5 kHz]
|
|
Intermodulation
|
55 dB
|
|
Spurious Rejection
|
70 dB
|
|
Conducted Spurious Emission
|
-57 dBm @ < 1GHz -47 dBm @ > 1GHz
|
|
Audio Output
|
1 W @ 16 Ohms [INT] / 500 mW @ 8hms [EXT]
|
|
TRANSMITTER SPECIFICATIONS:
|
|
|
Output Power
|
<= 5 W
|
|
Modulation Limiting
|
2.5 kHz [Analog 12.5 kHz]
|
|
Hum and Noise
|
-40 dB [Analog 12.5 kHz]
|
|
Conducted Spurious Emission
|
-36 dB <= 1GHz -30 dB > 1GHz
|
|
4FSK Digital Modulation
|
7K60FXD, 7K60FXE
|
