Description:

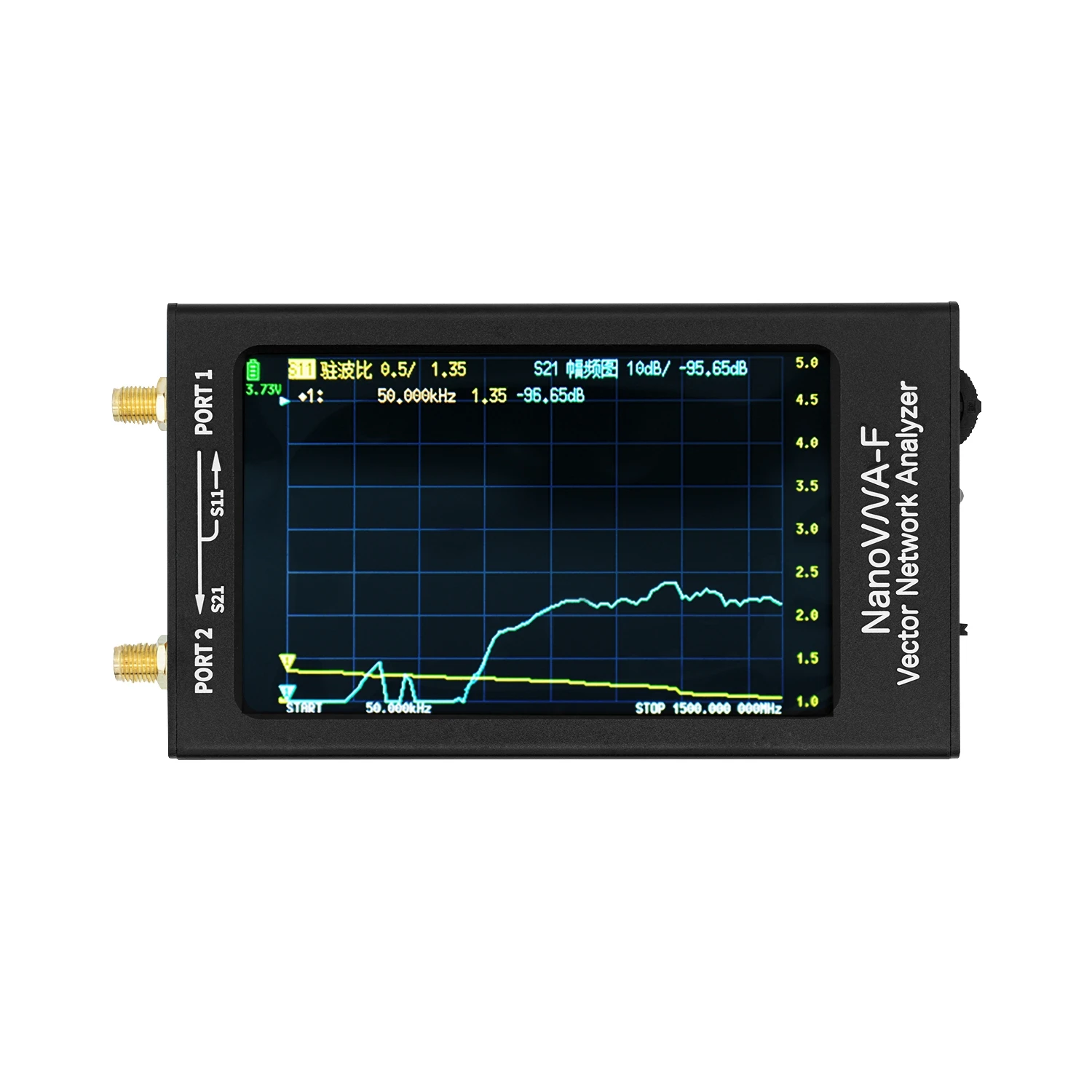

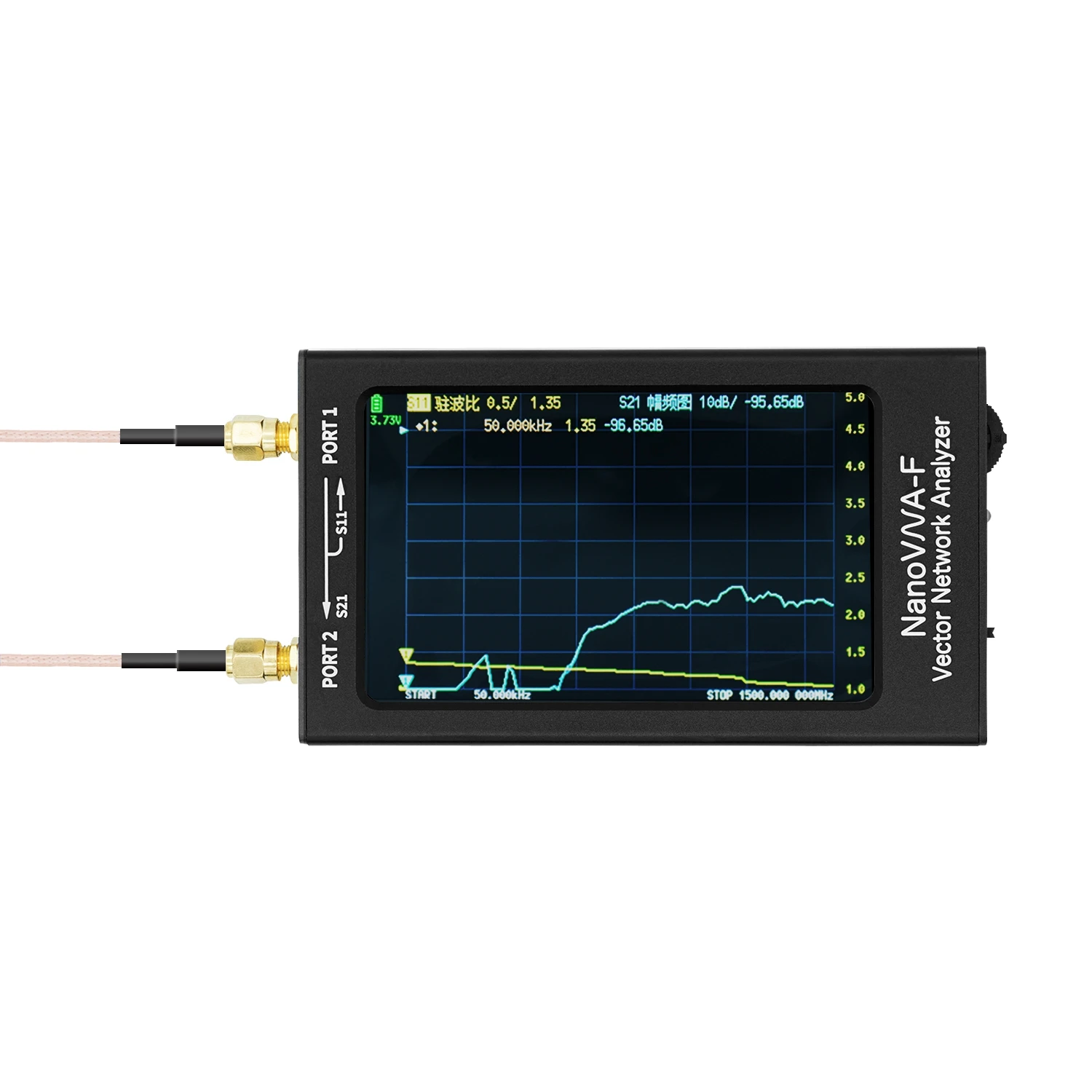

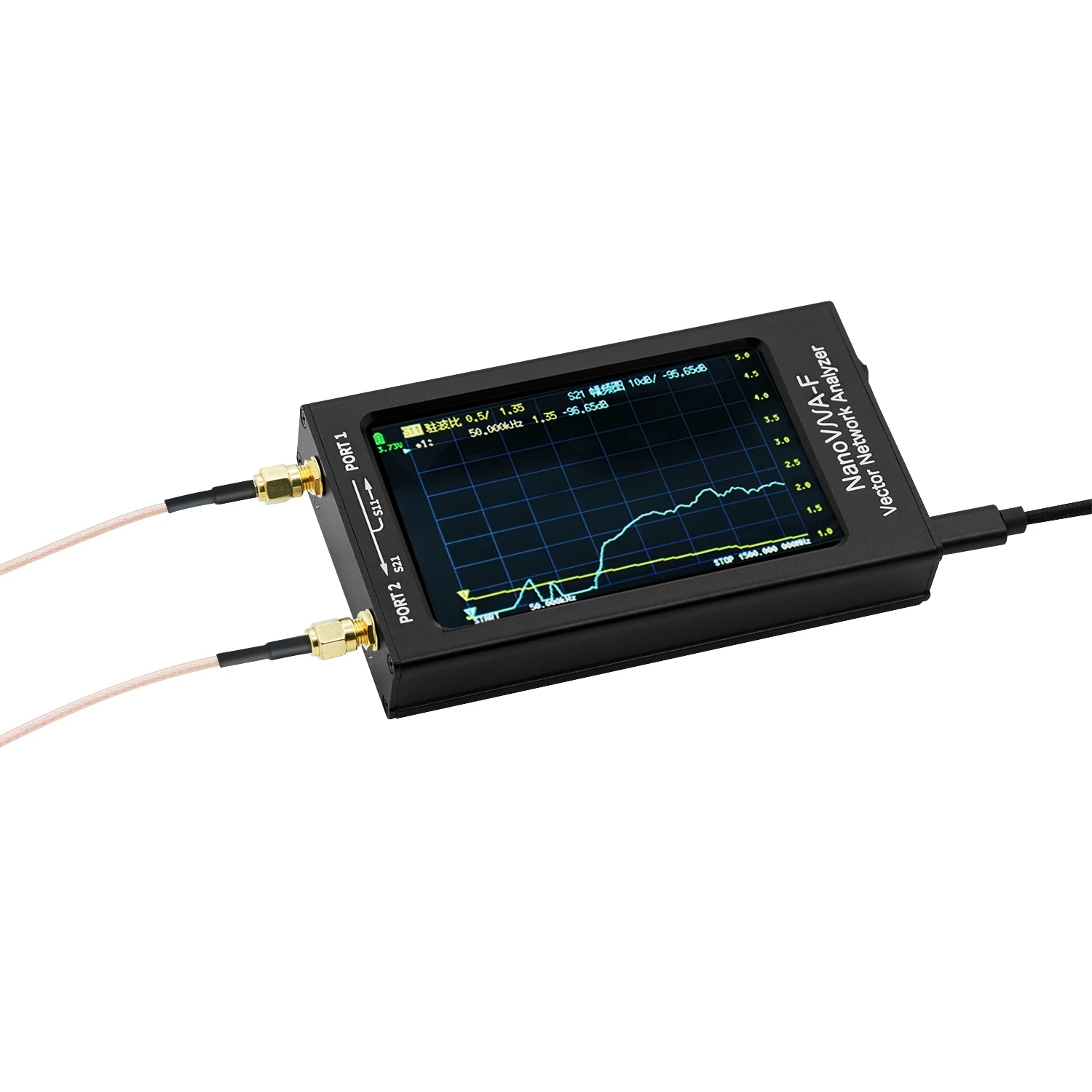

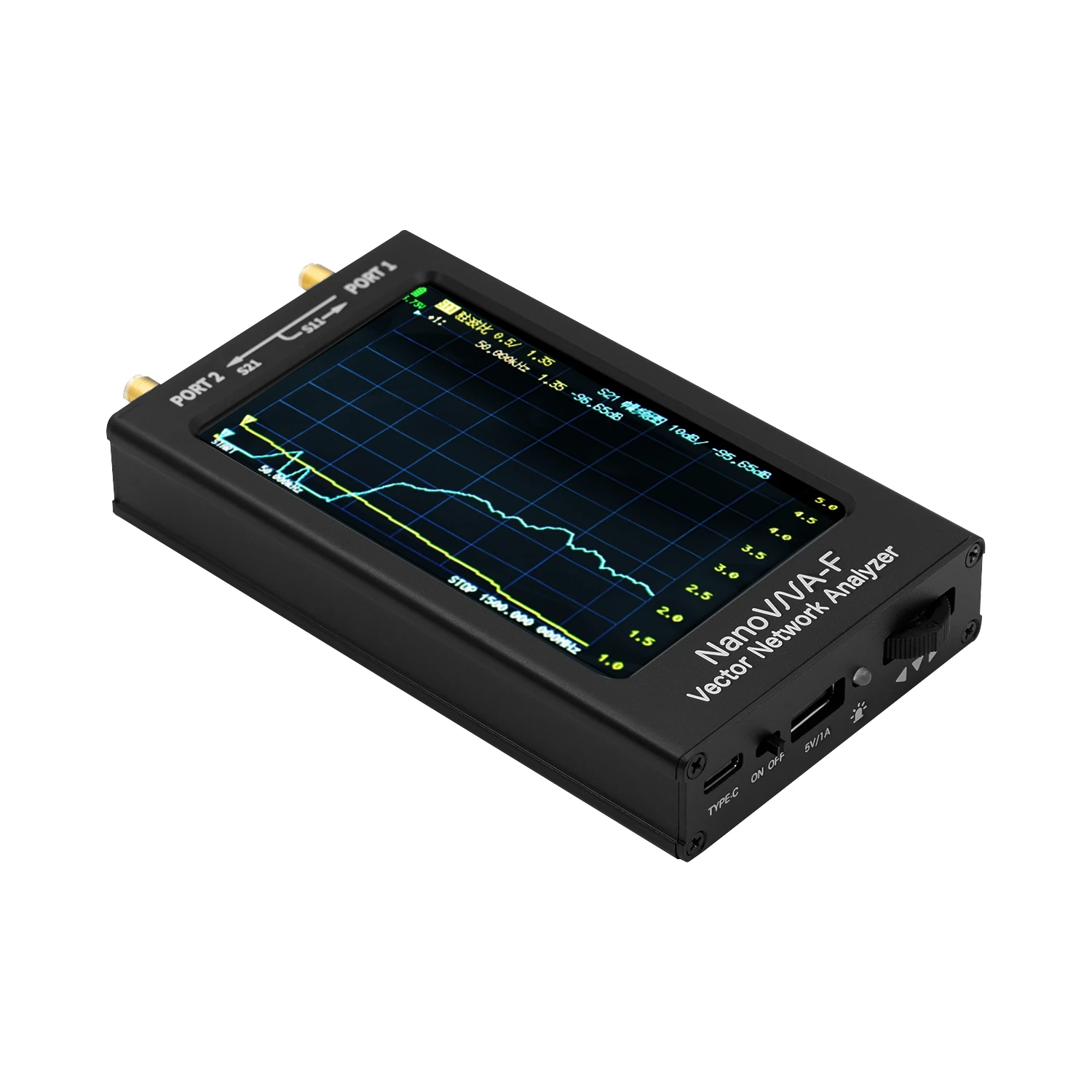

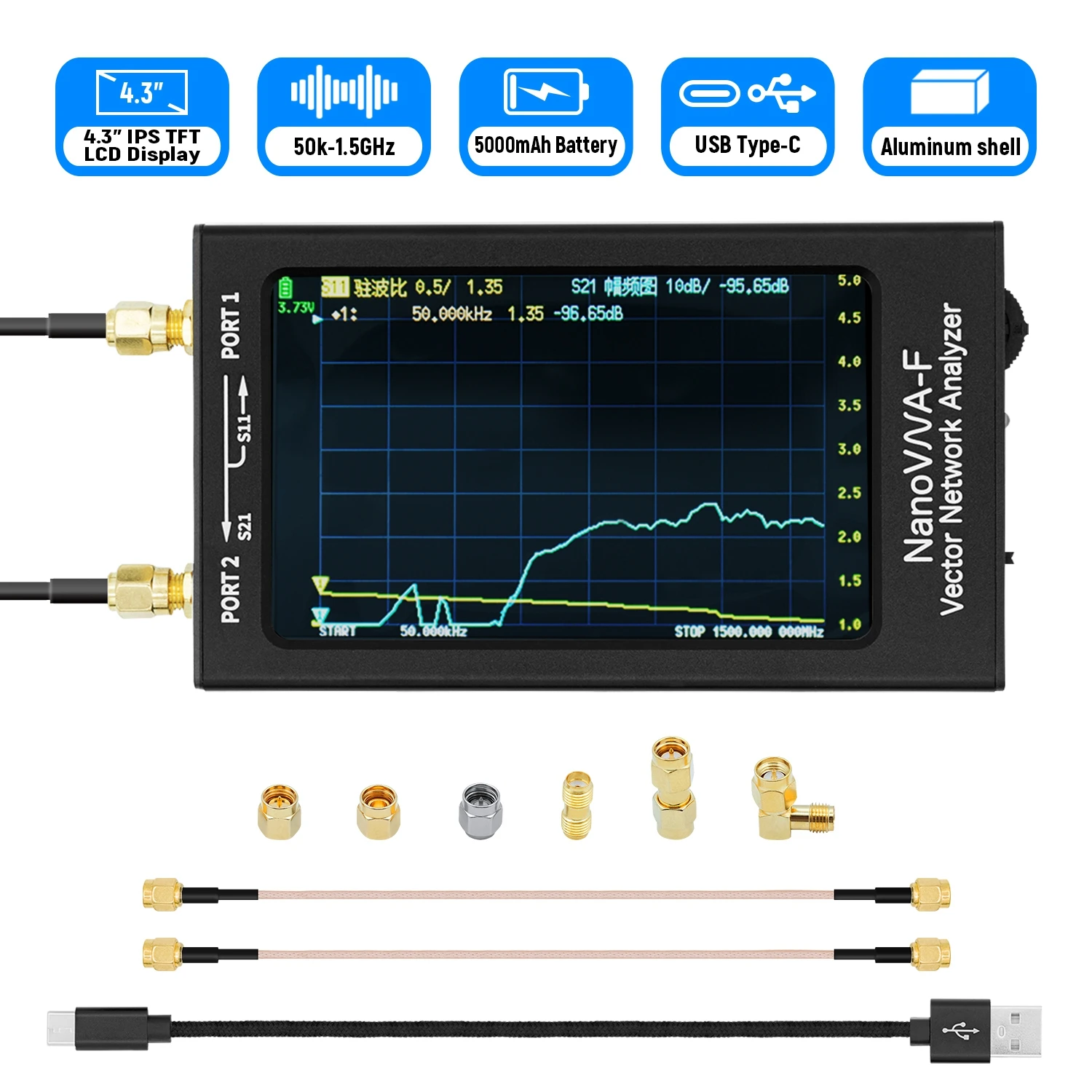

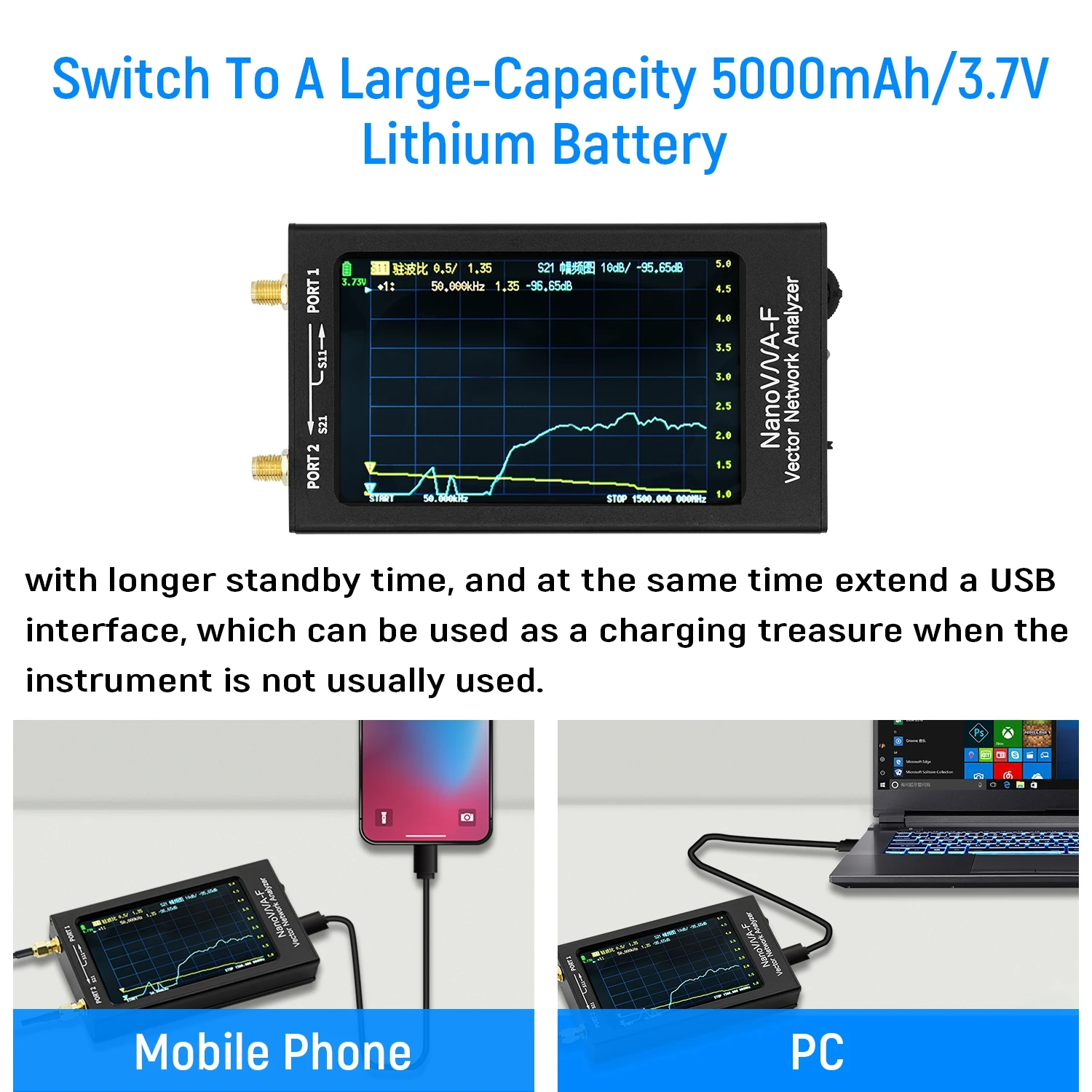

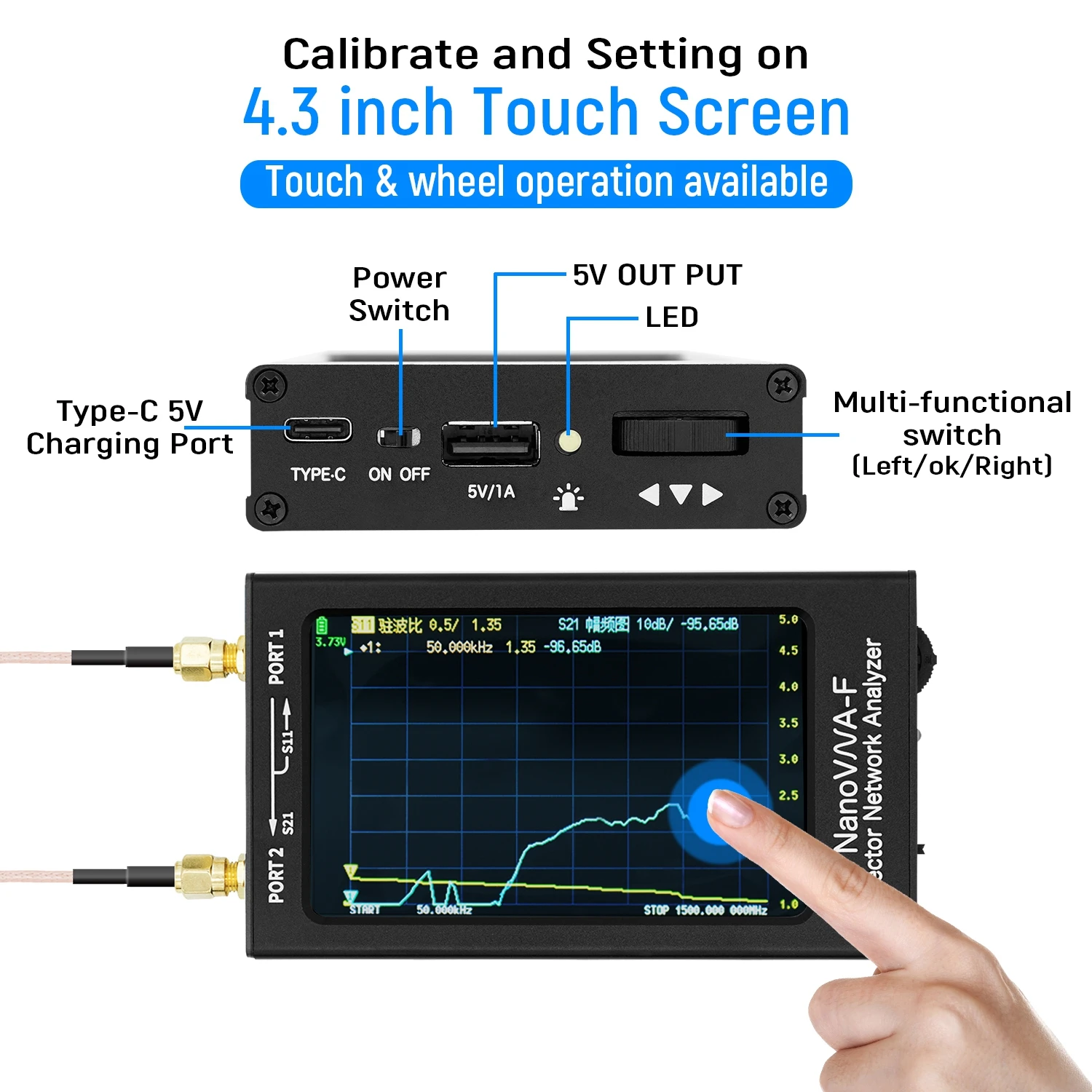

This is a DIY product that provides perfect vector network measurement capabilities. The aluminum housing shield is designed to reduce the external interference and improve the measurement accuracy. Tiny and handheld, stand-alone with 4.3″ IPS TFT LCD display. Portable with battery powered or USB powered.

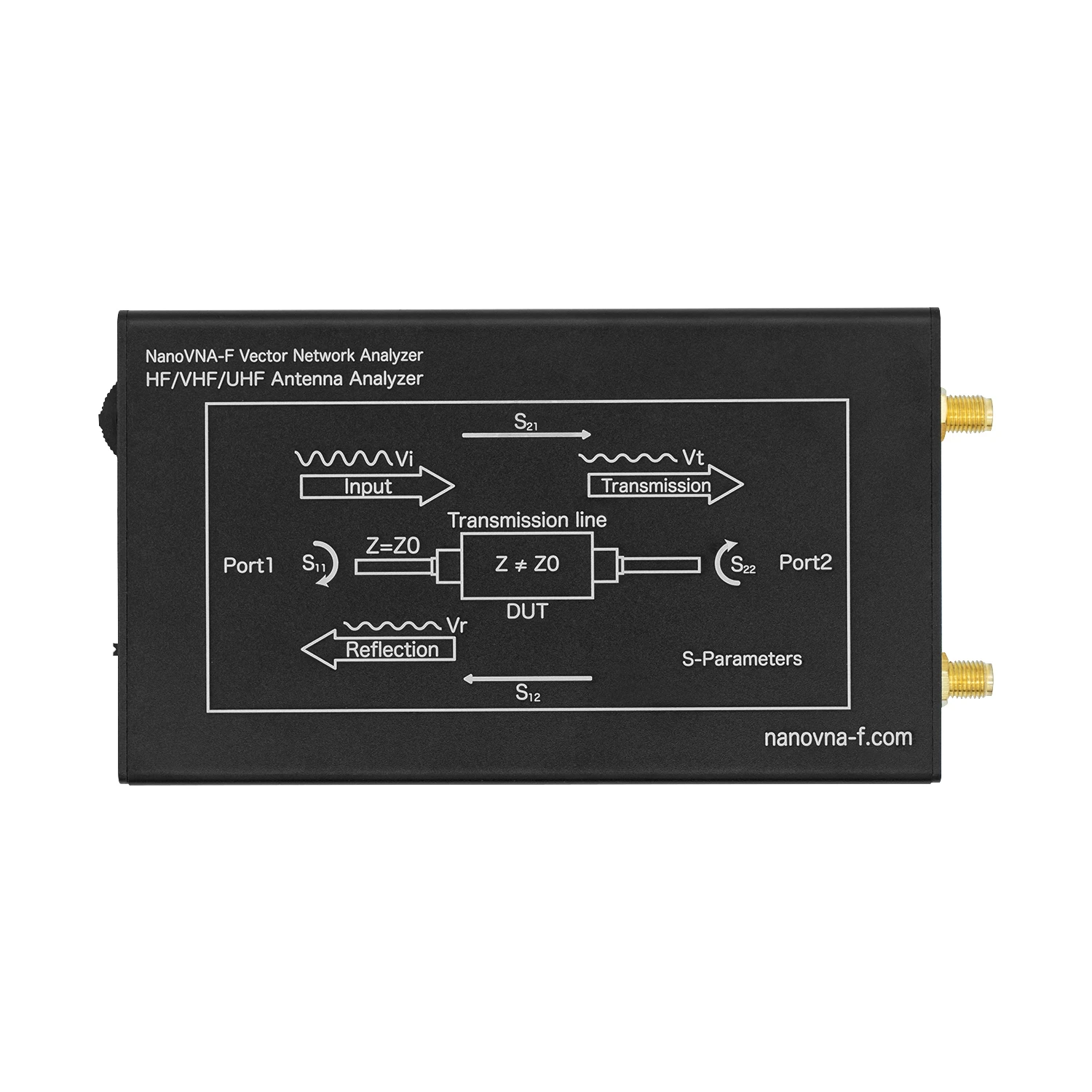

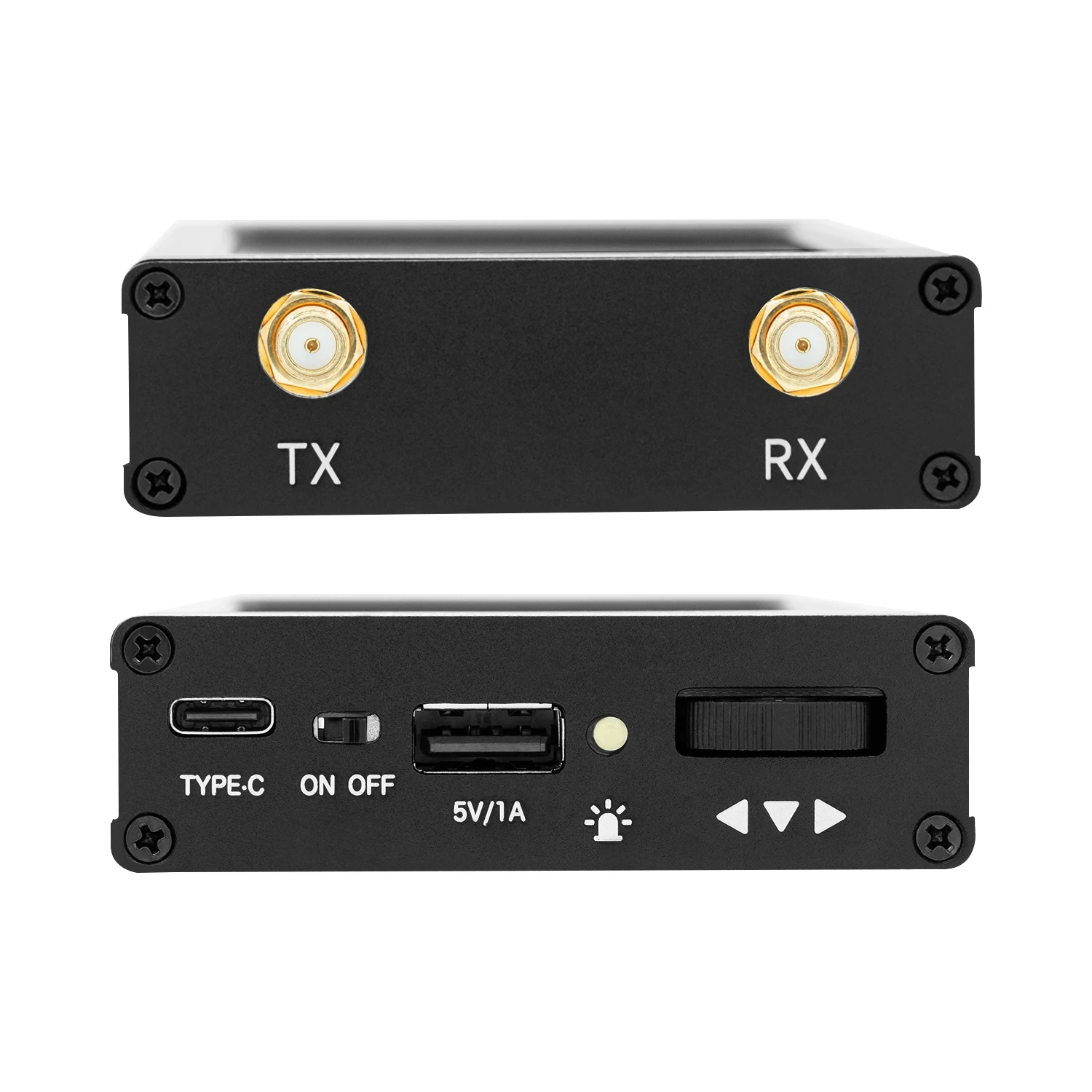

– Standard aluminum housing to protect SMA head and reduce the interference of external electromagnetic waves to instrument.

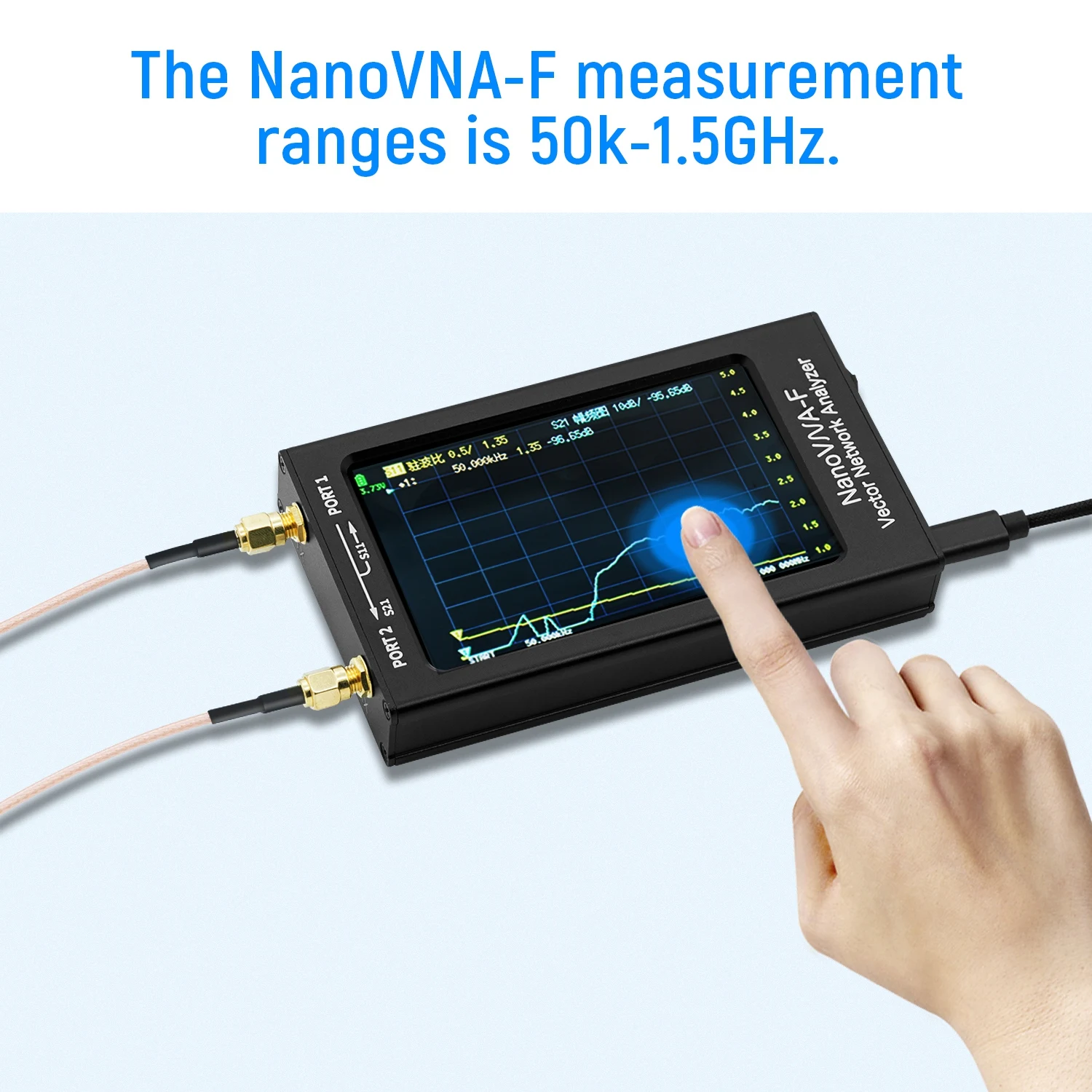

– NanoVNA-F firmware release 0.0.5, supporting measurable frequency to 1.5GHz (default setting 1 GHz, accurate measurement up to 1.35GHz). Fixed various bugs and added REAL IMAG R X trace format now.
– Use the harmonic of the clock chip SI5351 to measure frequency up to 1000MHz. At 600M-1GHz, the S11 has a dynamic ranges of 40dB (the standing waves ratio is less than 1.02).
– The RF front end is designed with a metal shie
