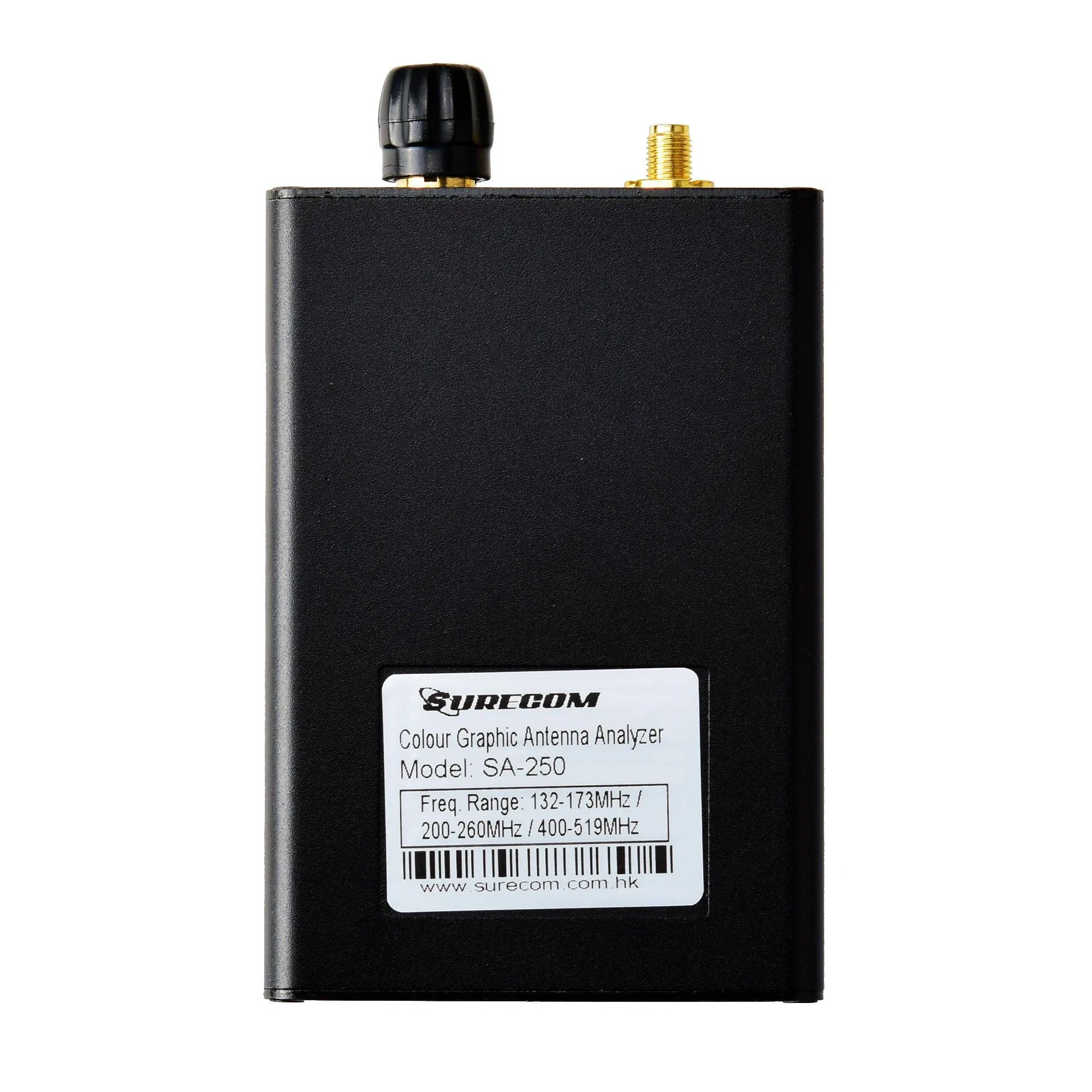

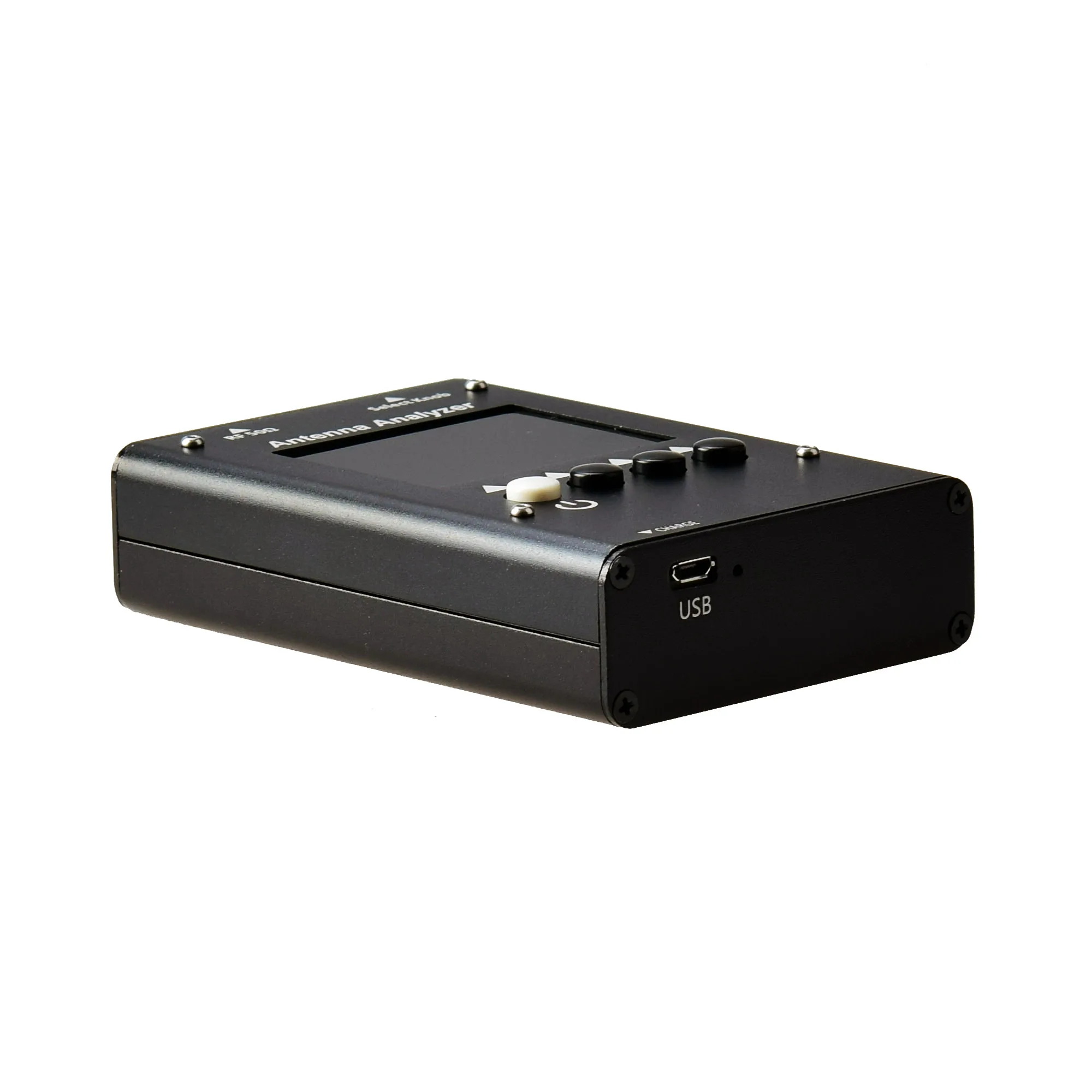

Surecom SA-250 132-173/200-260/400-519MHz Colour Graphic Antenna Analyzer S.W.R. SMA to BNC/SMA Adaptor with USB Charger Cable

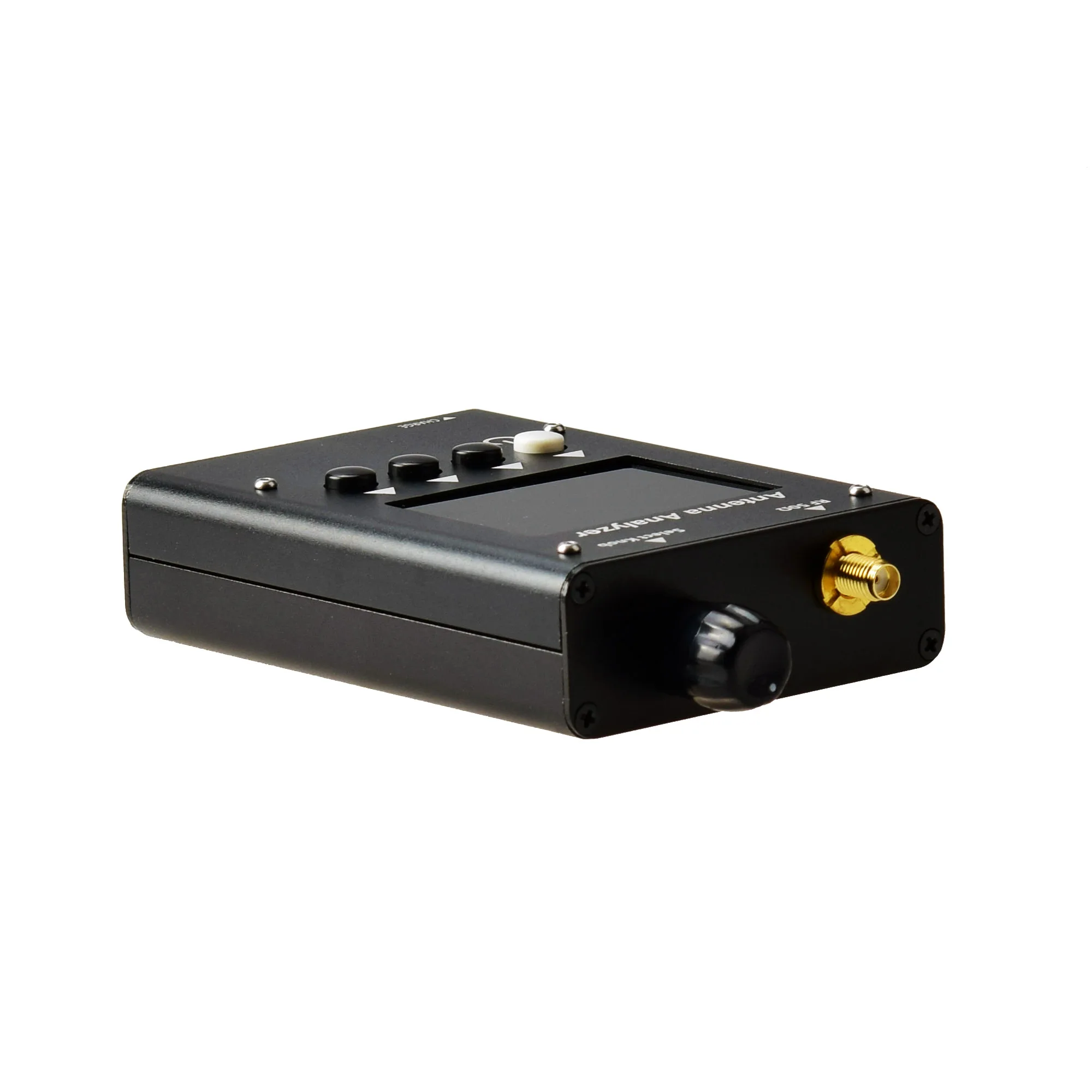

SURECOM Antenna Analyzer SA250 132-173 200-260 400-519MHz

SA-250 antenna analyzer designed for testing, checking, tuning or repairing antennas and antenna feed lines.Mainly, these are S.W.R. (Standing Wave Ratio) and impedance measurement instruments (vector impedance analyzers).Easy-to use measurement modes. make SURECOM attractive for professionals and hobbyists. It is important that graphical display of various parameters over a wide frequency range is a key feature of these analyzer which significantly reduces the time required to adjust an antenna.

Main Features:

■ 2.2 ” precision LCD screen,High-lumen LCD brightness, easy to read in direct sunlight

■ Heavy duty Aluminum enclosure,strong anti-interference ability.

■ Very compact and convenient for field use

■ Built-in rechargeable Li-ion battery

■ Full Band control (No need select Band )

■ Easy setup, only four control buttons with convenient on-screen soft menus

■ Constant Battery Status Indicator and Auto Shut-off

■ Built-in timer shows elapsed time when unit is turned on

■ High efficiency IC, low power consumption, the longest working hours

■ More choice measurement frequency Span .

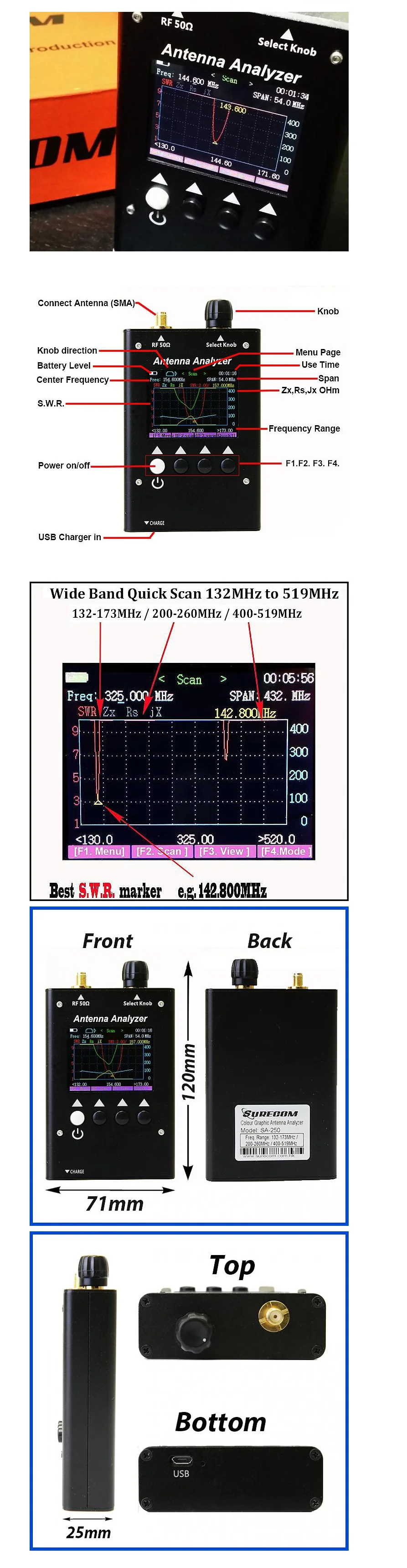

■ One button quick scan mode (V1,V2,U) or 3 band by full screen.

■ Auto marker the Best s.w.r. level reference

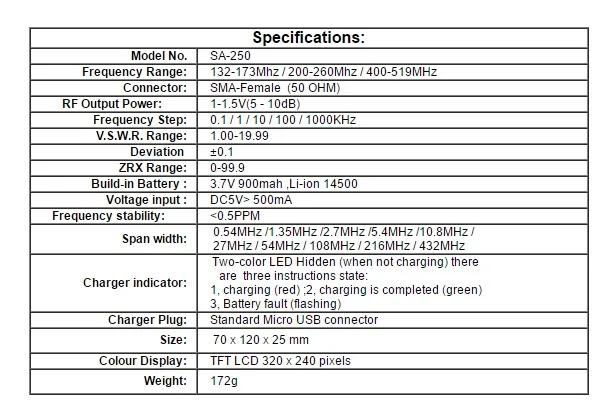

Specifications:

Model No.SA-250

Frequency Range: 32-173MHz / 200-260MHz / 400-519MHz

Connector: SMA-Female (50 OHM)RF Output Power: 1-1.5V (5 – 10dB)

Frequency Step: 0.1 / 1 / 10 / 100 / 1000KHz

V.S.W.R. Range: 1.00-19.99

Deviation: ±0.1ZRX Range: 0-99.9

Build-in Battery: 3.7V 900mah ,Li-ion 14500

Voltage input: DC5V> 500mA

Frequency stability: < 0.5PPMSpan width:0.54MHz /1.35MHz /2.7MHz /5.4MHz /10.8MHz / 27MHz / 54MHz / 108MHz / 216MHz / 432MHz

Charger indicator: Two-color LED Hidden (when not charging) there are three instructions state:

1, charging (red) ;

2, charging is completed (green)

3, Battery fault (flashing)

Charger Plug: Standard for Micro USB connector

Size: 70 x 120 x 25 mm

Colour Display: TFT LCD 320 x 240 pixels

Weight: 172g

Power Source: Built-in 3.7V, 900-mAh ,Size 14500 of Lithium battery.

Charge Controller: Smart charger, LED charging-status indicator

Voltage Monitor: On-screen DVM, plus battery condition icon

Charger Source: Any USB port, analyzer accepts for Micro-USB plug

Power Savers: Auto-off timer, Auto Run/Stop RF generator control Interface

RF Connector: SMA-female , (optional PL-259 ,N connector need adapter)

Battery Charge Connector: for Micro-USB

Screen: 2.2 inch high-output color TFT

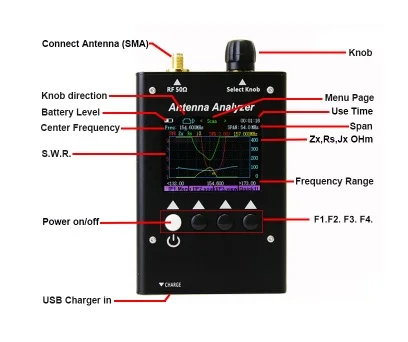

Function Keys : 4 button, with on-screen (soft-menu) identifiers

Tuning: Rotary encoder with press-in tuning-step choice

Weight and Dimensions

Case: Aluminum metal

Size: 2.8″ wide x 4.0″ high x 1.0″ deep (7 cm x12 x 2.5 cm)

Weight: 6.1 oz (0.172 kg)

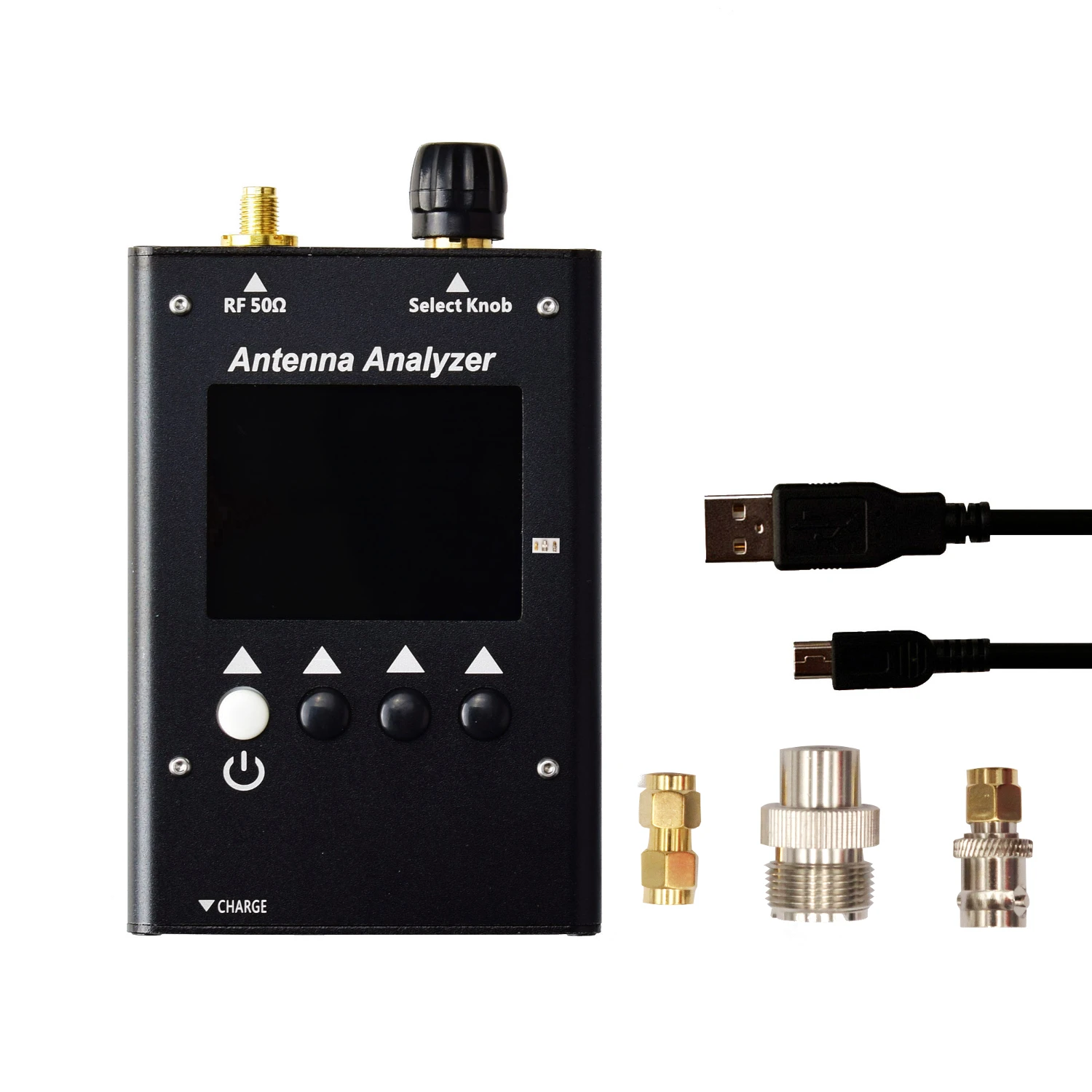

PACKAGE CONTAIN:

1 x SURECOM SA250 (ENGLISH VERSION) Colour Graphic Antenna Analyzer

1 x English User”s Manual

1 x Mirco Usb Charger Cable

1 x AC Adapter 100-240V (Depends on your country)

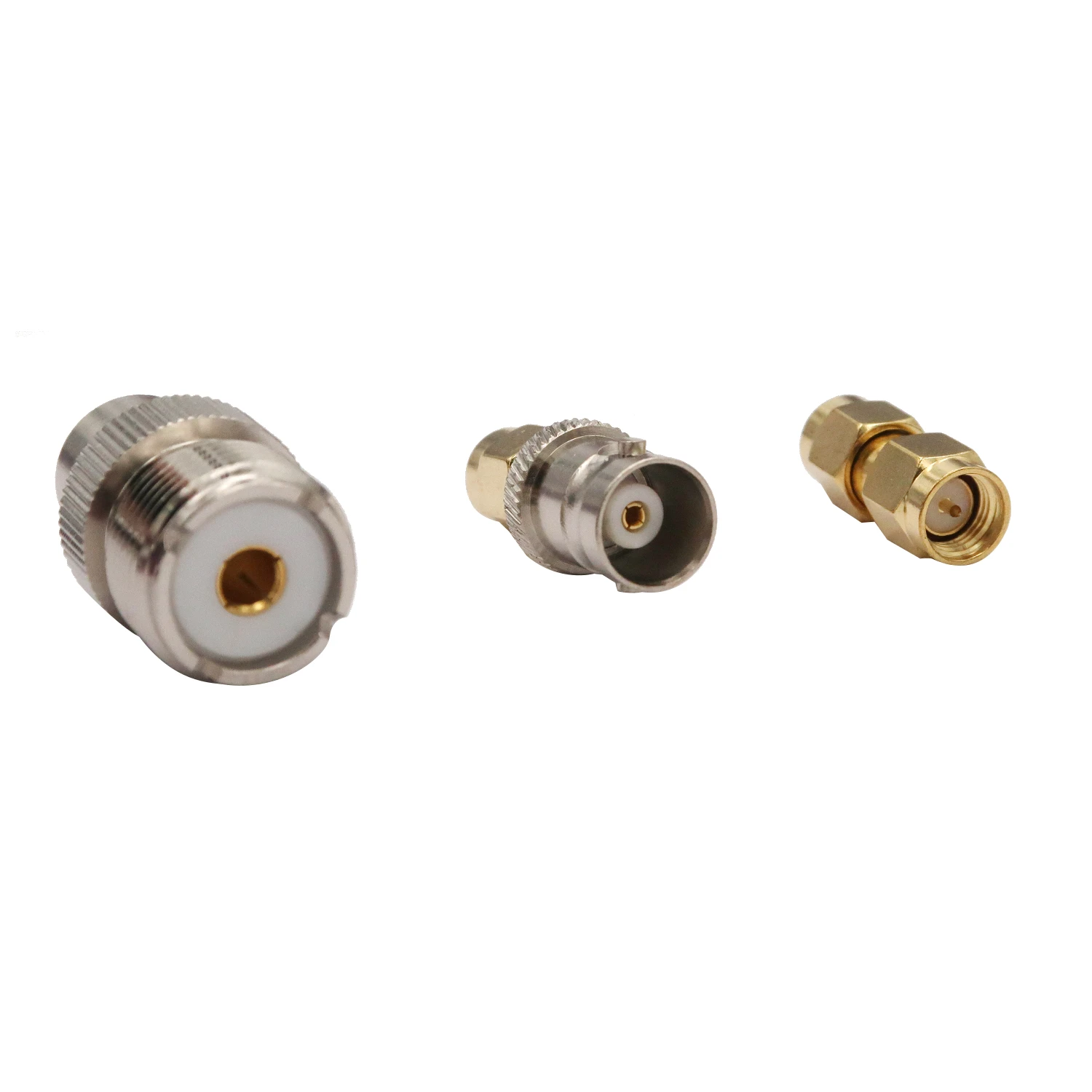

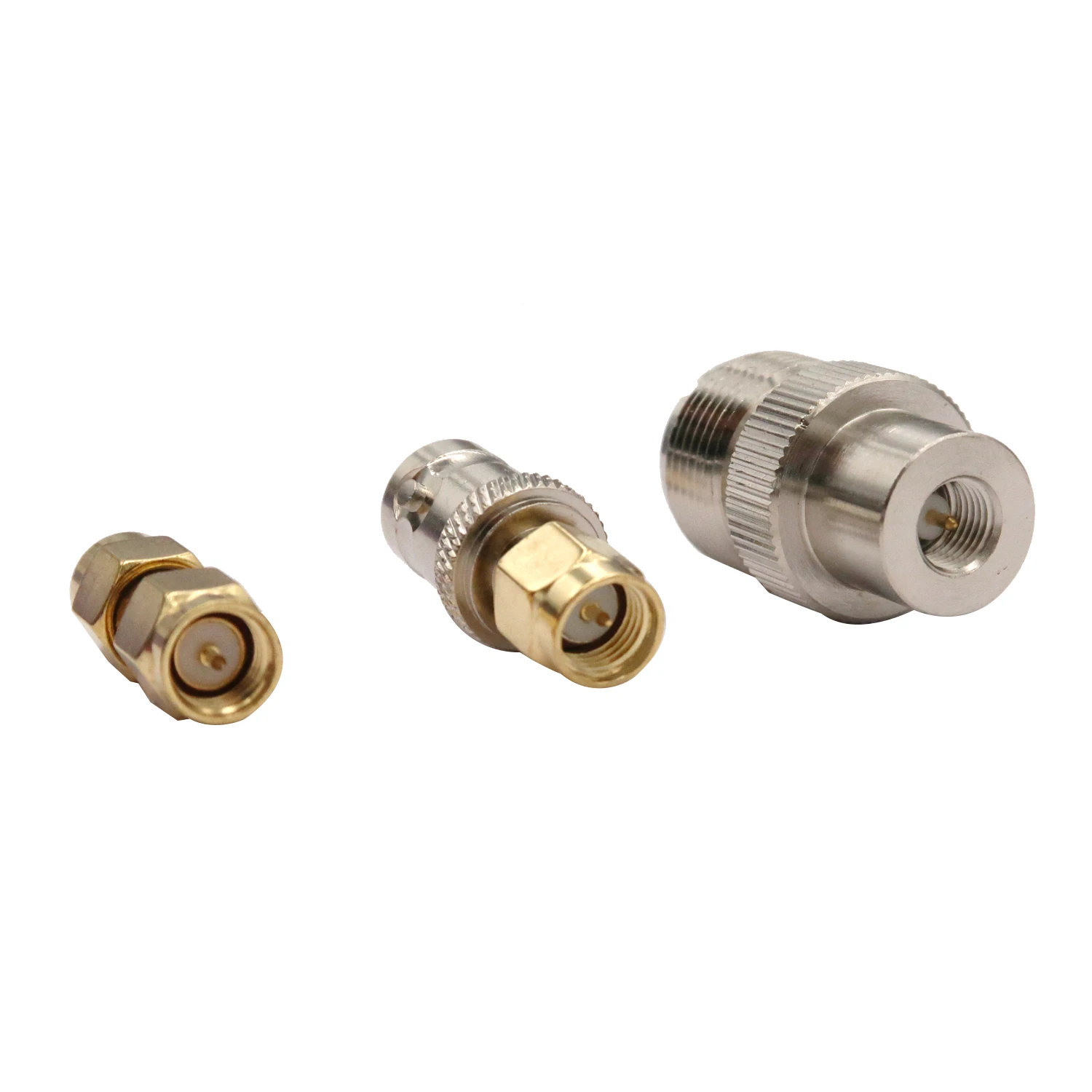

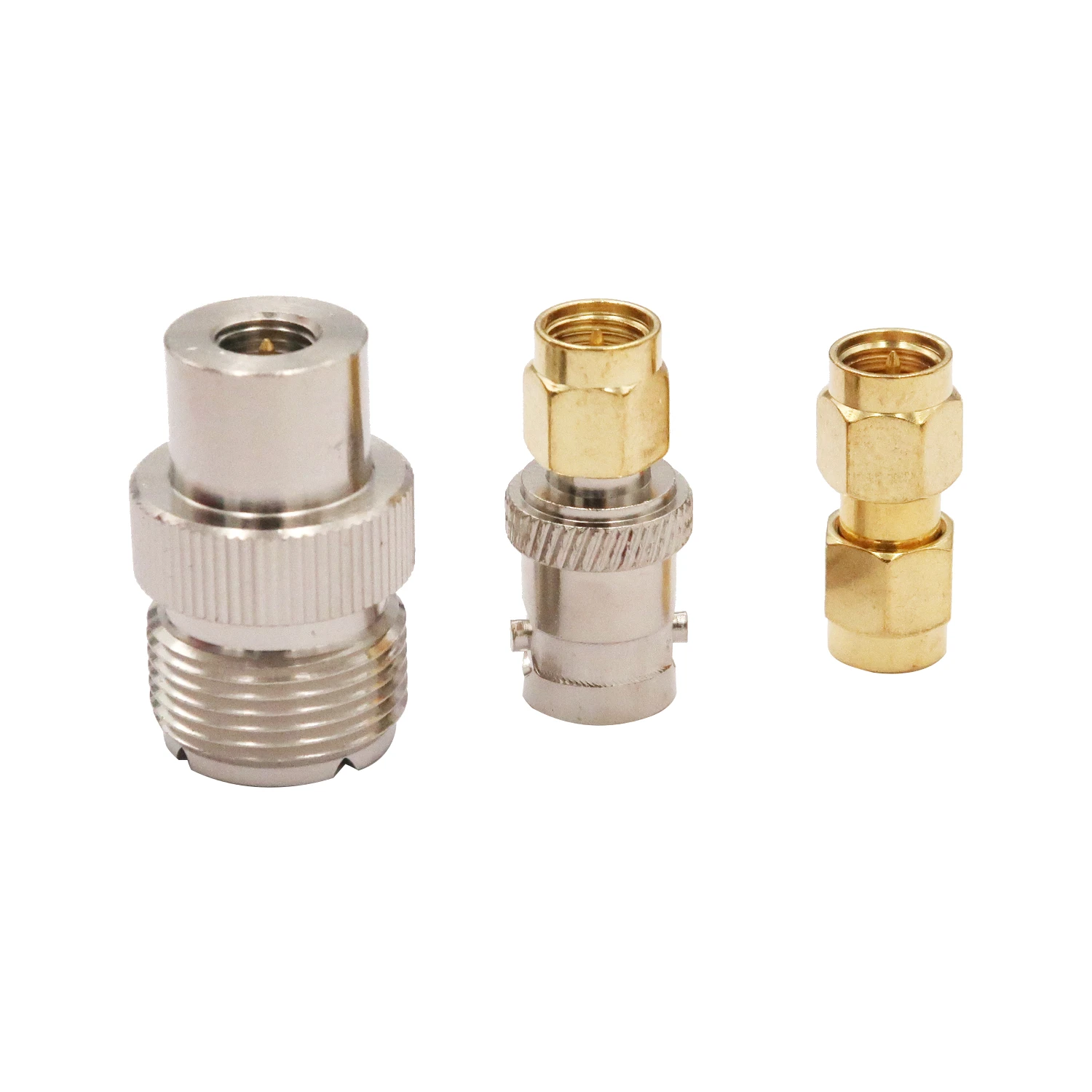

1x SMA- SO239 adaptor

1x SMA to BNC Adaptor1x SMA to SMA adaptor

SA-250 How to Use

1.0 Turn on and Turn off the power

Turn on the power, Press and hold White botton when the dot disappear from left up angle ,. top Menu appeared on the screen.

Turn off the power, You have 2 method :

a) On Top Menu page ,Press and hold the White [F1 ] botton 5 second .

b) On Top Menu page , Rotary encoder on “Power off”, Press the [F2 Enter] 1.

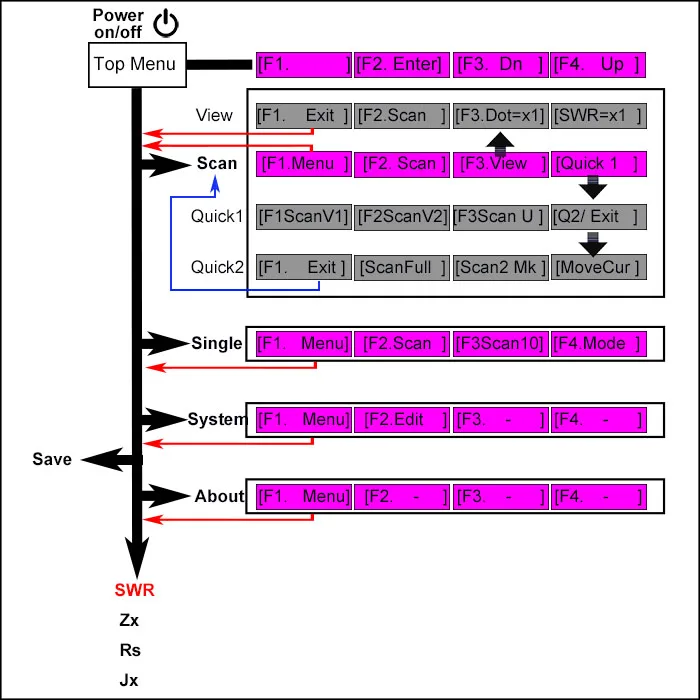

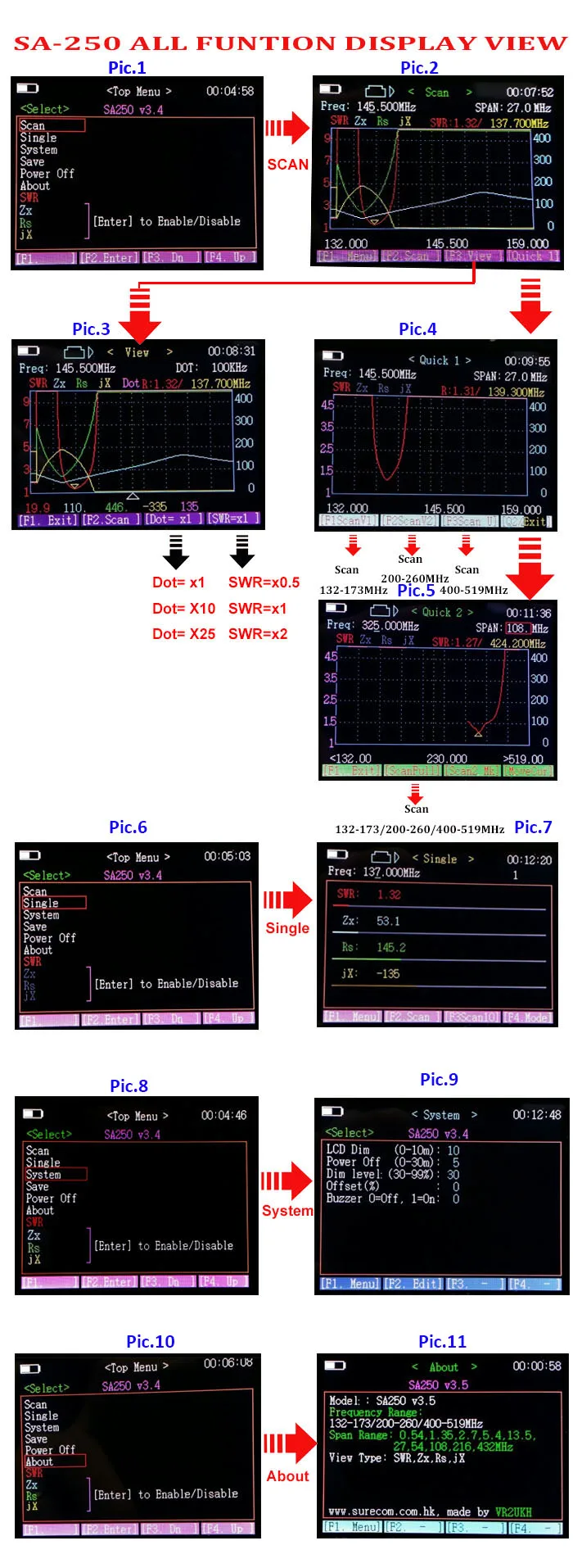

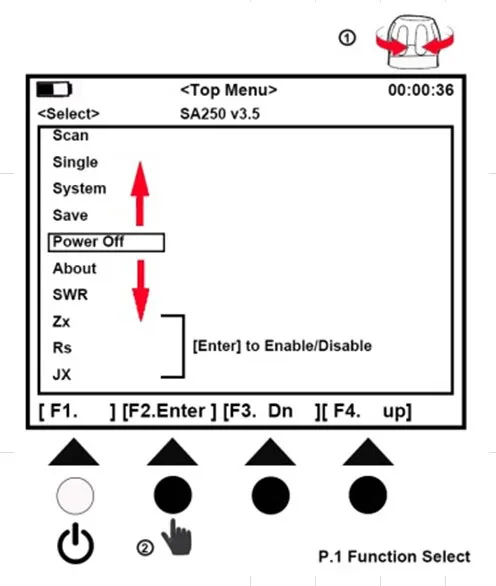

1Function Select (Please see Pic.1)

You can turn the knob select you want function and press [F2.Enter] botton .

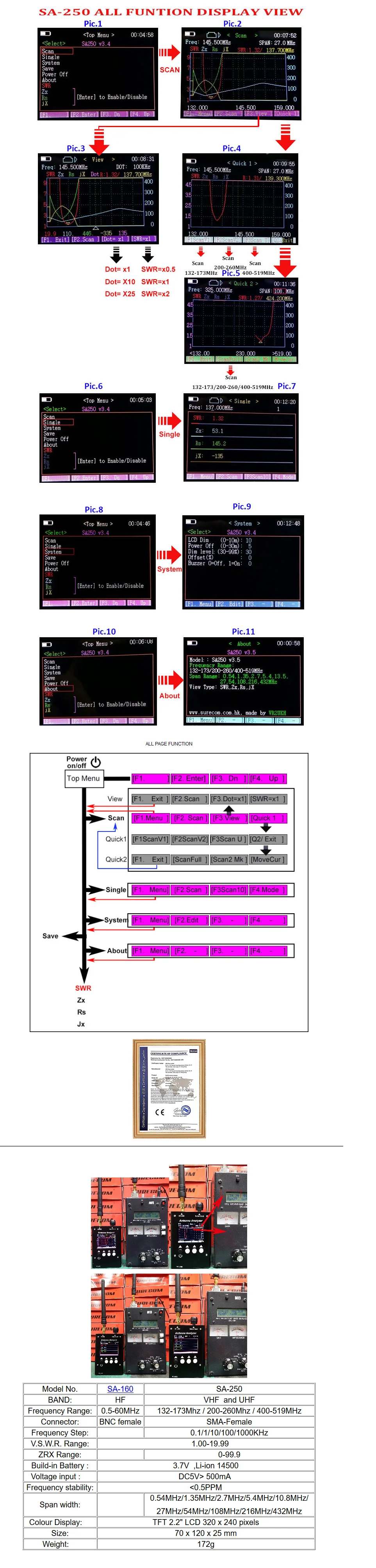

2.0 ANTENNA TEST EXAMPLES (Scan mode): (Please see Pic.2) In the Top Menu screen: Rotary encoder on “Scan”, Press the [F2 Scan] to frequency mode measurement button, enter Scan­ (scan mode) screen. Press [F.2 scan ],button to start the scan operation. During scanning, in order to ensure measurement accuracy, each frequency will stay for short while. one scanning cycle will take about 1-2 seconds. Once SCAN is done, it will enter ”Present” mode (result) screen You have results on the screen : Show the SWR curve only (because default setting SWR curve only , Zx curve, Rs curve, jx curve Disable) You can Enable other curve on the screen: On Top Menu page, Rotary encoder on “Zx”, Press the [F2 Enter] to enable . (Please see Pic.1) Other cure will Disable when Power Off , If want enable in the future, Rotary encoder on “Save”, Press the [F2 Enter] to save setting .(Please see Pic.1)2.1 Move the curso marker: (Please see Pic.3) View the scan frequency point on the curve on each scan of the specific parameters of the measurement results. Press the [F3.View ] button to start the view operation mode. rotary encoder ,the white triangle curve marker is move Dot scale will display on screen, Press bottom change the Dot scale,You have 3 options of Dot scale mode for choose, [Dot =x1][Dot =x10][Dot= x25] . SWR Full scale will display on screen,Press bottom change the graphically plot SWR,You have 3 options scale mode for choose, [SWR=x2 ][SWR= x 0.5][SWR=x1] .2.2 Quick 1 start Scan mode: (Please see Pic.4) Quick view the scan frequency point on the curve on each scan Press the button [Quick 1 ] to start the Quick 1 operation mode .You have 3 options scan mode for choose . Press the button [F1 Scan V1 ] . 132 to 174 MHZ can of the specific parameters of the measurement results. Press the button [F1 Scan V2 ]. 200 to 260 MHZ can of the specific parameters of the measurement results. Press the button [F1 Scan U ] . 400 to 519 MHZ can of the specific parameters of the measurement results.2.3 Quick 2 start Scan mode: (Please see Pic.5) Quick view the Full band scan frequency point on the curve on each scan Press the [Q2 ] button to start the Quick 2 operation scan mode. Press the [ScanFull ] button to start the 3 BAND (132-174,200-260,400-519MHz )Scan operation mode. the measurement results. after you have 2 options mode for choose . Press the [Scan2 Mk ] button to read the best SWR Yellow triangle curve marker .( operation Span 108MHz) Press the [MoveCur ] button ,Nearby the best SWR Yellow triangle curve marker, Move right hand side .Press again move left hand side.3.0 ANTENNA TEST EXAMPLES (Single mode): (Please see Pic.7)In the Top Menu screen: Rotary encoder on “Single”, Press botton “F2” single ­frequency mode measurement button, enter single­ (single scan mode) screen.a) Rotary encoder potentiometer enter the center frequency, the specific reference to the above operation “SCAN” sweep measurement mode descriptions.b) Press the ”F2 scan”, to start the scan for one time .Single ­frequency mode provides a single frequency impedance measurement, the measured frequency of the basic parameters are displayed on the screen. Andto indicate the form of bars and numbers displayed on the screen quickly.The scanning one time , will stop, until you press the F2 Scan button or rotary encoder potentiometer enter the center frequency.In this mode, it can be used as an accurate signal generator, please refer to RF out.

Warning: When the input power is high than dummy provide, this is damage the dummy load.Why use the dummy load?A Dummy Load is a device used to simulate an electrical load during testing. In an RF System a dummy load is used to simulate an antenna. By using a dummy load instead of an actual antenna, the transceiver can be tested and configured without radiating radio waves.The Dummy Load is selected in a way so that it has a similar impedance to the real device that will be connected to the RF System.Not using a dummy load and leaving the port open, can result in some unwanted reflections which can damage the RF System. Also, using a real antenna in the testing phase can result in some unwanted transmission in the lab which will interfere with other devices and technologies being tested.
