Surecom SW-102S Digital VHF/UHF 125-525Mhz SO239 Connector Power & SWR Meter (SW102-S)

Surecom SW-102S Digital VHF/UHF 125-525Mhz SO239 Connector Power & SWR Meter (SW102-S)

V.S.W.R. meter Introduction
VSWR. Forward and reflected power direct digital readout, without any calibration.
Maximum measurable power range up to 120W.
low insertion loss (0.3 decibels or less) structure allows it to be permanently connected.
Build in Frequency counter .

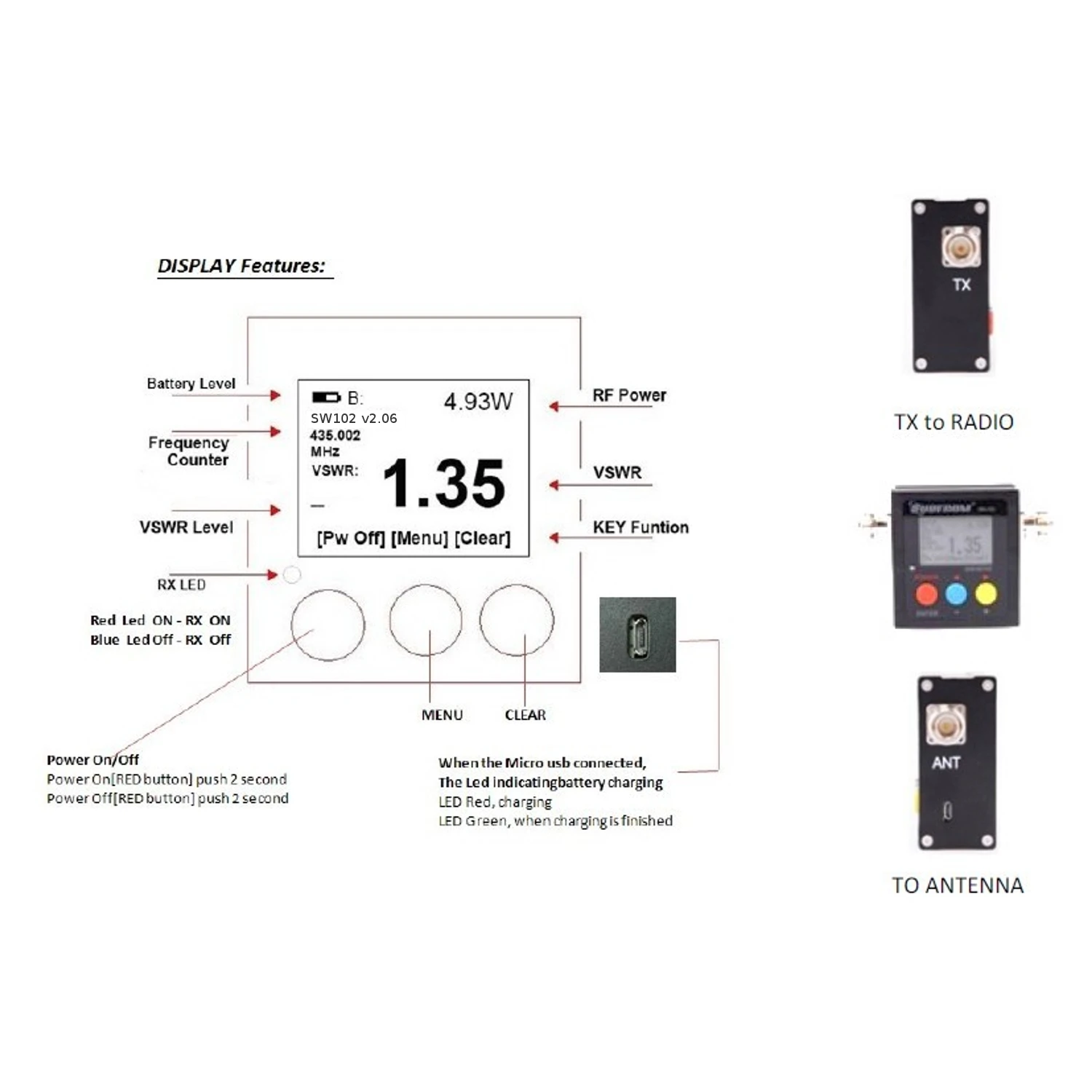

All Funtion display ( Frequency counter ,Power watt , SWR ,FW,RW,Battery Level)

Feature & Specification
Frequency range: 125 – 525MHz
Measurable power range: 0.5 – 120W(+-0.5%)
Input read frequency counter (must be < 0.5 W)
Maximum power: 120W
Impedance: 50Ω
Size: W 76 X H 77 X D35 mm.
Weight: < 220 grams
Battery : 3.7V Li-ion Rechargeable Battery

Interface: SO239
Feature & Specification (for version 2.02)
MAX. Power in:120 W (Measurable power,Radio must be ANALOG)
V.S.W.R: 1.00~19.99
Frequency Ranger：COVER : 125MHz~525MHz
Insertion Loss：< 0.15dB(VHF) , < 0.25dB(UHF)
Temperature：0℃~60℃
Frequency counter：Yes ( TX input must be minimum 0.5W + – 0.5%)
Battery Display：Yes
Battery Build-in：3.7V Li-ion Battery
Auto Power Off：1-9 mins
Size：66*68*37 (mm)
Charger in：5V (micro usb)
Backlight：AUTO OFF
Interface (in and out )：SO239
Weight：220g (include battery)
