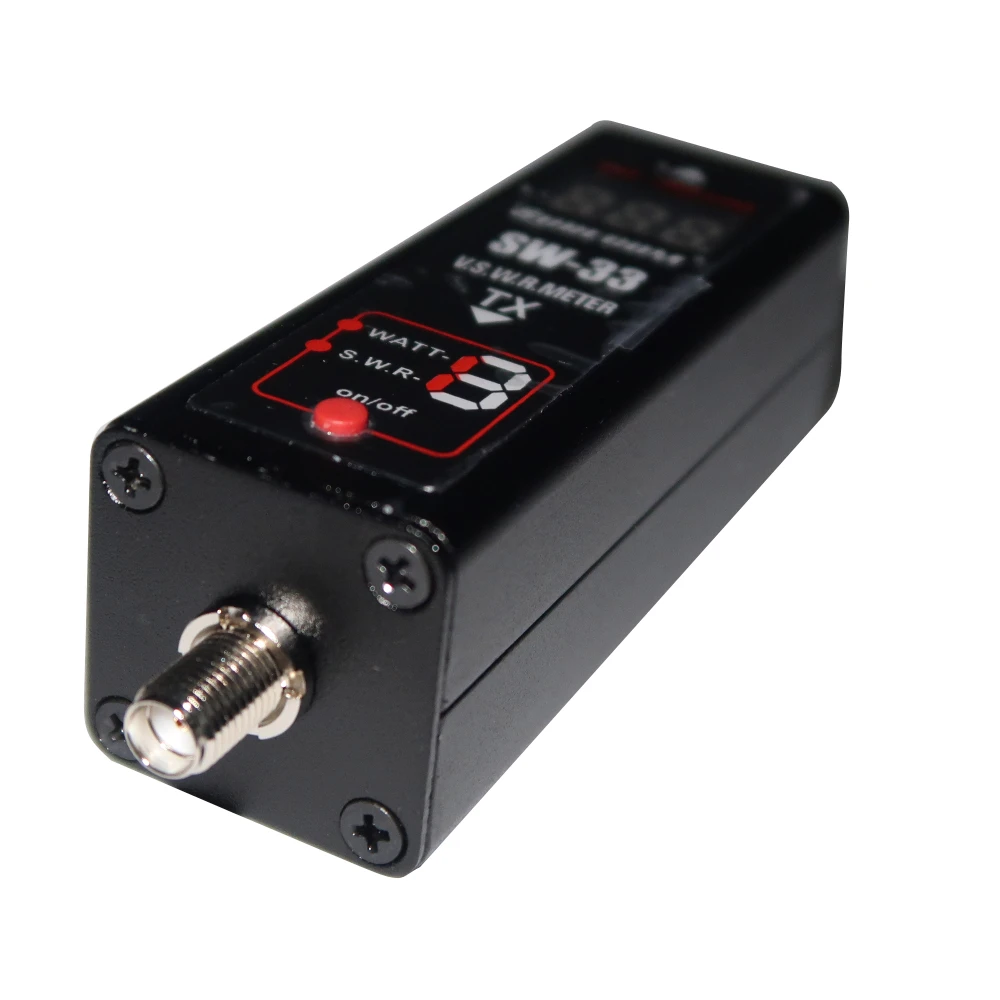

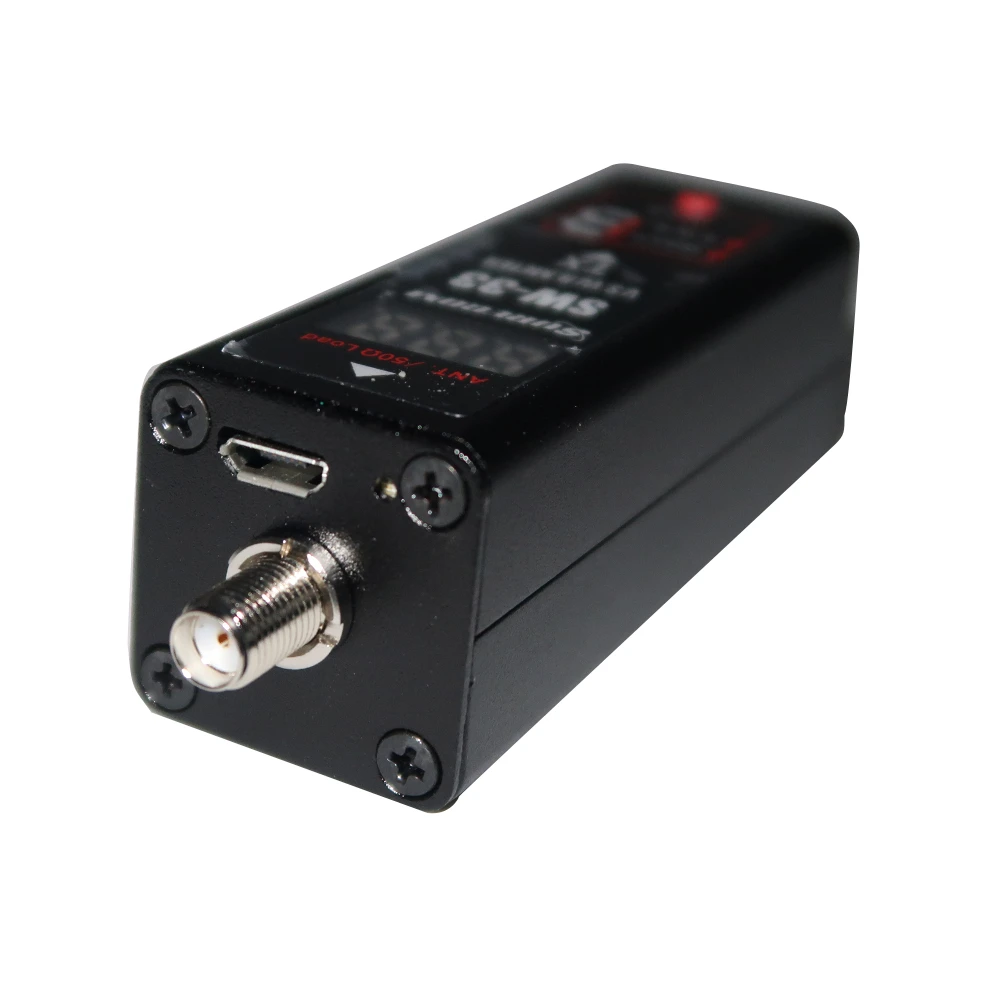

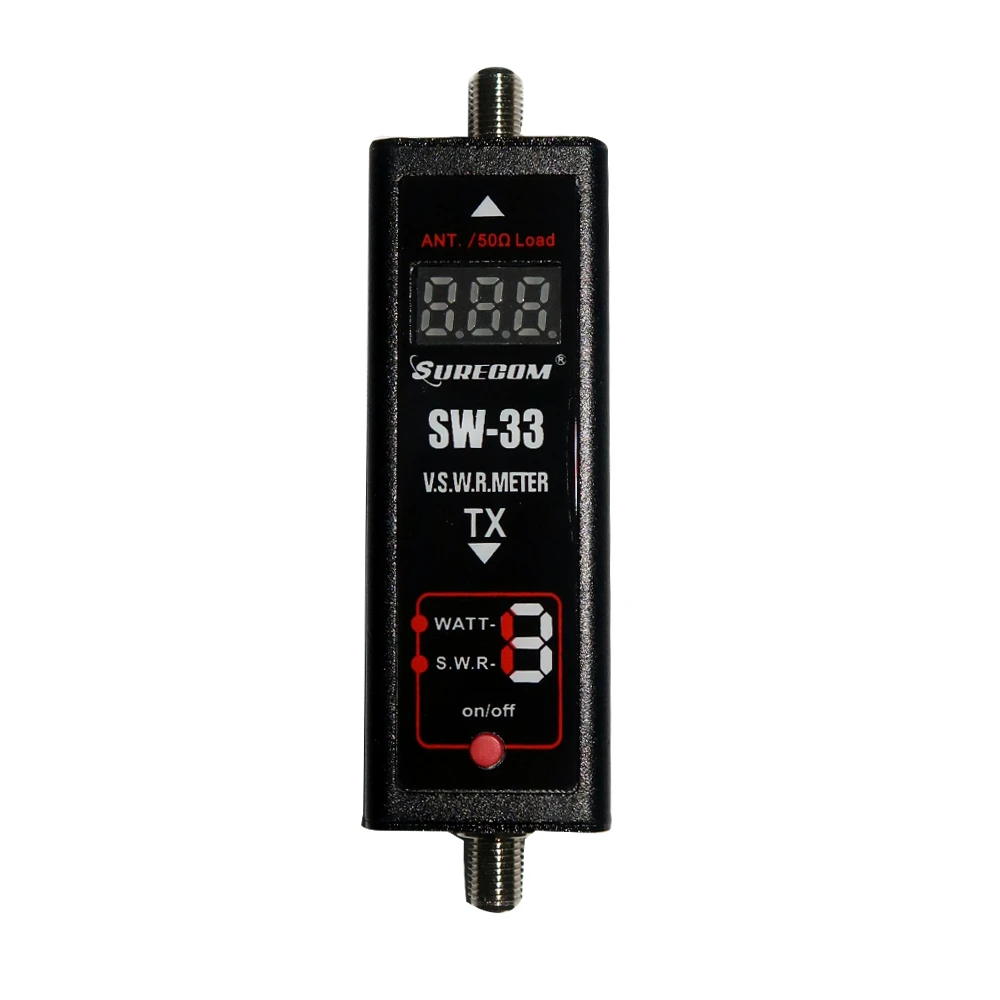

SURECOM SW-33 markII 125-520 Mhz Mini Digital VHF/UHF Power & SWR Meter for Walkie Talkie for Two Way Radio

SURECOM SW-33 markII 125-520 Mhz Mini Digital VHF/UHF Power & SWR Meter for Walkie Talkie for Two Way Radio

Features:

1 VSWR. Forward power direct digital readout, without any calibration.

2. Maximum measurable power range up to 100W.

3. 3 seconds check your antenna SWR , also check your radio RF power watt.

4.Easy to install handheld Radio Specifications: Measurable power range: 0.1-100W Maximum power: 100W Accuracy: mean + / – 5% * Not for the DMR digital radio.

Specifications:

MAX. Power in：100 WATT

V.S.W.R：1.00~19.99

Frequency Range：COVER:125MHz~525MHz

Insertion Loss：< 0.15dB(VHF) , < 0.25dB

(UHF)Temperature：0℃~70℃

Battery Build -in：Li-ion Battery

Size(WHIT OUT SMA：25*25*60 (mm)

Power in：5V (micro usb)

Interface (in and out )：SMA female

Impedance: 50Ω

Weight：160g

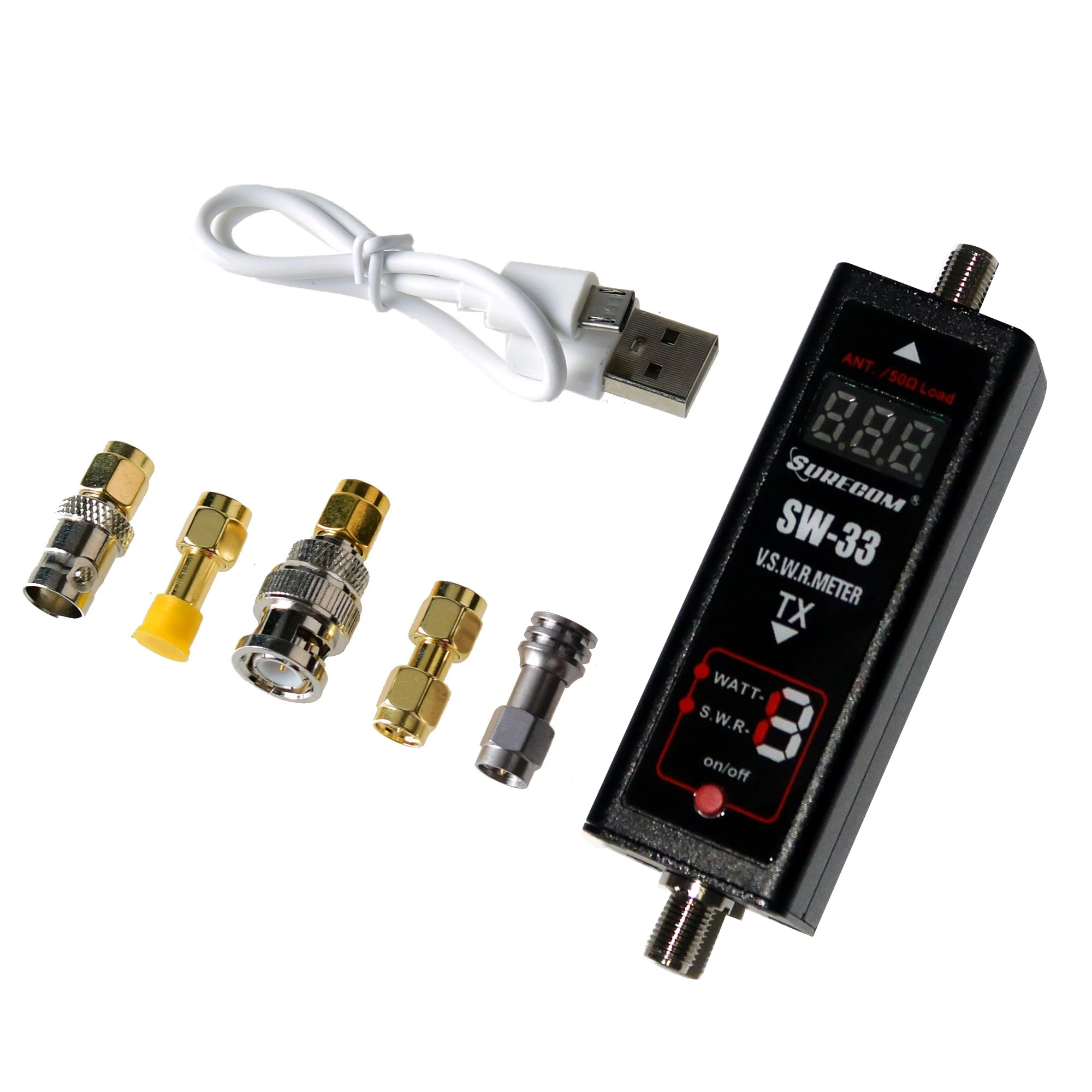

Package Contents

1x SW-33 markII SWR/POWER METER
1x English User Manual
1x USB charger cable
1x USB AC adapter 100-240V

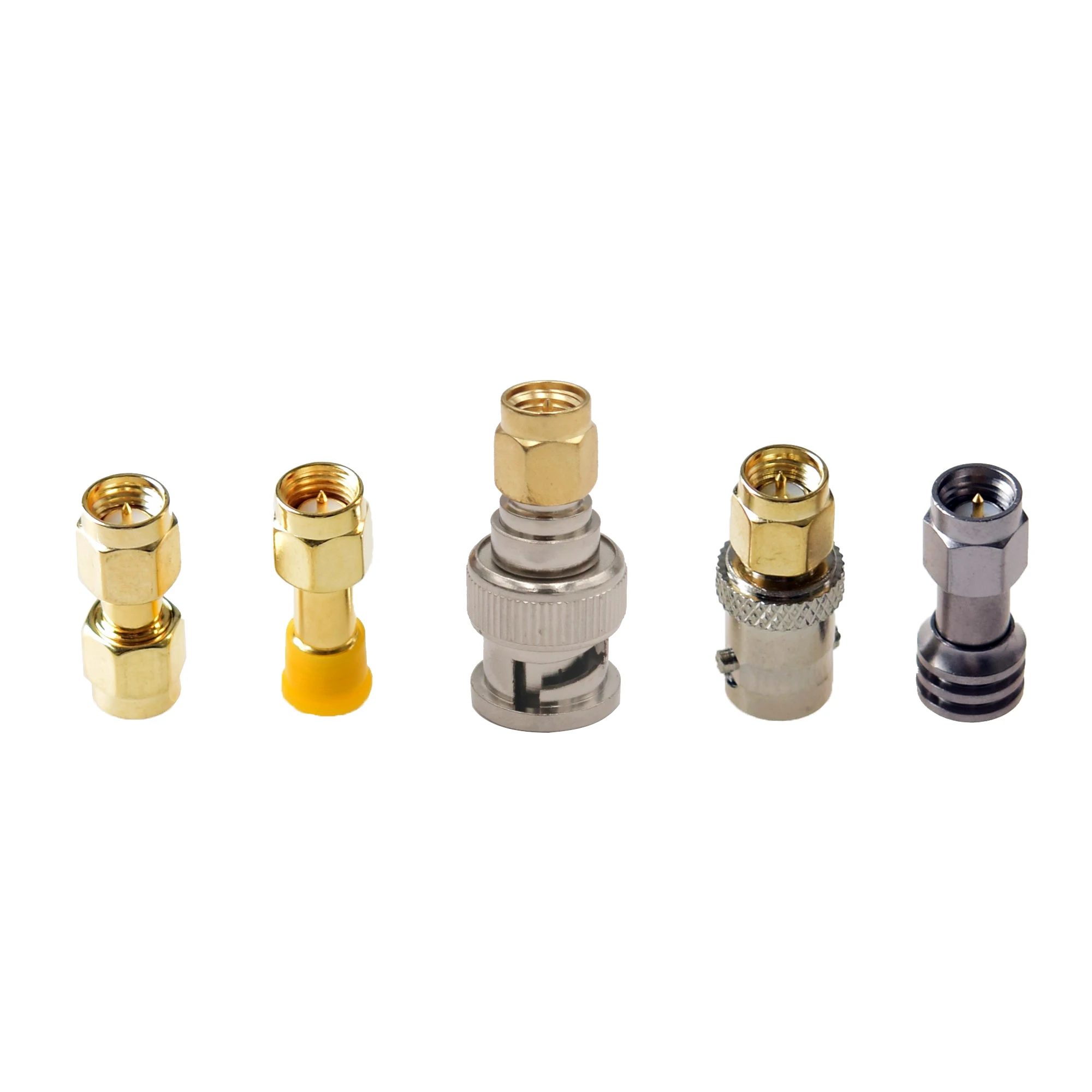

1x SMA male to SMA male Adaptor
1x SMA male to SMA female Adaptor
1x SMA female to BNC female Adaptor
1x SMA male to BNC male Adaptor
1x 5W DUMMY LOAD for testing / other type of 5W dummy load for testing (random)
