Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
Guangdong
|
|
|
Brand Name
|
ZASTONE
|
|
Model Number
|
ZT7500
|
|
Type
|
Vehicle Mouted
|
|
Dimensions
|
340*177*157MM
|
|
Frequency Range
|
0.5MHz-750MHz
|
|
Storage Channel
|
32CH
|
|
Talk Range
|
20-50km
|
|
Walkie Talkie Type
|
Marine&Car radio
|
|
Water Resistance Level
|
IPX-2
|
|
model
|
ZT7500 shortwave radio station
|
|
receive
|
0-750MHZ
|
|
transmit
|
0 MHz -200 MHz
|
|
modulation type
|
CW LSB USB AM FM WFM DIGI
|
|
Transmitting power
|
20W shortwave 7W VHF
|
|
modulation mode
|
A3E AM J2E LSB F3E AIA
|
|
stepped frequency
|
10HZ SSB CW 10/100MHZ
|
|
variable attenuator
|
0-31dB
|
|
antenna impedance
|
50 Ω imbalance
|
|
supply voltage
|
13.8V
|

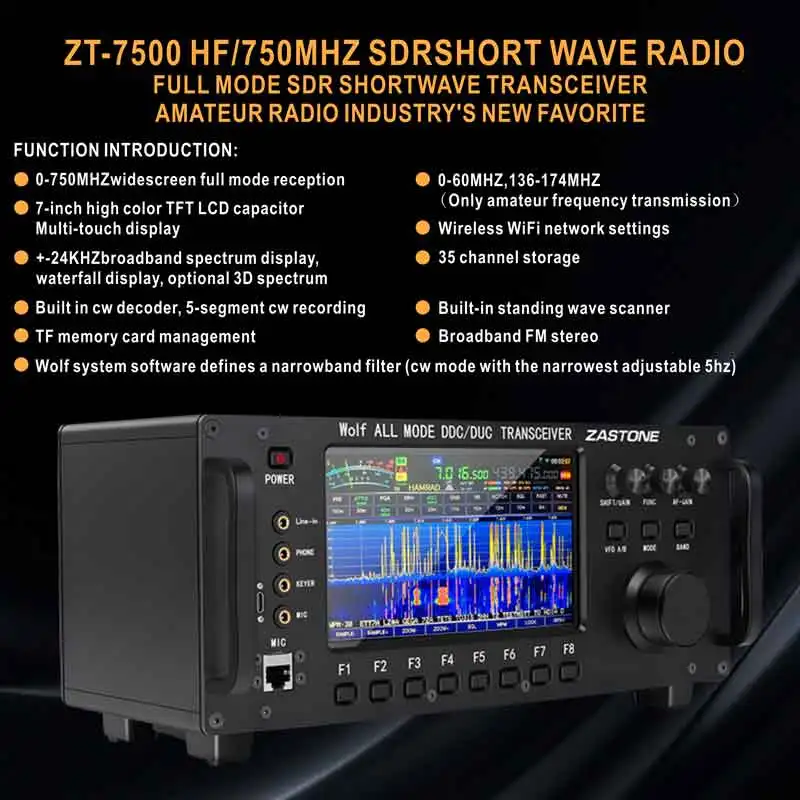

Features:
– The most powerful enchantment! 3D waterfall spectrum diagram

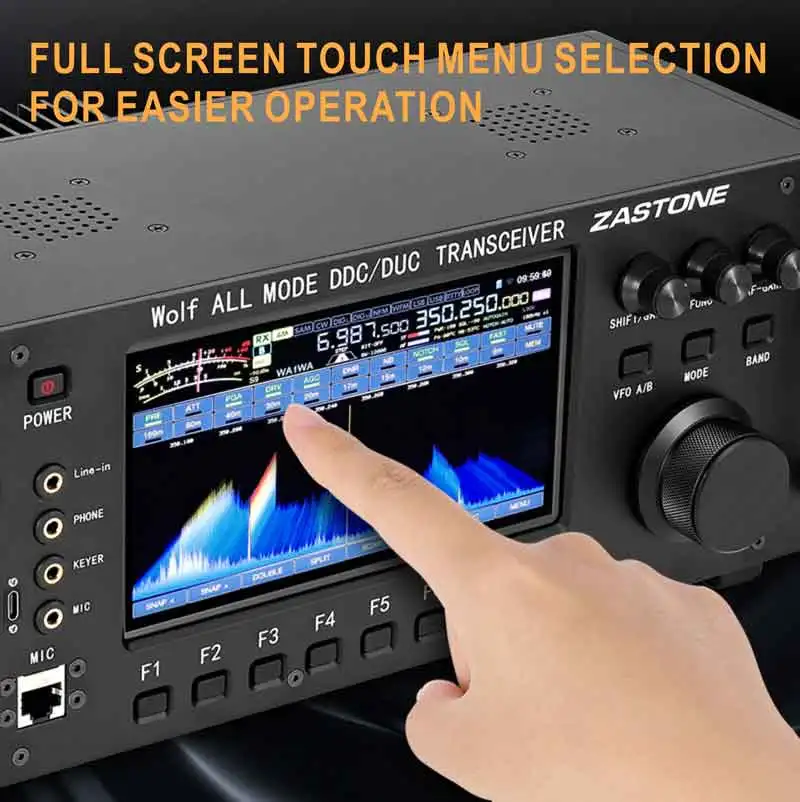

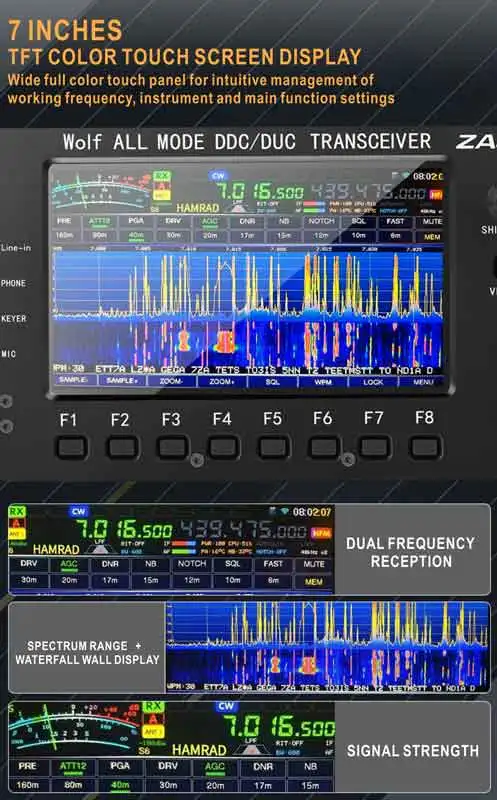

– 7″ multi-point touch screen (capacitive screen) displays clearly under strong light

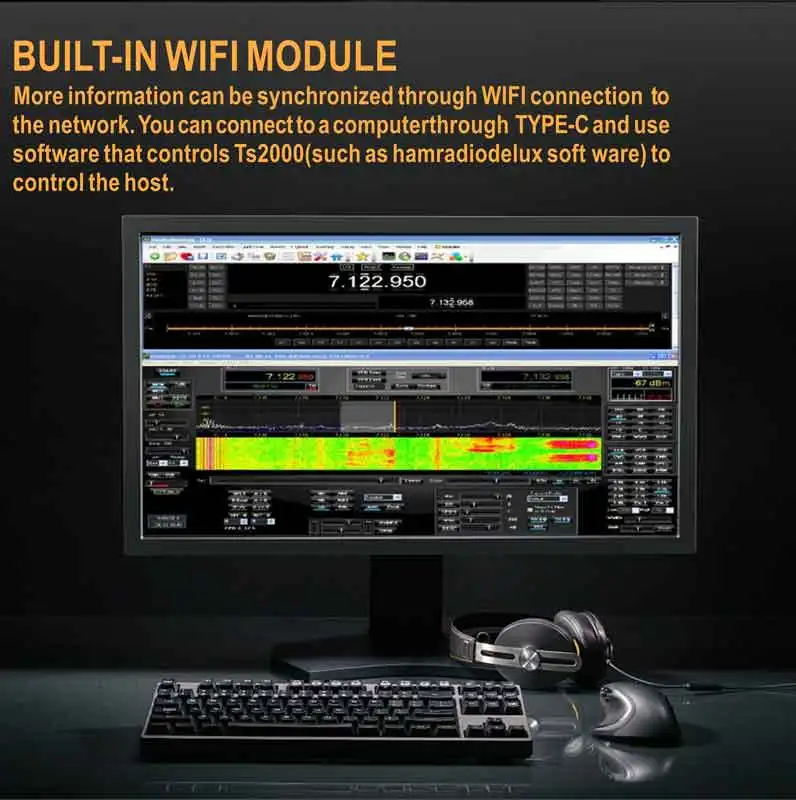

– Built-in Wifi. Online radio is displayed after networking
– Built-in CW decoding and FT8 encode and decode (no additional device required)

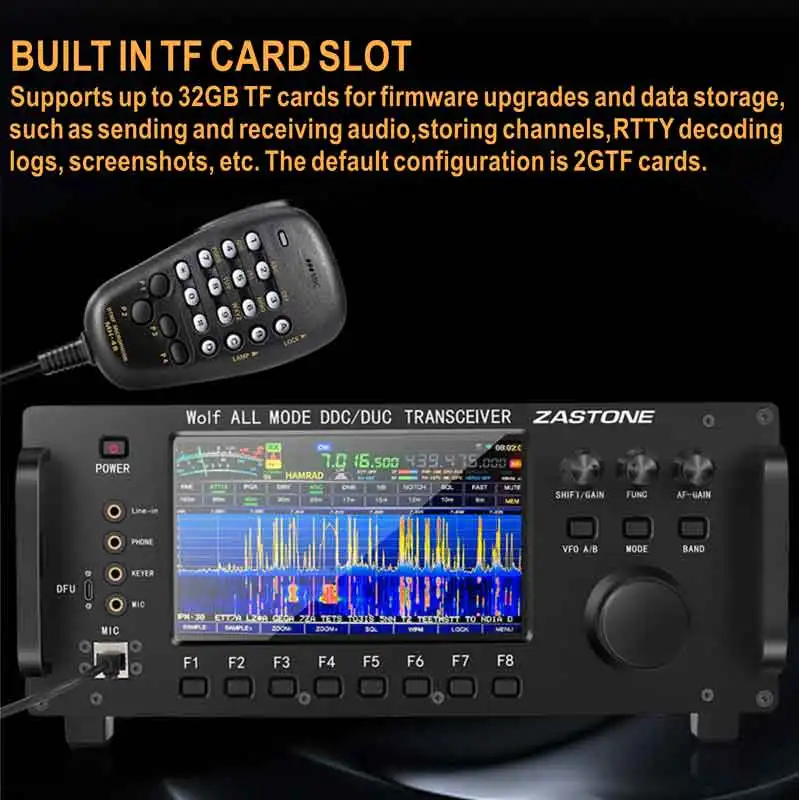

– Built-in TF card! Multiple recordings and playback! Recording call, CW mode with 5 recordings
– Support TF card to upgrade
– Multi-scene mode selection! Fully open source software and hardware can be modified as needed
– Built-in USB sound card for easy connection – All aluminum anodizing housing! Precision design and production
– Built-in antenna tuner (Only for RS-998)
– LNA: Low noise amplifier
– With band-pass filter Specifications:
– RX Frequency: 0.5MHz-750MHz – TX Frequency: 0.5MHz-200MHz (Only Amateur Band)
– Output Power (QRP++DB5AT Version): 20W (HF) and 7W (VHF) (RS-988)
– Output Power (RU4PN/WF-100D Version): 100W (HF) and 50W+ (VHF) (RS-998)

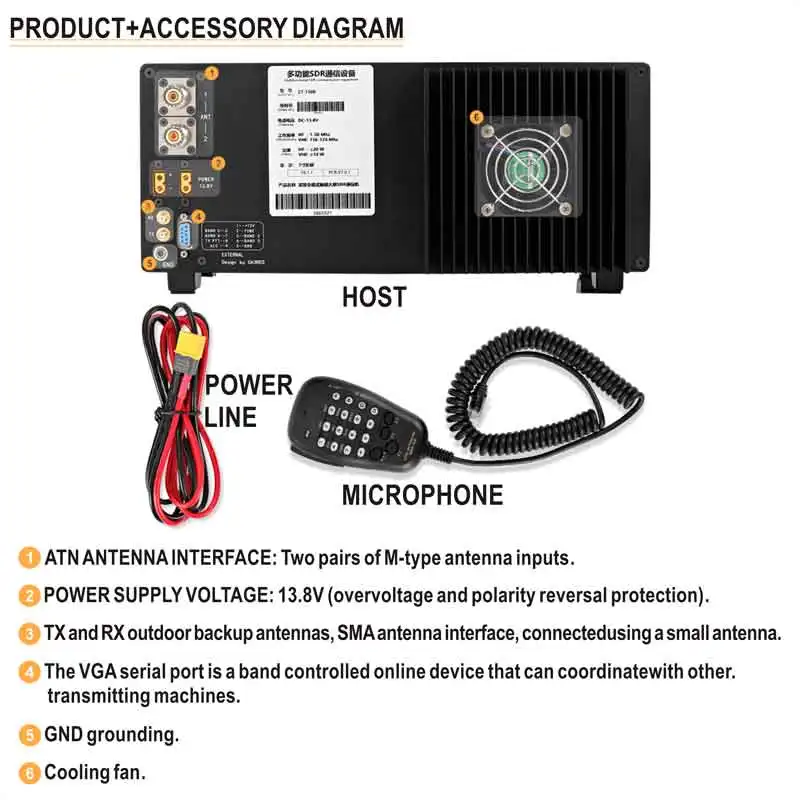

– Antenna Type: Dual Antenna Input – Modulation Type (TX/RX): CW, LSB, USB, AM, FM, WFM and DIGI
– Variable Attenuator: 0-31dB
– ADC Dynamic Range: ~100dB – Supply Voltage: 13.8V (Over-voltage and Polarity Reverse Protection)
– RX Current: ~0.7A (3’2QRP) and 0.9A (7’BIG)
– TX Current: ~2.5A+ (QRP) and 15A+ (BIG)
– Dimensions (WxHxD): 340 x 140 x 135mm/13.4 x 5.5 x 5.3″
– Weight: 2903g/6.4lb
