Covering 0.5-56MHz | Tactical transceiver TX-500MP supports SSB, CW, AM, FM, DIG, built-in automatic antenna tuning.

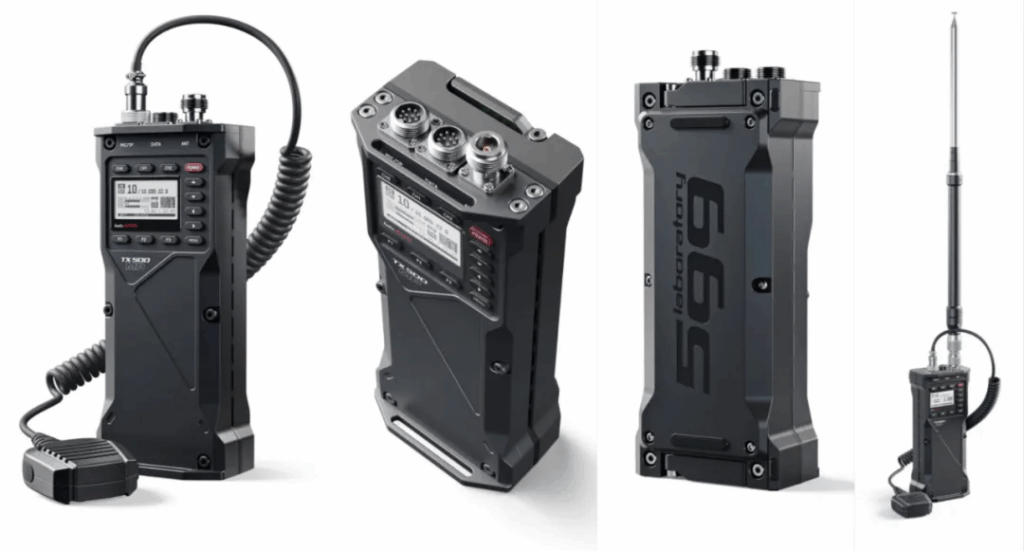

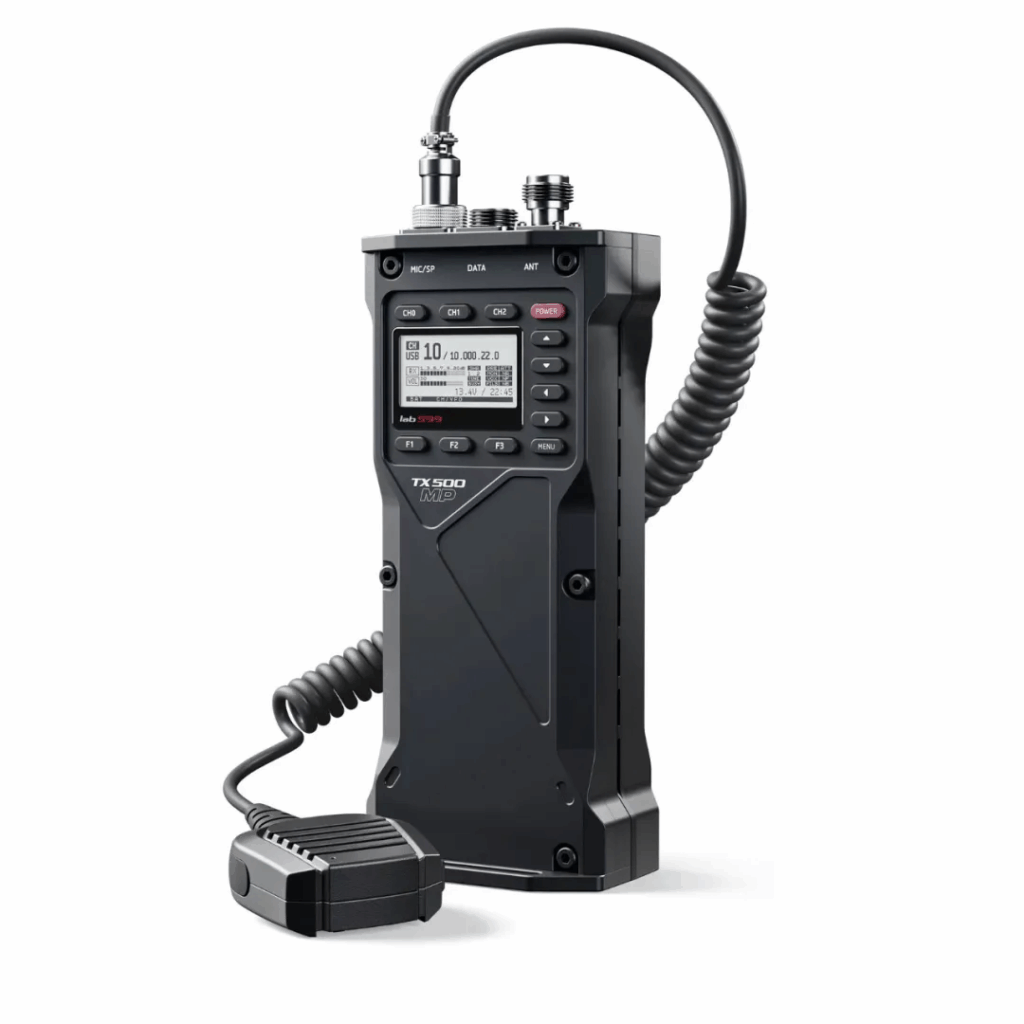

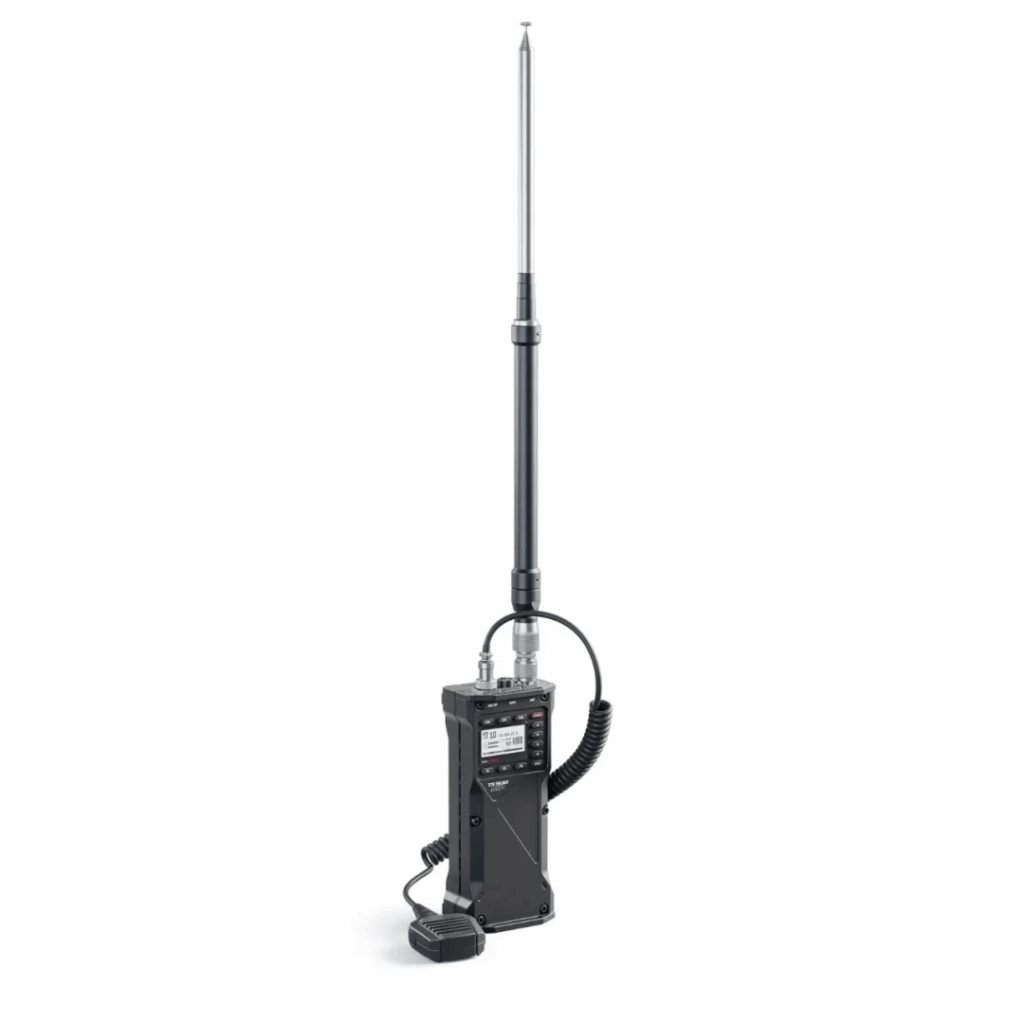

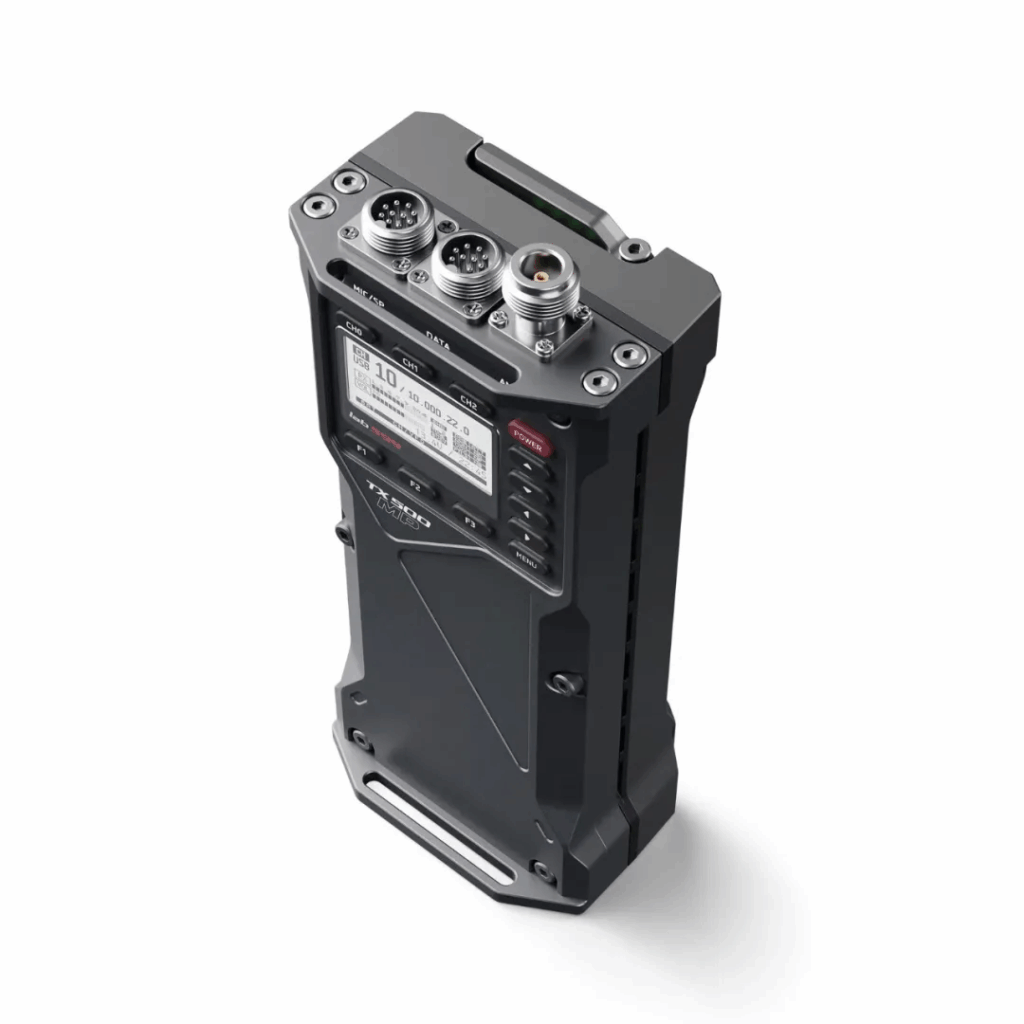

TX-500MP Lab599
The TX-500MP transceiver is a portable high-frequency radio device with a compact backpack design, designed for professionals and enthusiasts who value mobility, operational efficiency and extended autonomy. The transceiver is based on the proven and reliable TX-500 platform.

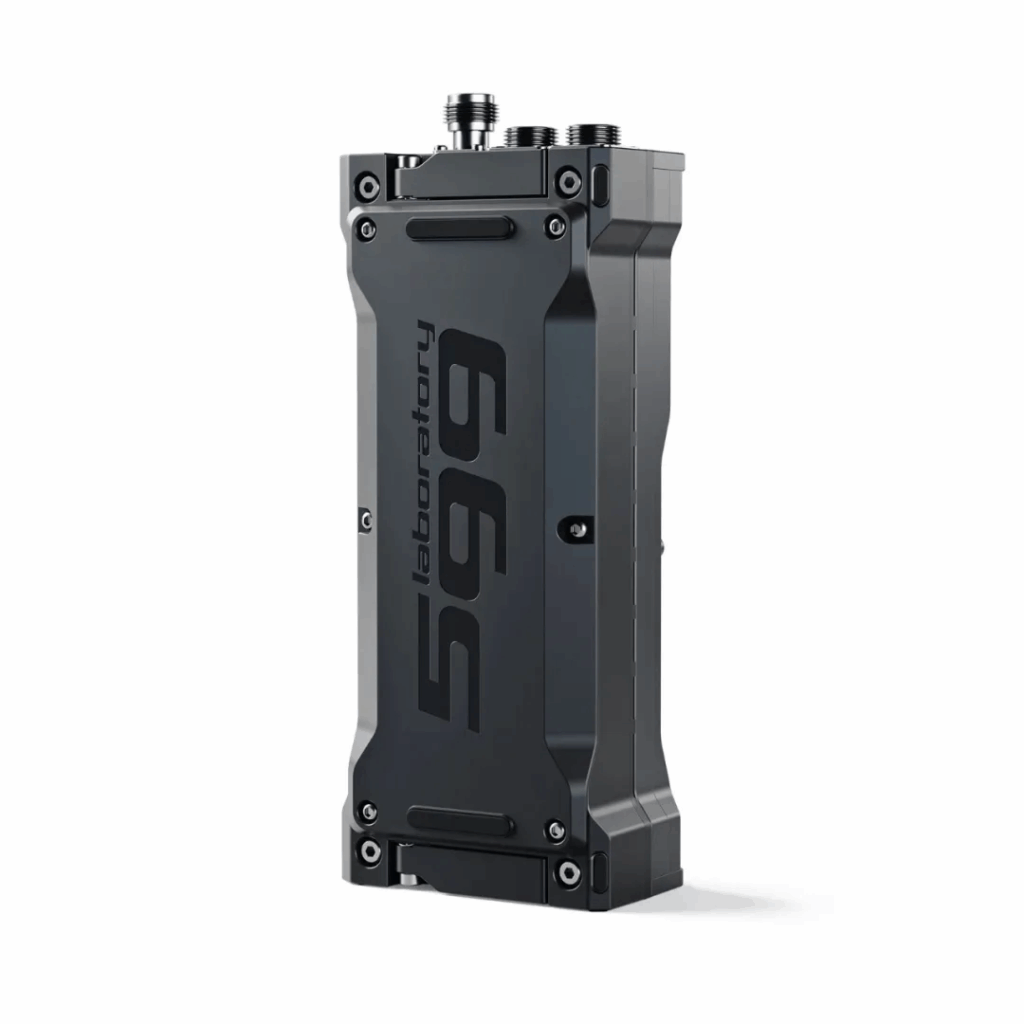

The transceiver is designed to operate in harsh conditions: the durable aircraft-grade aluminum alloy housing is precisely machined to prevent mechanical damage, and the no-through-hole design prevents the ingress of dust and moisture. Its unique low power consumption (up to 100 mA in receive mode) and BP-550 battery pack allow for extended autonomous operation.
With pre-programmed channel modes, the transceiver is versatile and easy to use, making it suitable for both professionals and less experienced users. The built-in automatic antenna tuner ensures compatibility with a wide range of antennas, including portable antennas, allowing for quick preparation for transmission, which is particularly important in emergency situations.
The TX-500MP transceiver is the ideal solution for tactical missions, rescue operations and expeditions to remote or inaccessible areas.
User Manual
General Features:
Frequency range 0.5 – 56.0 MHz;
Supported modes SSB, CW, AM, FM, DIG;
Built-in automatic antenna tuner;
Frequency stability: ±0.5 ppm (-10°C to +60°C);
High performance 32-bit floating point DSP processor;
Power consumption in receive mode – up to 100 mA
(screen backlight, no preamplifier, no signal);
External power supply: DC 9-15V, 1 to 3A in transmit mode;
High contrast monochrome LCD display, resolution: 192×96 pixels 192×96 pixels;
100 programmable channels (frequency, modulation, etc.);
PC software for channel programming;
Operating temperature range: -10°C to +60°C;
Dimensions (L × W × H): 226 × 90 × 31 mm;
Dimensions with battery pack (L × W × H): 226 × 90 × 62 mm;
Weight (without battery pack): 0.55 kg 0.55 kg;
Weight with battery pack and batteries: 1.18 kg.
Receiver:
Continuous receive frequency range: 0.5 – 56.0 MHz;
Sensitivity (MDS) -136 dBm (nominal, with preamplifier);
Quadrature mixer with downsampling;
Switchable 18 dB low-noise preamplifier and attenuator;
4 fixed digital filters;
Automatic tone noise filter;
Noise suppression and impulse noise reduction;
Audio output for external speaker, nominal power 3 W.
Transmitter:
Transmit frequency range 1 – 30 MHz (with ATU); 45 – 56 MHz;
Adjustable power output: 1 – 10 W (1.5 – 30 MHz); 1 – 7 W (45 – 56 MHz);
Maximum transmit bandwidth: 12 kHz;
Reliable final amplifier with SWR and over-temperature protection;
Carrier suppression: nominal >50 dB;
Harmonic/spurious emissions: >50 dB below carrier;
Speaker microphone with PTT;
2 fixed digital filters;
Digital voice compressor.
TX-500MP Standard Package:
- HSM-500-GX16 Handheld Speaker Microphone – 1 pc.
- AD-511 PWR/DATA/CW Adapter – 1 pc.
- AD-502 CAT-USB Adapter – 1 pc.
- AD-504 Power Cord – 1 pc.
TX-500MP with Battery Option:
- Battery Pack BP-550 – 1 pc.
- Cable UCB-C (C-C) – 1 pc.
