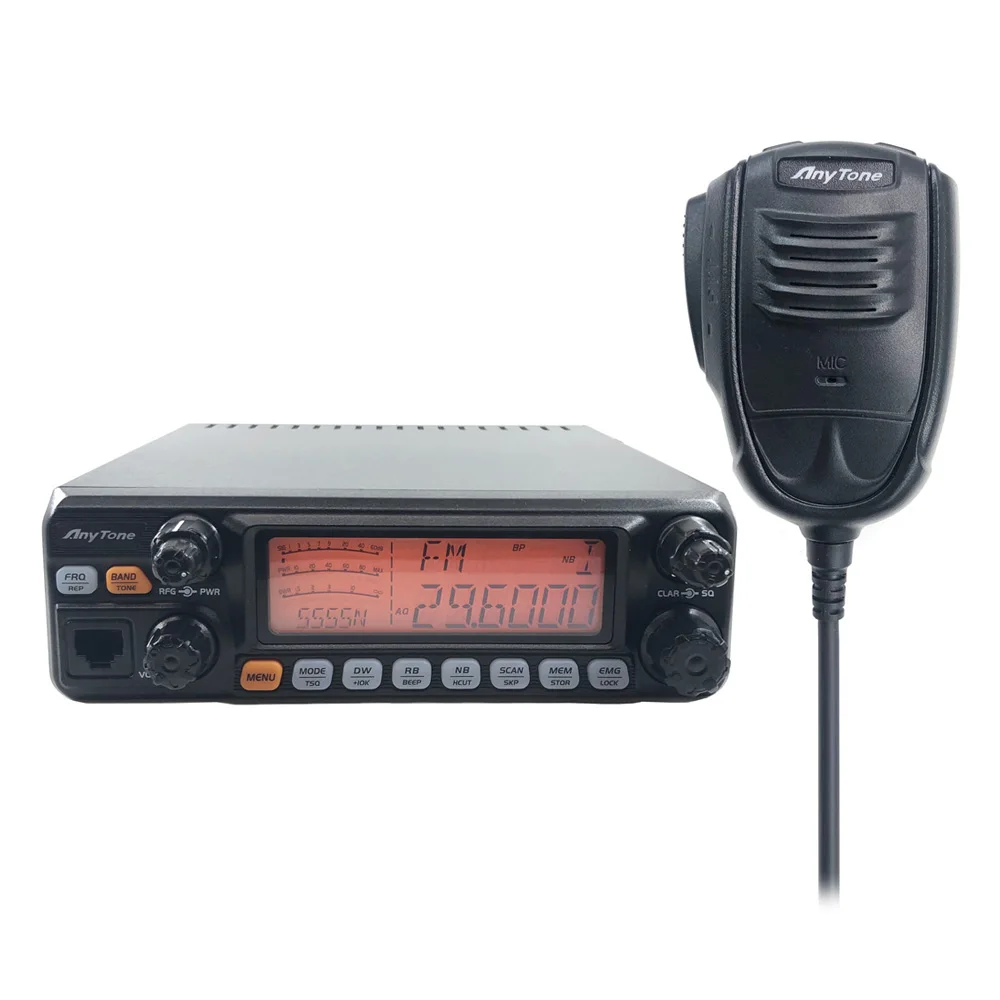

Anytone AT-5555N II CB Radio 25.615 – 30.105 Mhz 40 Channel Mobile Transceive AM/FM/SSB 11 Meter Radio

GENERAL

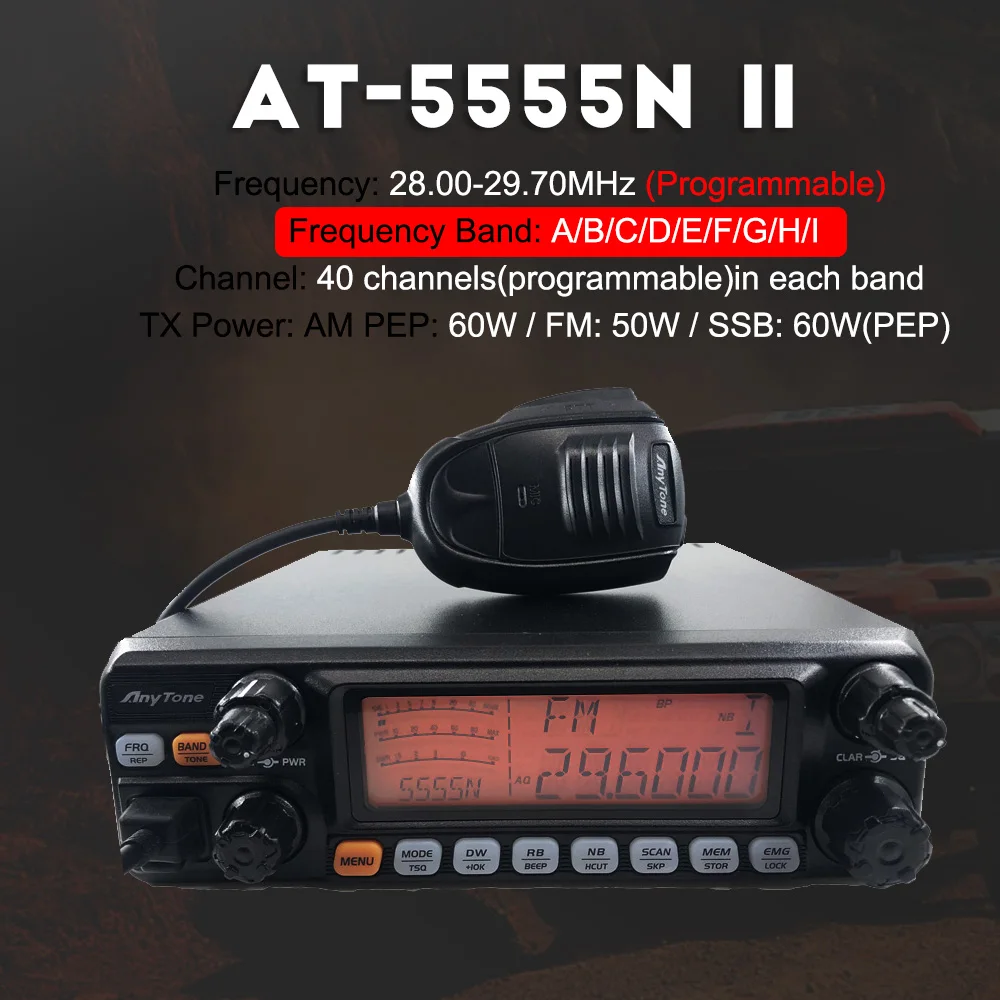

Frequency Range

28.000-29.700MHz(Programmable)

Frequency Band

A/B/C/D/E/F/G/H/I

Channel

40channels(programmable)in each band

Frequency Control

Phase-Locked-Loop Synthesizer

Frequency Step

100Hz,1KHz,10KHz,100KHz,1MHz

Frequency Tolerance

0.005%

Frequency Stability

0.001%

Temperature Range

-20℃to +50℃

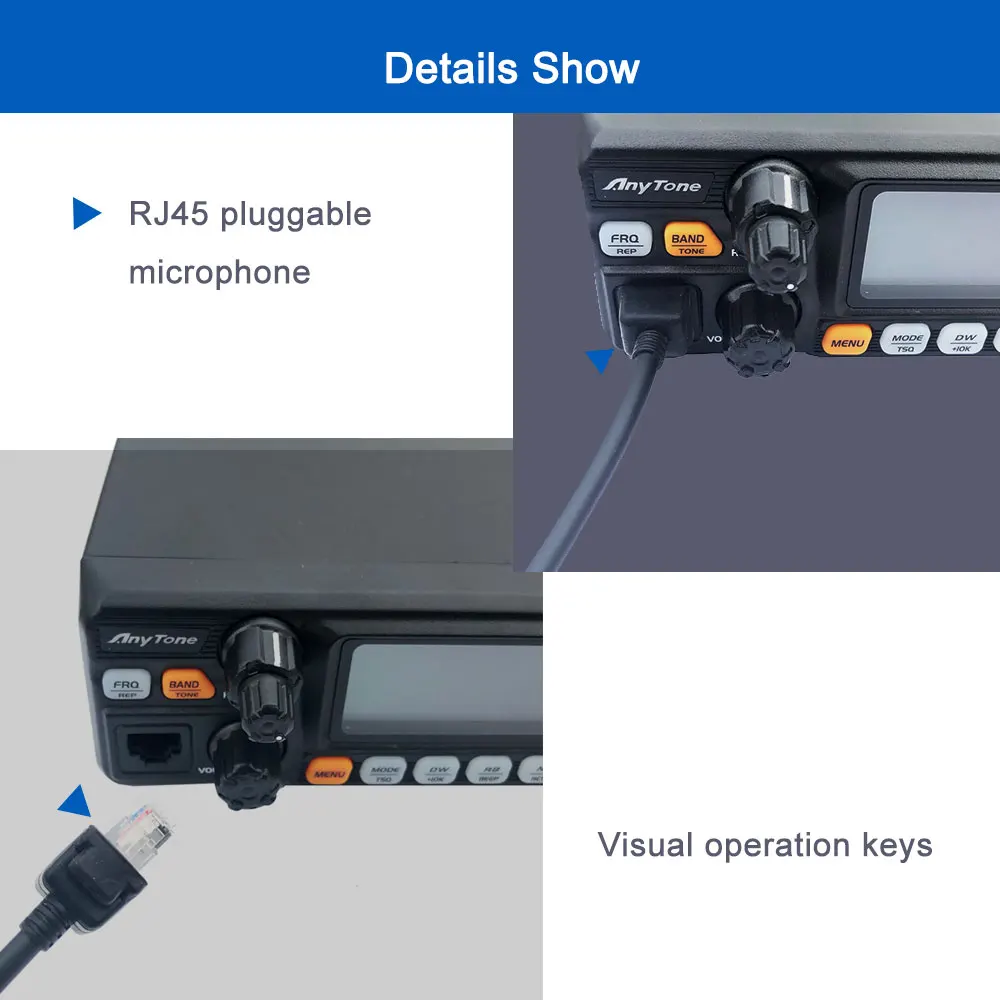

Microphone

with push-to-talk /UP/DN and coiled cord

Input Voltage

13.8V

Dimensions (in mm)

250(W) x280(L) x 60(H)

Weight

1.5kg

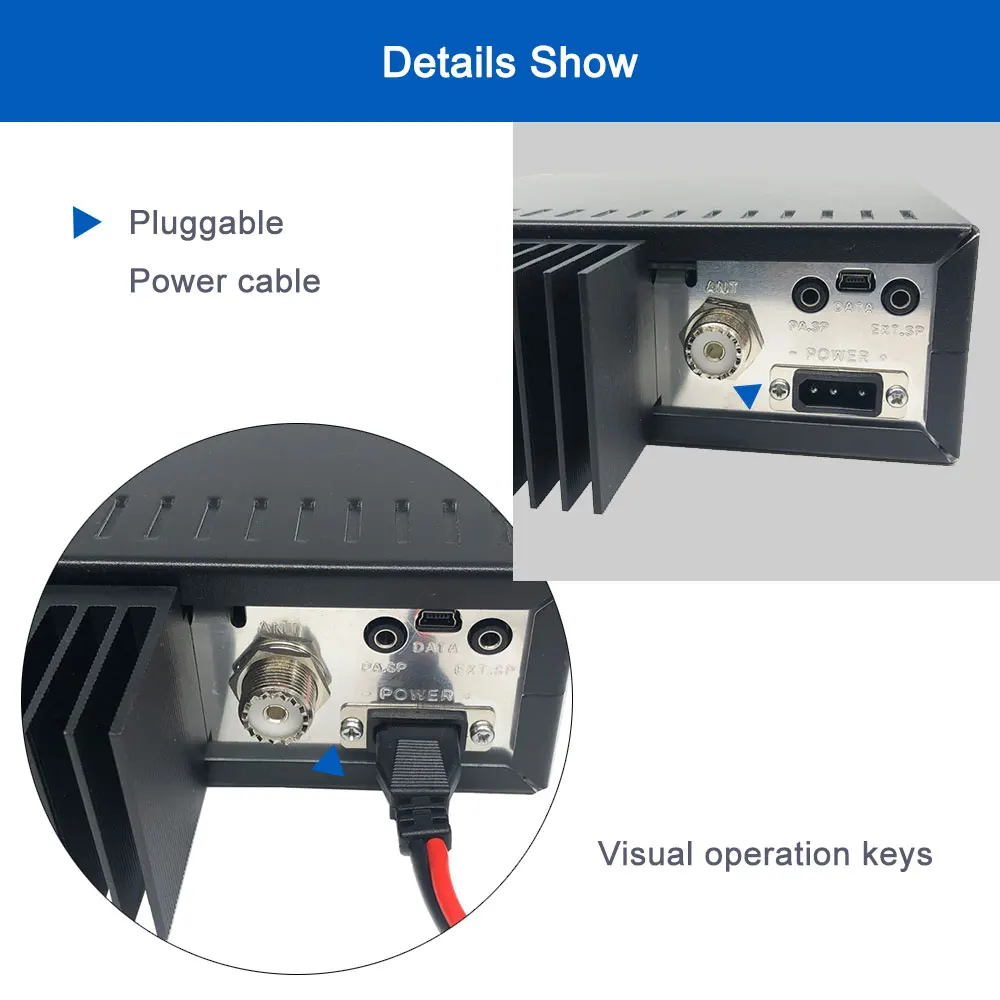

Antenna Connector

UHF, SO239

TRANSMITTER

Power Output

AM: 12W / FM: 30W / SSB: 30W(PEP)

Drain

8A(with modulation)

Modulation

AM/FM/USB/LSB

Inter-modulation Distortion

SSB: 3rd order, more than -25dB; 5th order, more than -35dB

SSB Carrier Suppression

55dB

Unwanted Sideband

50dB

Frequency Response

AM/FM: 300 to 3000Hz SSB: 450 to 2500Hz

Output Impedance

50ohms, unbalanced

RECEIVER

Sensitivity

SSB: 0.25μV for 10dB(S+N)/N at greater than

1/2-watt of audio output

AM:1.0μV for 10dB(S+N)/N at

greater than 1/2watt of audio output

FM: 1.0μV for 20 dB (S+N)/N at greater than 1/2

watt of audio output

Adjacent-Channel Selectivity

AM/FM:60dBSSB:70dB

Image Rejection

More than 65dB

IF Frequency

AM/FM: 10.695MHz 1st IF, 455KHz 2nd IF

SSB: 10.695MHz

RF Gain Control

45dB adjustable for optimum signal reception

Automatic Gain Control(AGC)

Lessthan10dBchangeinaudiooutputforinputs from 10 to 100,000microvolt.

Squelch

Adjustable; threshold less than 1.0μV.

Automatic Squelch Control(only AM/FM)1.0μV

Audio Output Power

3 watts into 8 ohms

Frequency Response

AM/FM: 300to3000HzSSB: 450 to2500Hz

Built-in Speaker

8 ohms, round.

External Speaker(Not Supplied)

8 ohms; disables internal speaker when

connected.
