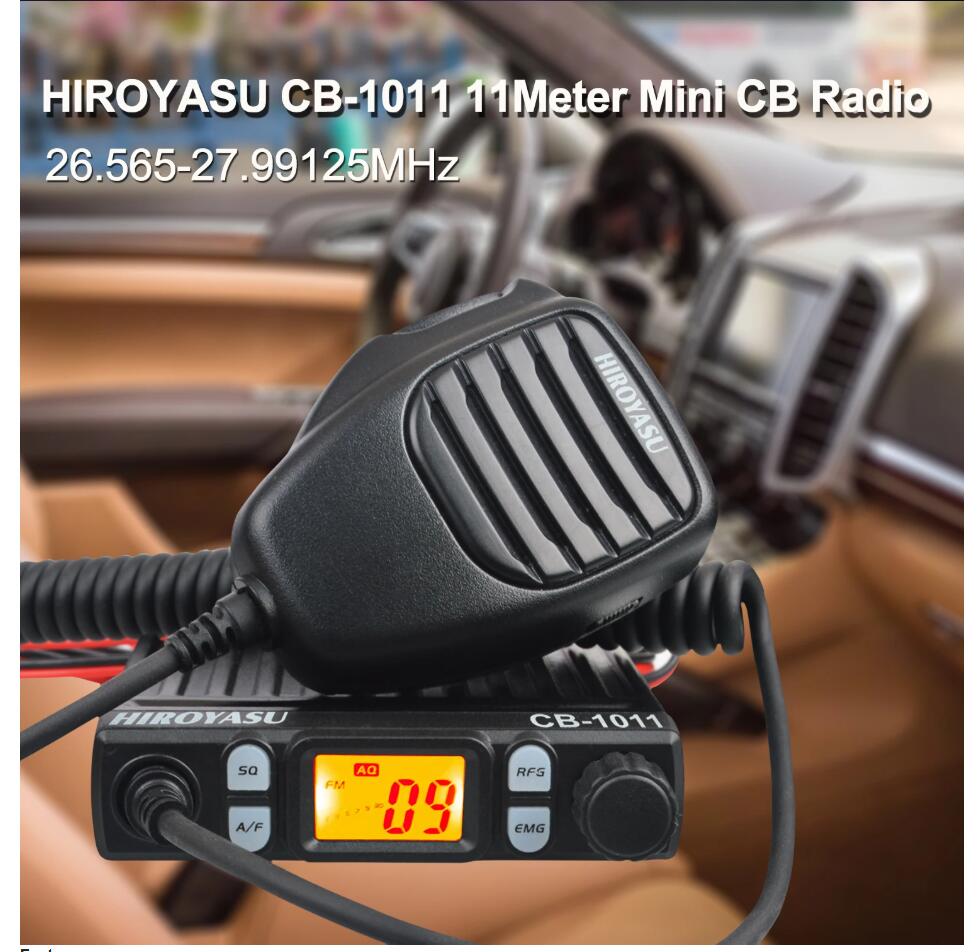

Hiroyasu Walkie Talkie CB-1011 Citizen Bands 26.565-27.99125MHz 11Meter Mini 27MHz FM/AM 8W 40Ch CB Radio For EU PL DE CE UK IN US IT Countries
Photos:
Features:

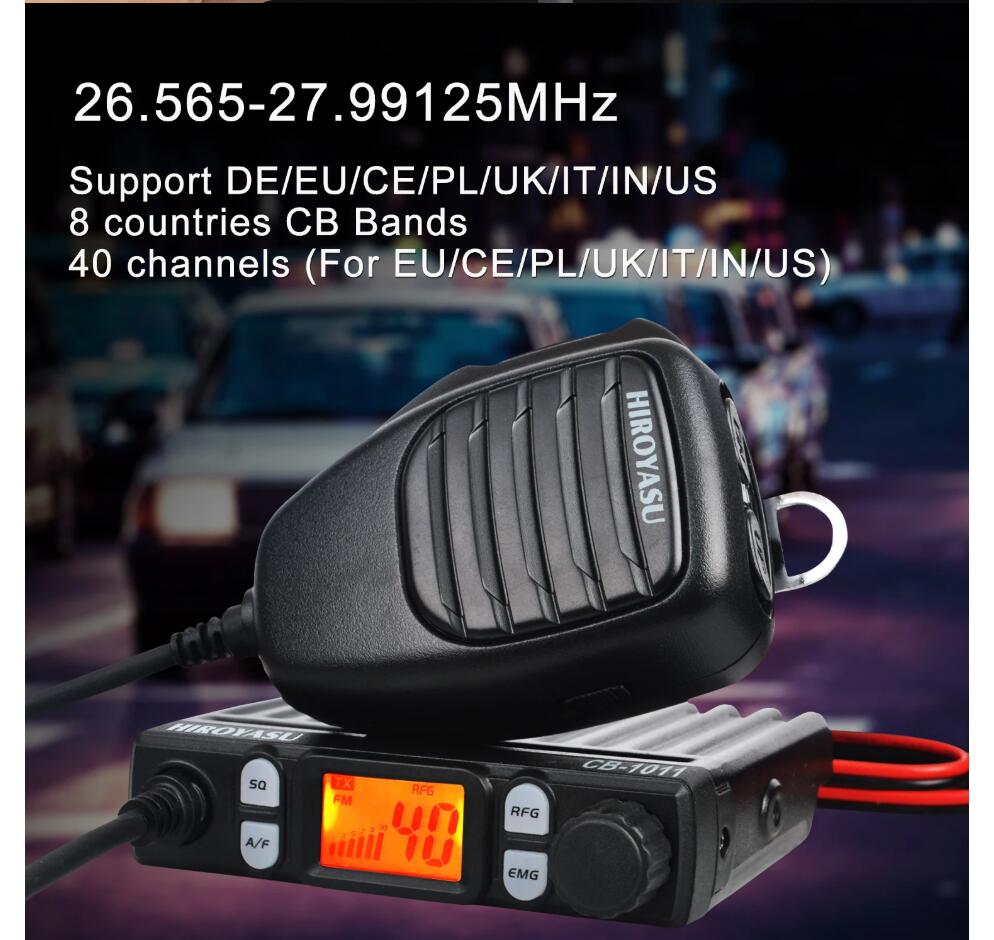

1. Freq Range： 26.565-27.99125MHz

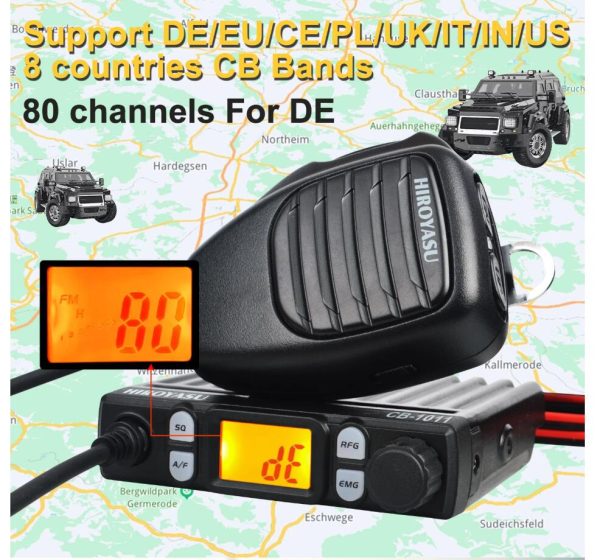

2. Support DE/EU/CE/PL/UK/IT/IN/US 8 countries CB Bands
3.AM/FM Two Modes selection
4.40 channels for EU/CE/PL/UK/IT/IN/US,80 channels for DE

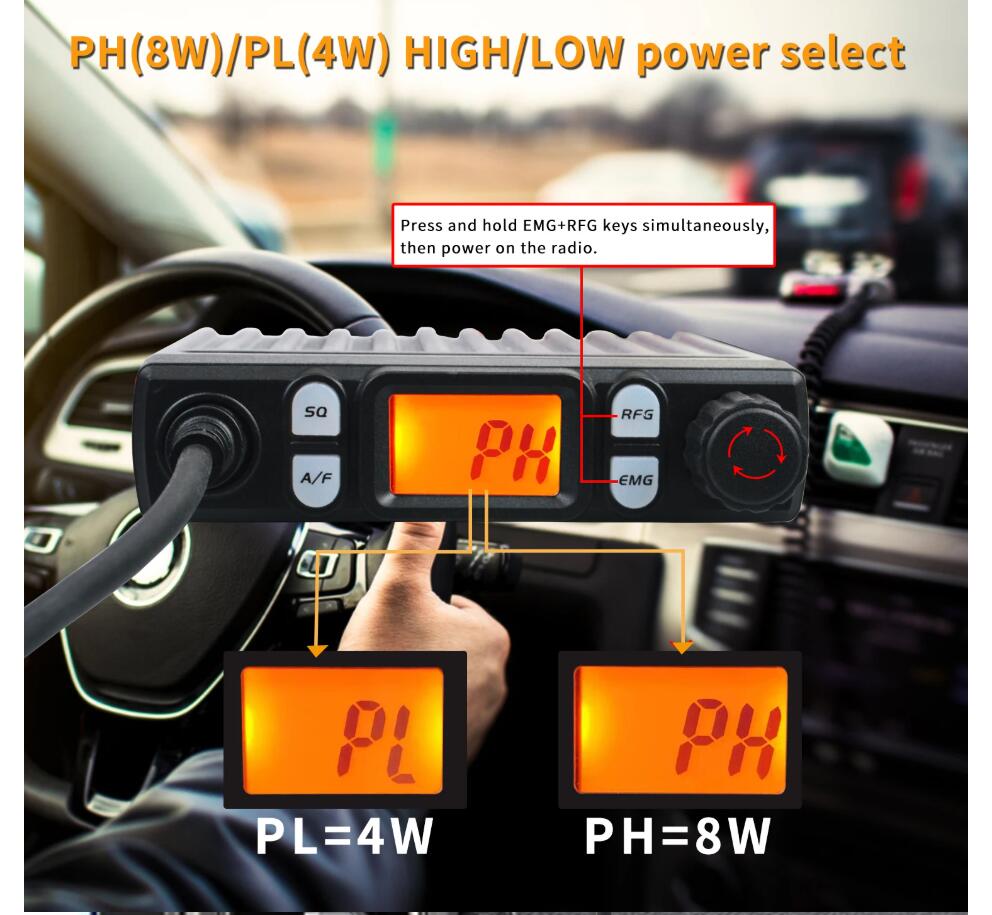

5. PH(8W)/PL(4W) HIGH/LOW power select
6. Manual /Automatic Squelch level control
7. RF Gain Control(RFG)
8. CH9/CH19 Emergency Channel (EMG)
9. Channel Scan
10. Keypad Lock
11. Power by 12V Car Cigarette Lighter
12. Factory Default Reset

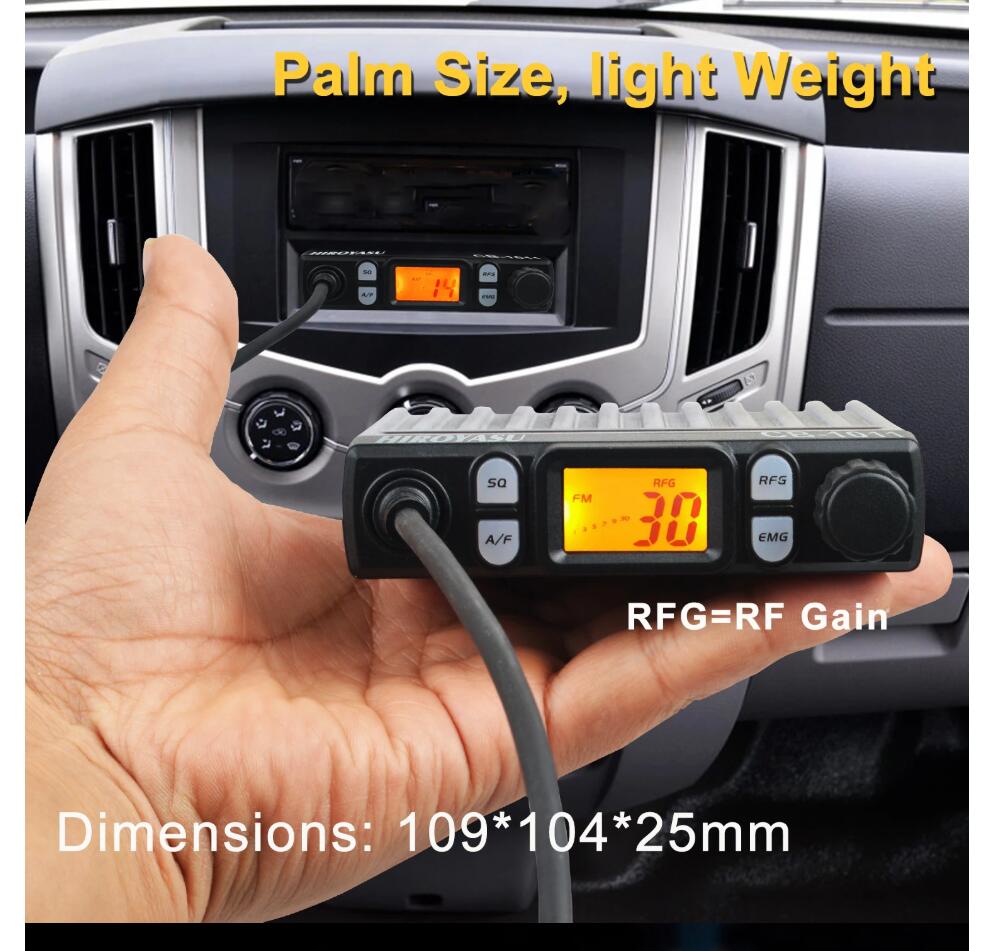

13. Palm Size, light Weight
Specifications:
|
General |
||
|
Modulation Mode |
AM/FM |
|
|
Frequency Range |
26.565-27.99125MHz |
|
|
Frequency Tolerance |
±5.0ppm |
|
|
Input Voltage |
13.8V±5% |
|
|
Dimensions |
109*104*25mm |
|
|
Weight |
421g |
|
|
Frequency Control |
PLL Synthesizer |
|
|
Operating Temperature Range |
-20°c~+50°c |
|
|
Current Drain |
Transmit |
2A Max. |
|
Receiver |
Squelched 0.3A |
|
|
Vol Max. |
0.8A |
|
|
Antenna Connector |
UHF,SO239 |
|
|
Transmitter |
||
|
Power Output |
8 Watts FM/AM |
|
|
Transmission interference |
Inferior to 4nW(-54dBm) |
|
|
Frequency Response |
300-3000Hz |
|
|
Modulated Signal Distortion |
Inferior to 5% |
|
|
Output Impedance |
50 ohms |
|
|
Receiver |
||
|
Sensitivity |
Less than 1uV for 10dB (S+N)/N |
|
|
Image Rejection |
70dB |
|
|
Adjacent Channel Rejection |
60dB |
|
|
IF Frequency |
1st10.695MHz |
|
|
2nd 455KHz |
||
|
Automatic Gain Control (AGC) |
Less than 10dB change in audio |
|
|
Output for inputs from 10 to 50000uV |
||
|
Squelch |
Less than 1uV |
|
|
Audio Output Power |
1 Watts |
|
|
Frequency Response |
300-3000Hz |
|
Package Contains:
1×Hiroyasu CB-1011 CB Radio bodywith Microphone speaker and DC 12V Input cigarette Power Cable
1× Mounting Bracket
1× Microphone Hanger
2× Adjusting Screws
4× Screws for bracket
2× Pads for bracket
2× Screws
1×Spare Fuse
1× User Manual
