2025 New Arrival Quansheng TK11 Taiko Kong AM SSB FM NOAA 10W Two way Radio Dual Receiving Spectrum analyzer Magic Voice 3Colors

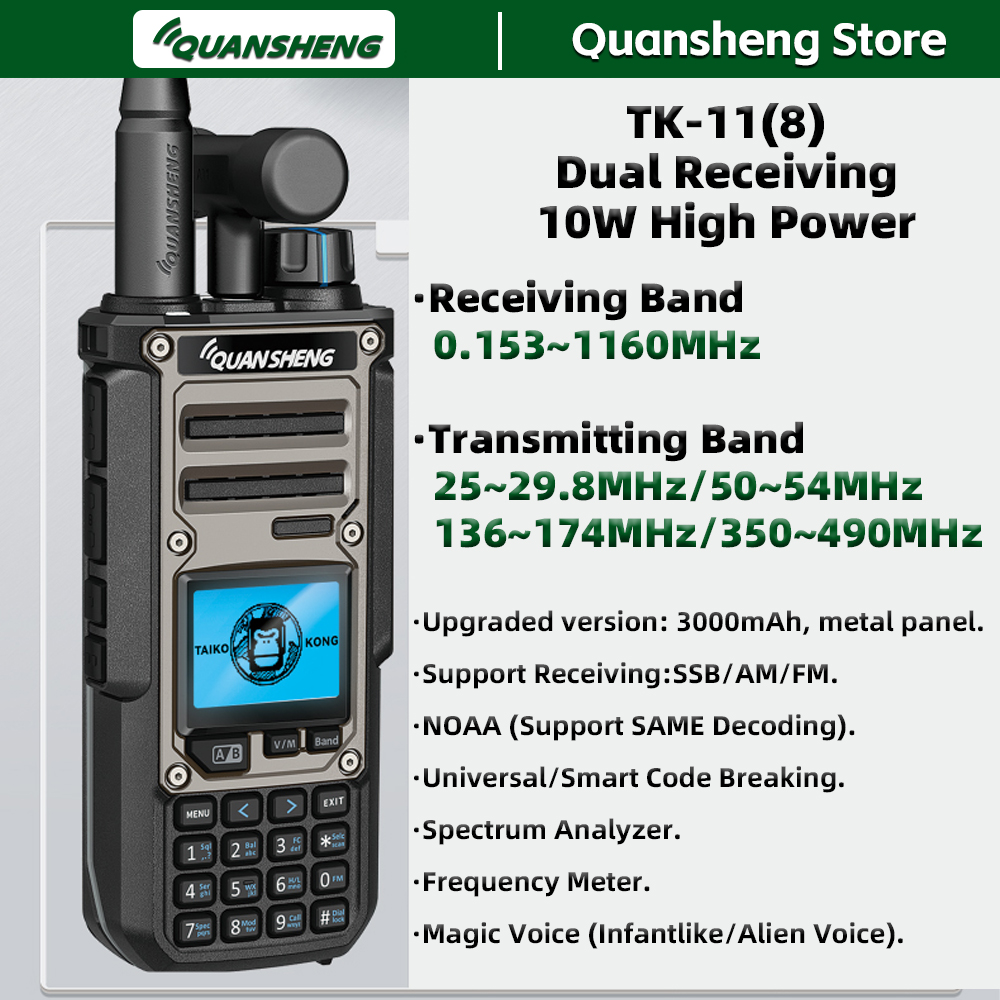

Quansheng TK-11 Portable Radio with SSB /AM /FM/DSB Receiving、NOAA(Support SAME decoding) !!
1.High Gain Antenna 50/144/430Mhz, Highly sensitive LW/MW/SW antenna , Shortwave 27M antenna (optional)
2.Dual receiving: A walkie talkie that can simultaneously receive two audio signals, both of which can be adjusted in volume.
3. Universal /Smart code breaking: Self study mode, expert mode, general mode;
4. Magic Voice(Infantlike、 Alien Voice)
5. Spectrum analyzer, act as Frequency Count，Multi-band Transmitting & Receiving, spectrum analyzer,act as Frequency Count

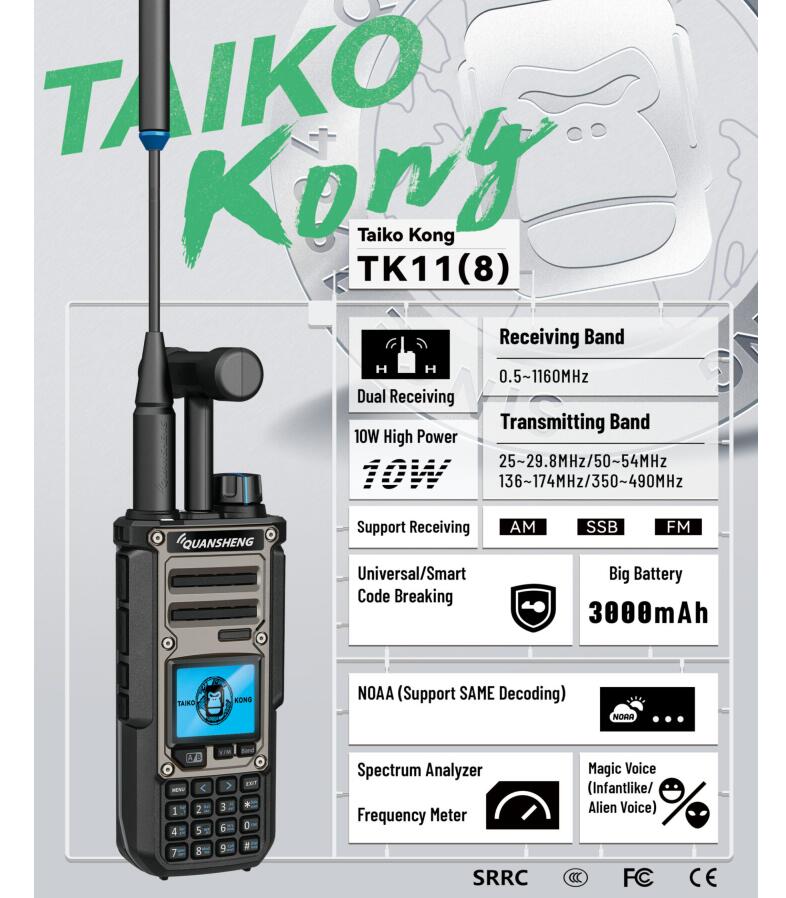

TK = Taiko Kong = Space Kong( in Chinese)
- User-Friendly Interface: Equipped with a 1.44-inch ice blue display and a straightforward keypad layout, the device ensures easy navigation for seamless operation.
- Quad Band operation: Out of the box coverage includes 10m, 6m, 2m, and 70cm.
- attery Life: With a robust battery capacity of 3000mAh, the TK-11 offers extended usage on a single charge, ideal for prolonged operations in the field.
Technical Parameter
Channel Number: 999
NOAA Channel Number: 10
FM Radio Store Number: 32
Voltage: 7.4V
Battery Capacity: 3000mAh
Dimension: 126mm X 58mm X 34.5mm
Weight: 301g
Screen: 1.44-inch ice blue display
Keypad: Front 19 keys – Left 2 PTT keys & 2 shortcut keys
Speaker: 16ohm 1W
Jacklight: Support
Working Temperature: -20c ~60c
Antenna Impedance: 50ohms
Frequency Stability: ±1ppm
Modulation Mode: 16KOF3E(25KHz)
Charging Method: Base Charger/Type-C Charging
ABOUT TX:
Transmitting Frequency Band: 25-29.8MHz / 50-54MHz / 136-174MHz
Output Power: 10W
Emission Current: <=2.5A
Maximum Frequency Deviation: <=5KHz (25KHz) <=2.5KHz (12.5KHz)
Modulation Distortion: <=5%
Stray Emission: <=7.5uW
Adjacent Channel Power: 70dB (25KHz), 60dB (12.5KHz)
Residual Modulation: 40dB
ABOUT RX:
Receiving Frequency Band: 0.15-1160MHz
FM Reference Sensitivity: -121dBm
WFM Reference Sensitivity: -108dBm
AM Reference Sensitivity: -100dBm
Audio Power: >=0.5W
Audio Distortion: <=10%
