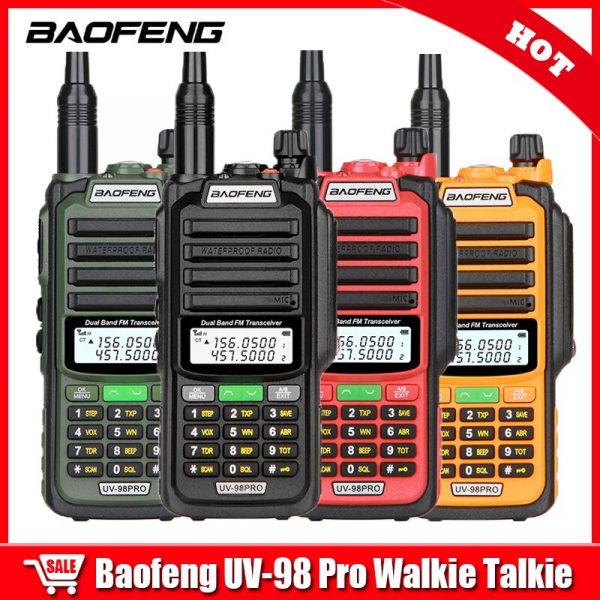

Baofeng UV-98 PRO IP68 Waterproof Walkie Talkie Dual Band FM Radios High Power Long Standby Long Range Two Way Radio 2022 New
|
General |
|
|
Frequency Range |
VHF:136-174MHz UHF400-520MHz |
|
Channel Capacity |
128 |
|
Channel Spacing |
25KHz/12.5KHz |
|
Antenna Impedance |
50Ω |
|
Microphone Impedance |
600Ω |
|
Operating Voltage |
7.4V DC±15% |
|
Frequency Stability |
±2.5ppm |
|
Battery |
8800mAh(Polymer Li-ion) |
|
Compatible With American Military Standard(Mil-STD-810C/D/E) |
|
|
Transmitter(EIA-RS 316B STANDARD) |
|
|
RF Power Output |
8W |
|
Modulation Type |
FM Radio (65.0MHz-108.0MHz) |
|
Modulation Sensitivity |
<15µV |
|
Modulation Distortion |
≤3% |
|
Max Freq Deviation |
<5KHz |
|
Occupied Bandwidth |
≤16KHz |
|
Modulation Feature |
±3dB |
|
Spurious Radiation |
≤7.5μW |
|
Adjacent Channel Power |
≤-65dB |
|
Receiver |
|
|
Sensitivity(12db SINAD) |
≤0.15μ(12dB S/N) |
|
Squelch Sensitivity |
≤0.1μV |
|
Audio Power output |
1W/16Ω |
|
Audio Respond |
-6 |
|
Operation Bandwidth |
>5KHz |
|
Co-channel Rejection |
≥-8dB |
|
Blocking |
≥85dB |
|
Adjacent Channel Selectivity |
≥65dB |
|
Standby Current |
60mA,15mA |
|
Spurious Rejection |
≥60dB |
|
Intermodulation Resistance |
≥60dB |
Package includeds :
1 x Power Charger
