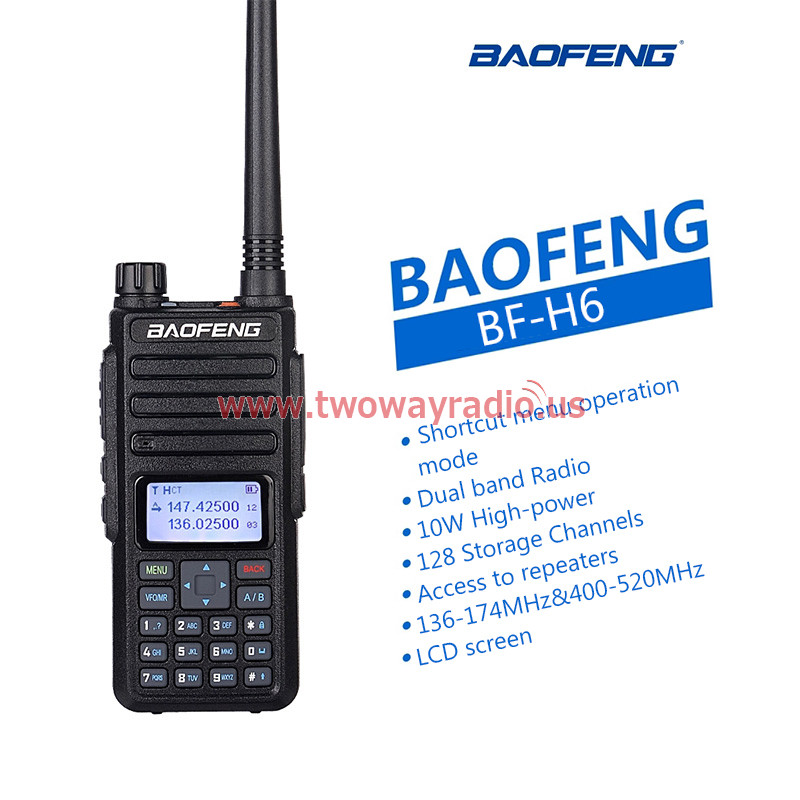

Baofeng BF-H6 Dual Band 10W Powerful Walkie Talkie VHF 136-174MHz UHF 400-520MHz Two Way Radio
Baofeng Dual band UHF VHF BF-H6 136-174MHz 400-520MHz Tri-power 2w/5w/10w power walkie talkie 10km long talking range ham radio
Main features

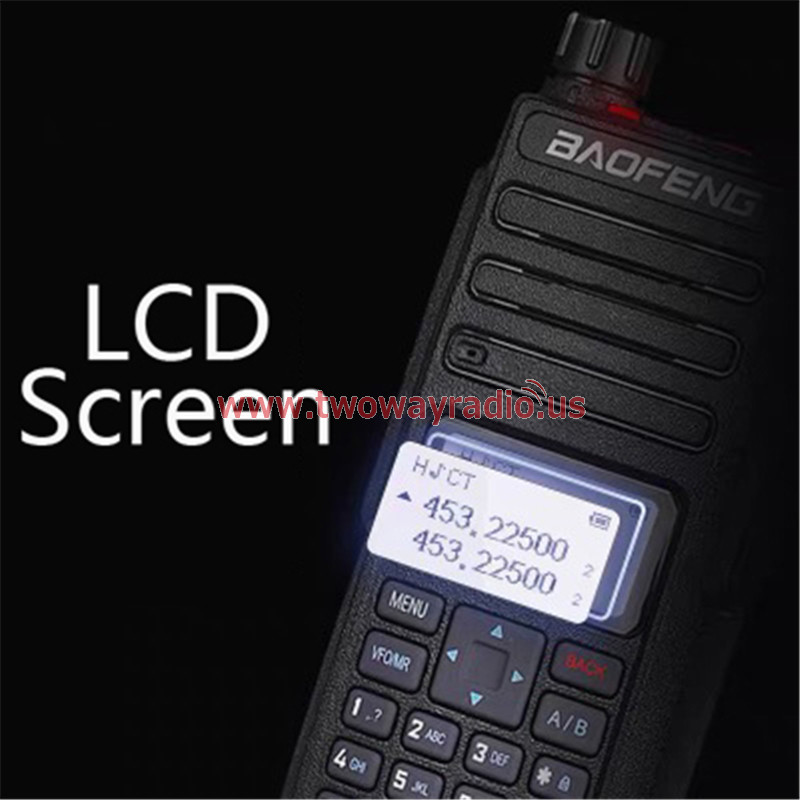

LCD Screen
High/Medium/Low Power optional
DTMF Encoded
UHF/VHF Full frequency receive
1750 Hz TONE for access to repeaters
CTCSS/DCS to Automatic Scan
Shortcut menu operation mode
PC Programming
Wired Clone
Emergency alarm call function
English annouance
Wide/ Narrow band selectable
| General Specification | |
| Frequency Range | 136-174Mhz/400-520Mhz |
| Channel Capacity | 128 |
| Channel Spacing | 12.5khz/25.0khz |
| Frequency Stability | ±1.5ppm |
| Working Temperature | -20℃ ~ +60℃ |
| Antenna Impedance | 50Ω |
| Working Voltage | 7.4V |
| Dimensions (L * w * h) | 134*62*32mm |
| Weight (With Battery And Antenna) | 298g |

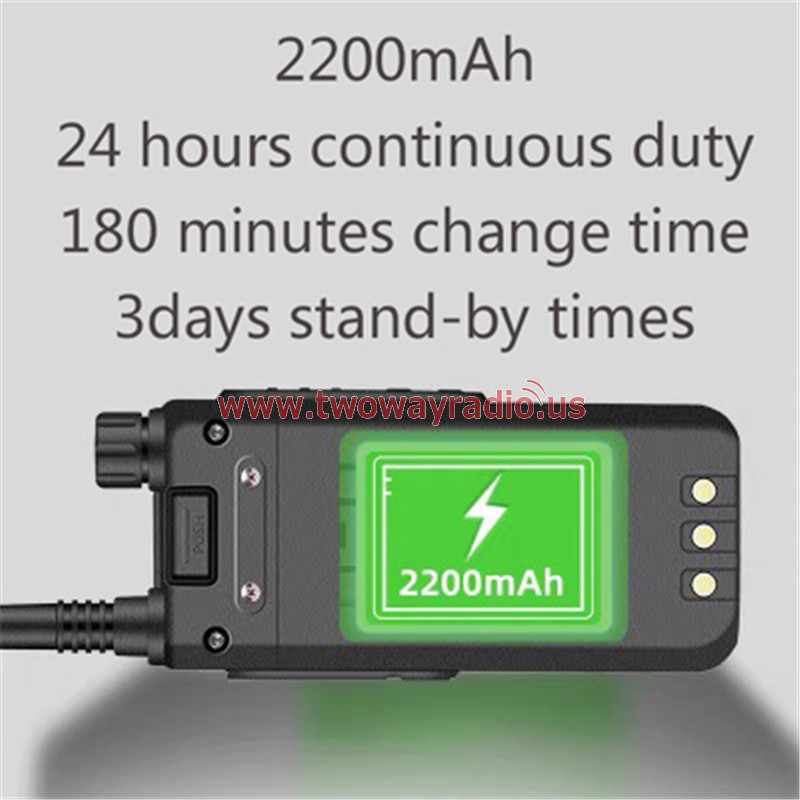

| Battery | 2200mah (Lithium Ion Battery) |
| Receiver | |
| Receiving Sensitivity | < 0.25μv |
| Adjacent Channel Selectivity | >65db / 60db |
| Intermodulation Rejection | >65db / 60db |
| Spurious Response | ≥60db |
| Signal To Noise Ratio | >45db |
| Rated Audio Output Power | 1W`10% |
| Rated Audio Distortion | ≤5% |
| Transmit | |
| Modulation Mode | 16Kφf3E / 11Kφf3E |
| Modulation Limit | ≤5khz / ±2.5khz |
| Fm Distortion | ≤5% |
| Residual Fm | -45db / -35db |
| Adjacent Channel Power | ≤-65db / -60db |
| Stray And Harmonic | ≤-36dbm |
Standard package
Radio*1
Battery*1
Antenna*1
Earpiece*1
Charger set*1 (The charger plug US, AU, UK or EU style depends on your country)
Strap*1
Note: if you need software, please contact us.
