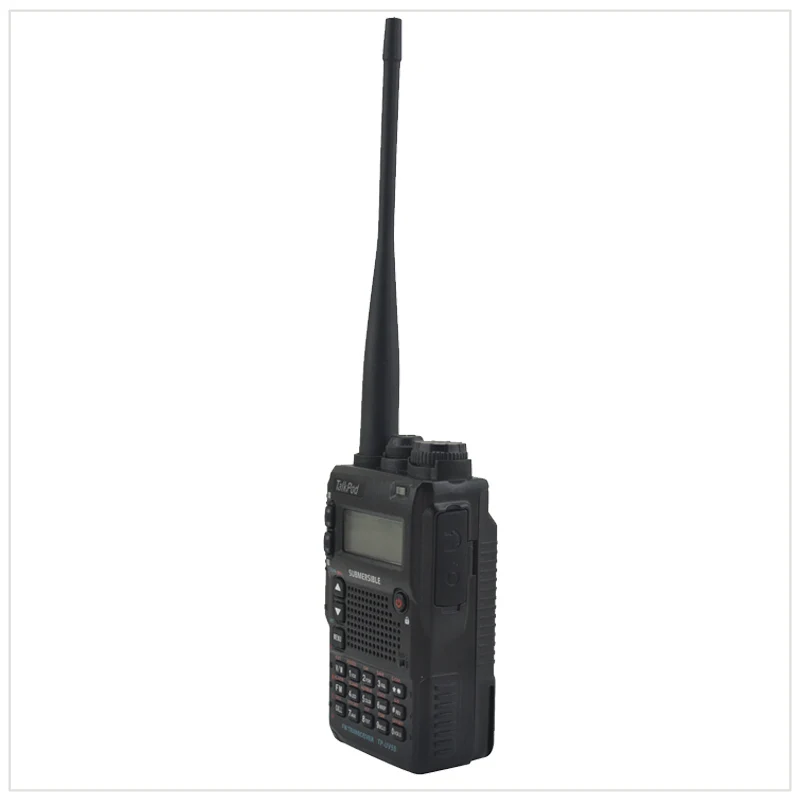

TalkPod TP-UV5S Tri-Band 7W  2200mah Portable Two way radio Sister Yaesu VX-8DR

TalkPod TP-UV5S Tri-Band 136-174/240-260/400-520mhz 7W  2200mah Battery Two way radio walkie talkie Sister Yaesu VX-8DR

Features:

·    Tri-Band 136-174/240-260/400-520mhz

·     Emergency Alarm

·     ANI CODE(PTT ID)

·     FM Radio

·     DTMF

·     Low Battery Alert

·     Squelch Tail Elimination

·     Power. >5W

·     Channel Annunciation

·     Auto Power-savimg

·     Multiple Scanning

·     Sound Alarm

·     Keypad lockout

·     Full-function keypad

·     Program alphanumeric channel name

·     Large Capacity Li-ion Battery

·     Busy Channel Lockout(BCLO)

·     Squelch Level Programmable

·     128 memory channels

Specifications:

Frequency Range	Tri-Band 136-174/240-260/400-520mhz
Channel Capacity	128
Frequency Stability	2.5ppm
Frequency Step	2.5kHz/ 5kHz/ 6.25kHz/ 10kHz/ 12.5kHz/ 25kHz
Antenna Impedance	50Ω
Operating temperature	–20°C to +60°C
Supply voltage	Rechargeable Lithium-Ion 7.4V/2200mAh
Consumption in standby	≤75mA
Consumption in reception	380mA
Consumption in transmission	≤1.4A
Mode of operation	Simplex or semi-duplex



Transmitter
RF Power	7W//2W
Type of modulation	FM
Emission class	16KφF3E/11KφF3E(W/N)
Maximum deviation	≤±5kHz/≤±2.5kHz(W/N)
Spurious emissions	<-60dB
Receiver
Receiver Sensitivity	0.2μV(at 12 dB SINAD)
Intermodulation	60dB
Audio output	1000mW
Adjacent channel selectivity	65/60dB

Each Set Package Contain:

1× Tri-band TP-UV5S Radio

1× Desktop Charger w/Adapter

1× VHF/UHF Dual band SMA-Female Antenna

1× 240-260MHz SMA-Female Antenna

1× Belt Clip

1× 2200mAh Li-ion Battery

1× User’s Manual
