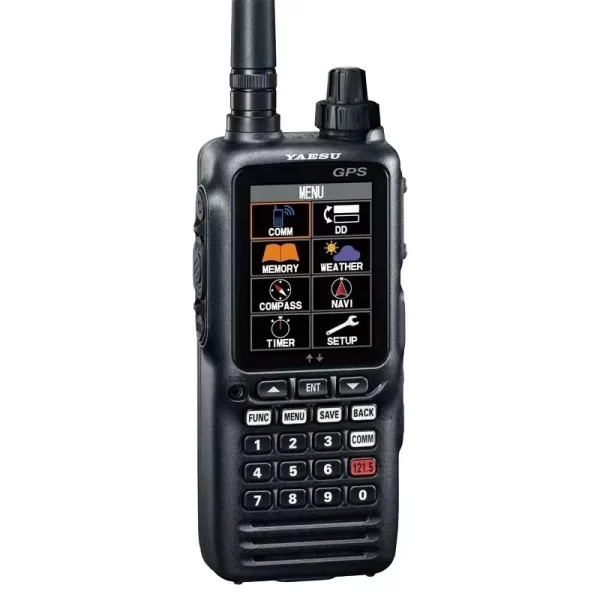

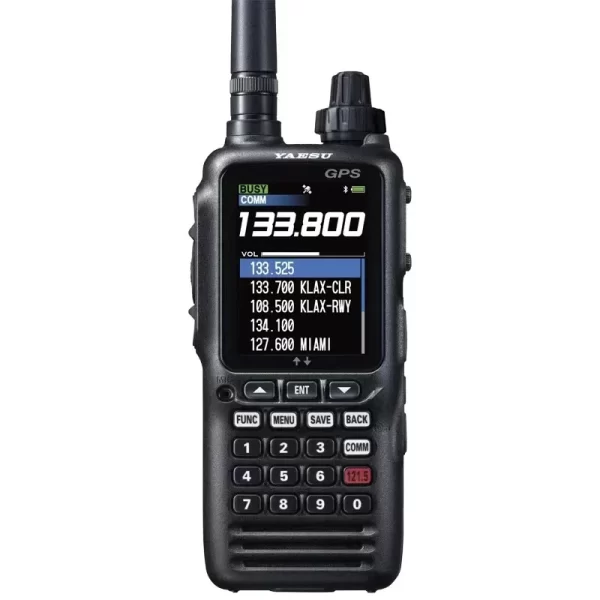

New YAESU Original Portable Aviation Radio FTA-850L, 2.4″ Large Color Screen, 6W HAM Power Ham Walkie Talkie

New YAESU Original Portable Aviation Radio FTA-850L, 2.4″ Large Color Screen, 6W HAM Power Ham Walkie Talkie

Yaesu FTA-850L NAV-COM aviation transceiver air band vhf handheld radio walkie talkie

Parameters:
Frequency range:
1)Transmission: 118,000-136,9916 MHz
2)Receiving:
108,000-136,9916 MHz
161.650-163.275 MHz
329,150-335.000MHz

Spatial channel: 25KHz, 8,33KHz
Type of Issue:
TX: AM
RX:AM and FM (FM: to receive weather channels)
Supply voltage: 6,0-9,5 VDC
Temperature: -10°C to + 60°C
Product size: L60xA132xP34mm
Product weight: 395g
Transmitter power: 6W (PEP), 1.8 (carrier power)
Battery capacity: 2200mAh

LF:
47,25 MHz (VHF)
46.35 MHz (UHF) and 450kHz
Circuit type: Superheterodine double frequency
Spurial emission: 70dB below carrier
Microphone impedance: 150Ω

Description:
This one adopts 2.4 inch color TFT large screen, which has excellent visibility and experienced operation.

Supports ILS navigation display (locator and tilt sliding). When this one receives ILS signal, the visor automatically switches to a navigation screen, which displays the CDI (course deviation indicator) according to the received locator signal or the sliding tilt signal. Course and altitude deviations are clearly displayed without color CDI display and assist landing in adverse weather conditions.

VOR navigation display, when this one receives VOR signal, a display automatically switches to a NAV band screen and displays the CDI. The top of the compass rose always indicates the starting point direction of the OBS.SOG (ground speed). Note: It will only be displayed when an internal GPS unit is activated and a position is obtained.

A flight route navigation function clearly displays a driving route, list the waypoints from the starting point to the final destination, including a current position where a navigation is performed. A route, a position and a status of the trip are clear at first glance.

It has built-in Bluetooth module, allowing it to be operated with commercially available Bluetooth headphones or used with the optional Yaesu accessory.

With IPX5 waterproof rating and MIL-STD-810H certified rugged construction, it can easily handle even outdoor but demanding environments.
