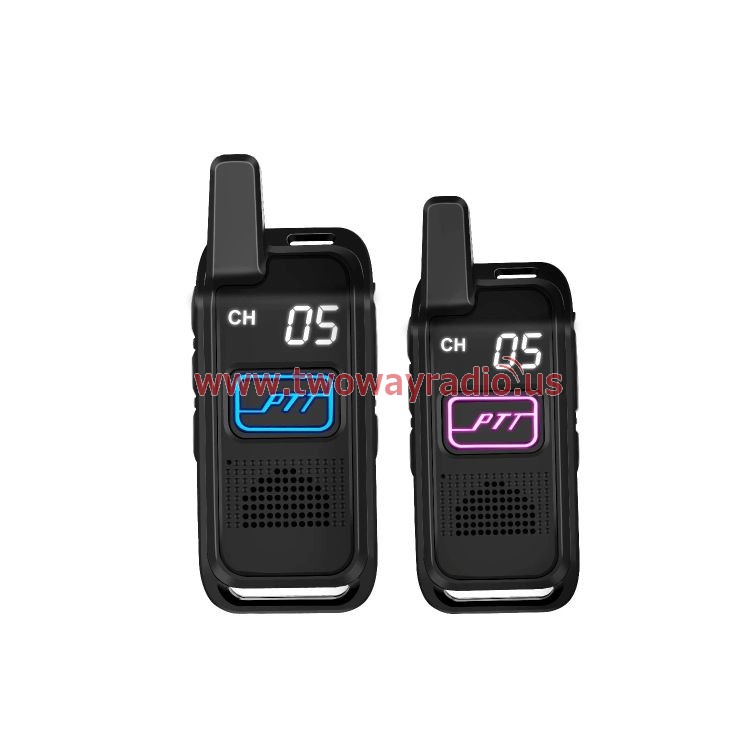

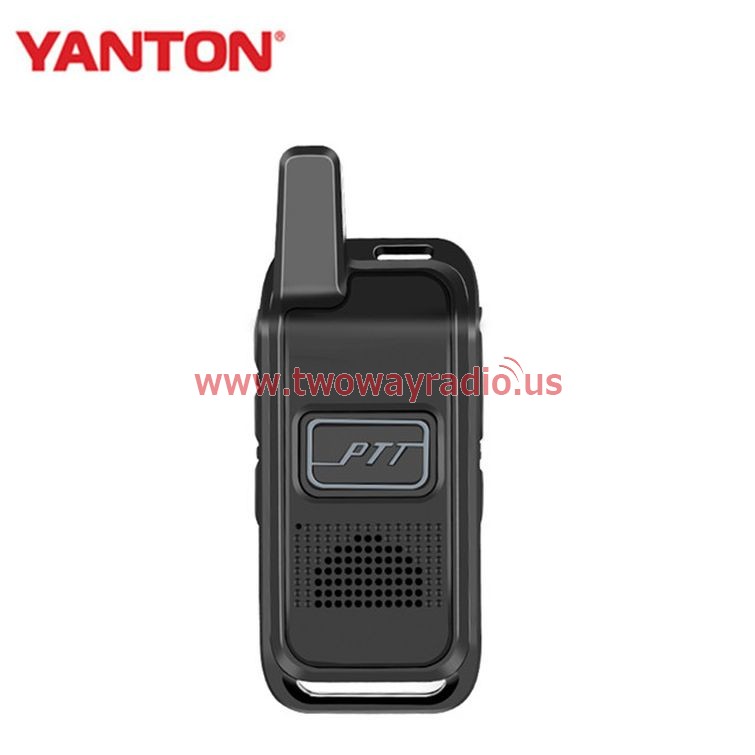

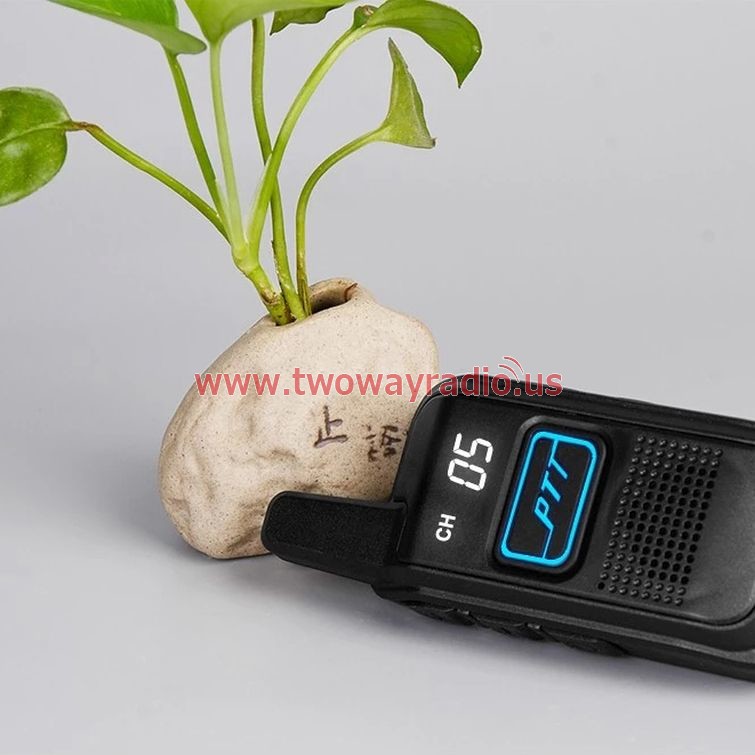

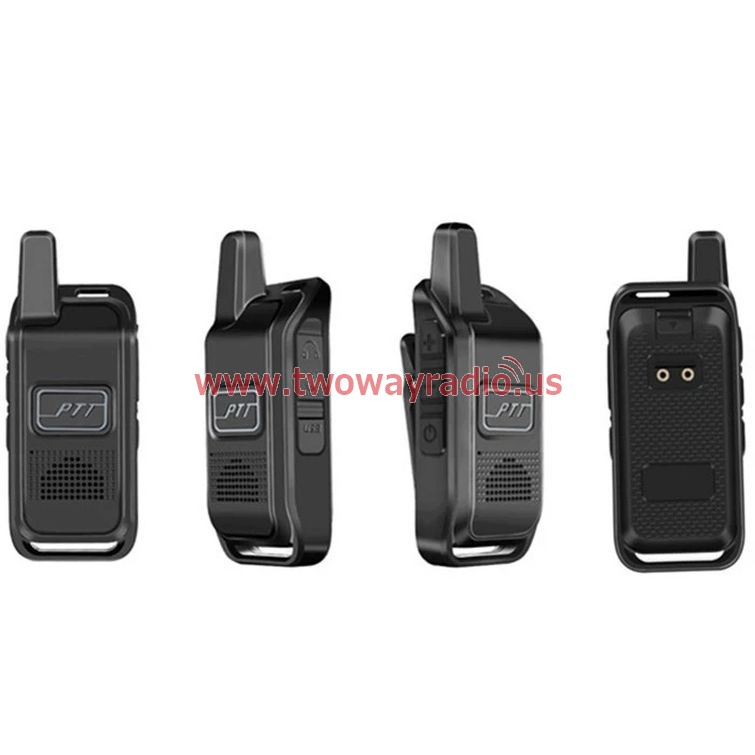

YANTON T-S1 Mini PMR Radio 446MHz FRS LPD Two Way Radio
Mini PMR Radio Main function:
1. Frequency: PMR 446MHZ; FRS 462.5625-467.7125MHZ; LPD 433MHZ;
2. Memory Channel 199;
3.Compander;
4. Scrambler;
5. Vibration function;
6. Emergency function;
- VOX function;
8. CTCSS/DCS Decode&Enclode;
9. Non-standard CTCSS/DCS;
10. Channels and capacity of battery;
11. Power on voice selection;
Specification:
| GENERAL | |
| Frequency Range | 400-480MHz |
| Operating Temperature | -20℃ to +55℃ |
| Frequency Combination | please lock frequency synthesize |
| Frequency Stability | ±2.5ppm |
| Memory Channel | 199 |
| Working voltage | 3.7V |
| Antenna Impedance | 50Ω |
| Operating Mode | simplex of co-frequency or alien |
| Dimensions | 85*38*25mm |
| Weight | 80g |
| TRANSMIT PART | |
| RF power | 3W |
| Modulate Mode | F3E |
| Max.Freq.Deviation | ≤5KHz |
| Remain Wave Radiation | <-60dB |
| Transmitting Current | ≤1000mA |
| RECEIVER PART | |
| Sensitivity | <0.20uV (12dB SINAD) |
| Squeich Sensitivity | <0.20uV |
| Intermodulation Antijamming | 50dB |
| Audio Power output | 500mW |
| Receiving Current | ≤100mA |
| Squelch Stangby | 20mA |
Each Package Contain:
1 x Radio
1 x Battery
1 x Belt Clip
1 x Slip
1 x Manual
1 x AC Adaptor
1 x Power Cable
