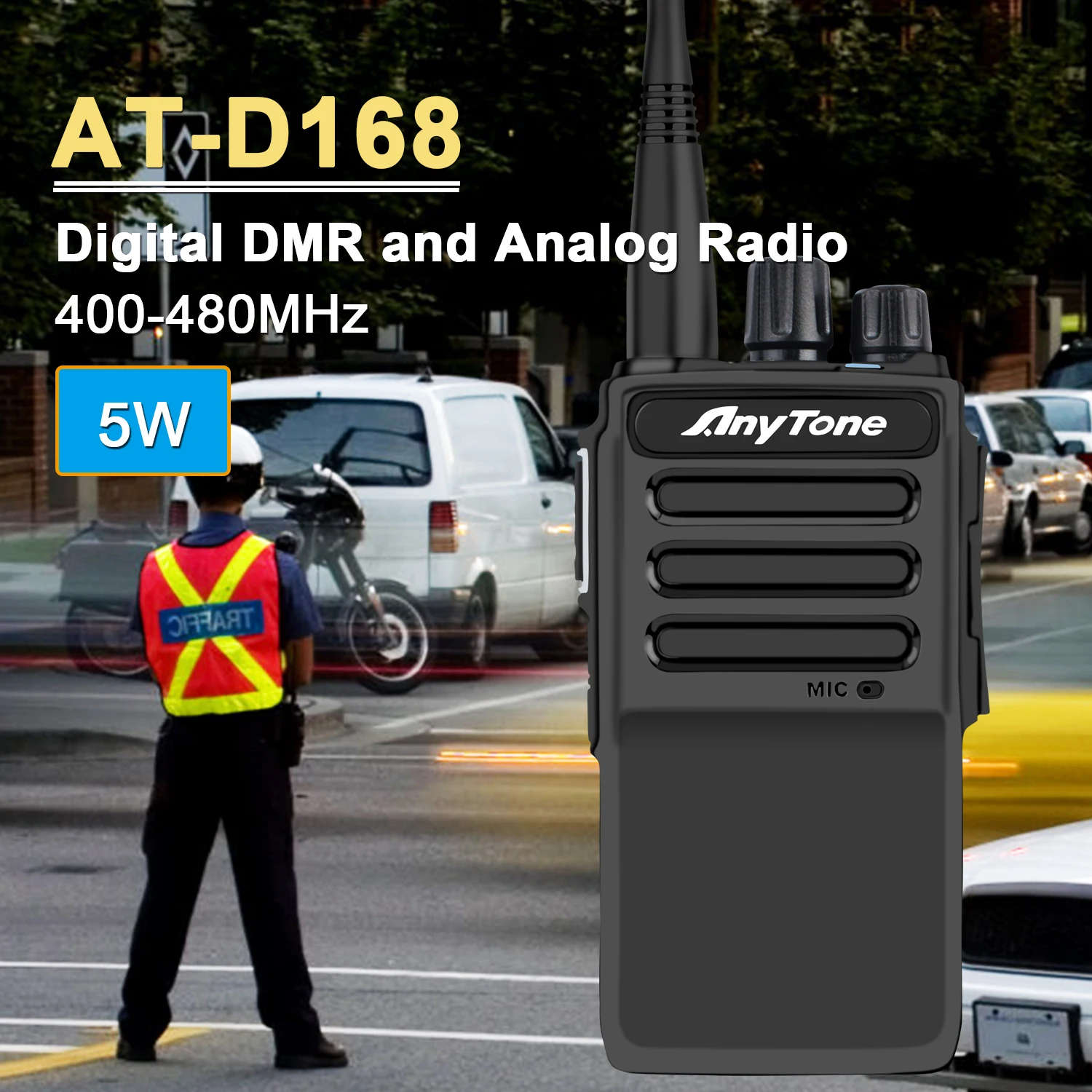

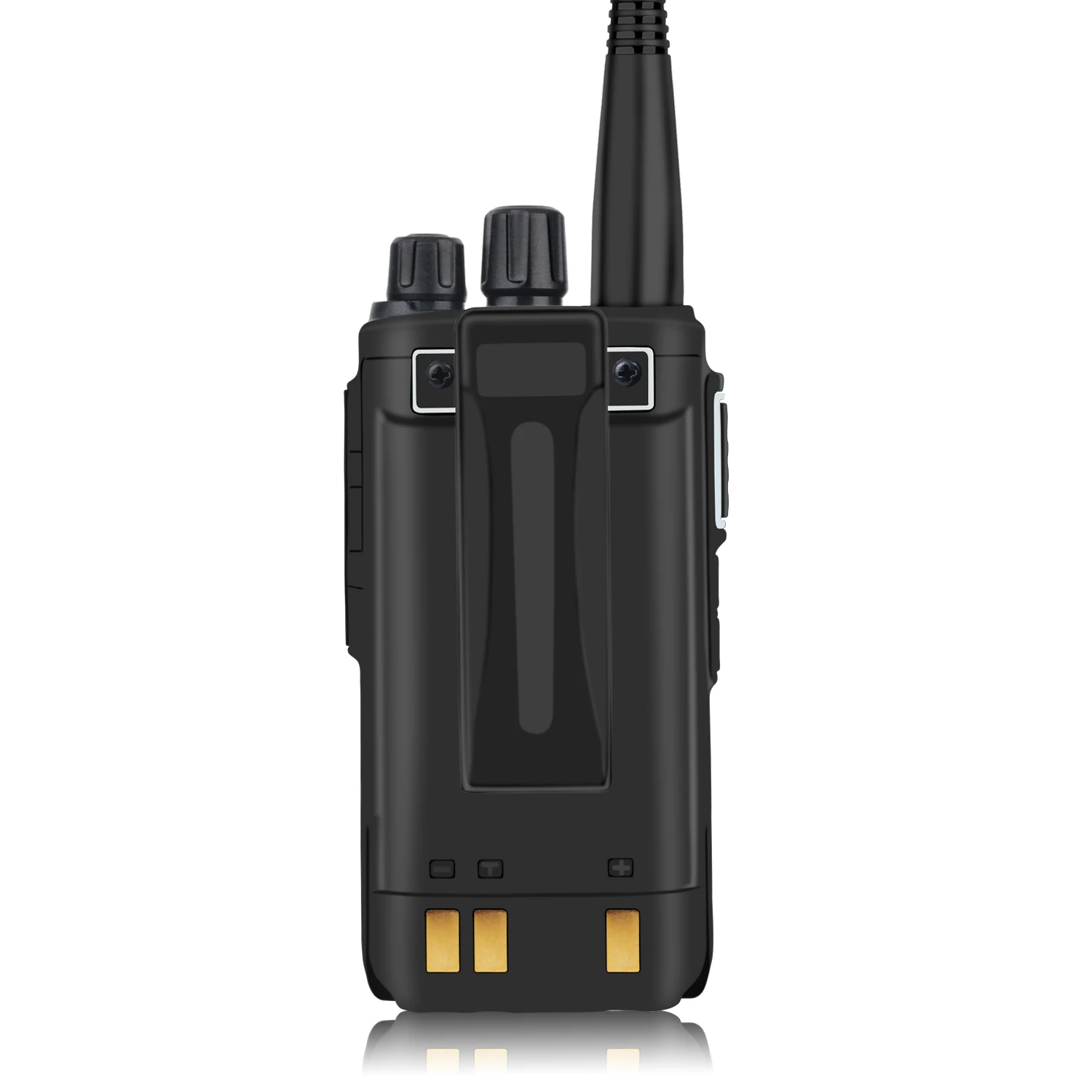

Walkie Talkie Anytone AT-D168 UHF 400-480MHz 5W 256Ch DTMF 2TONE 5TONE AES256 ARC4 Encryption Digital DMR and Analog Two Way Radio

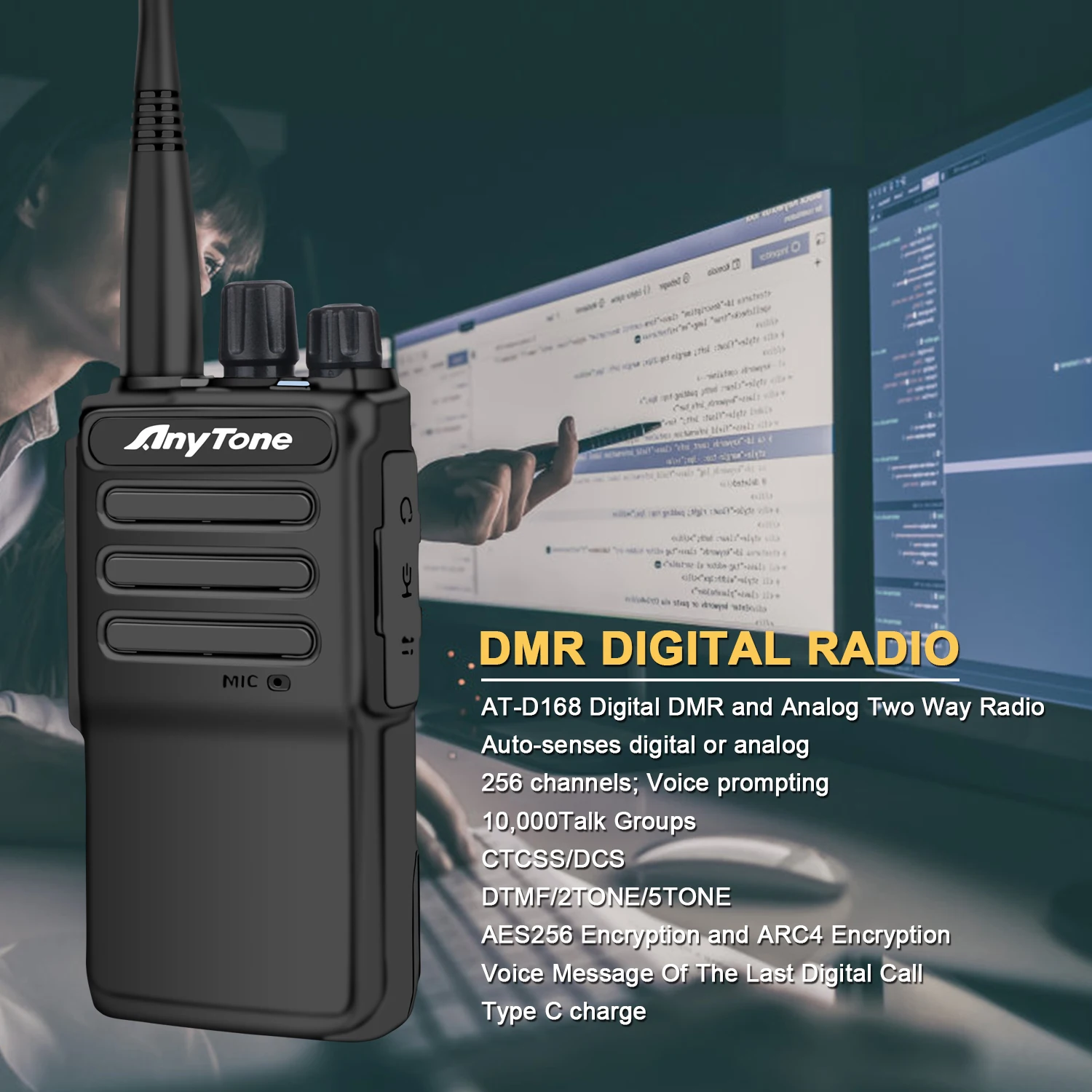

Features:

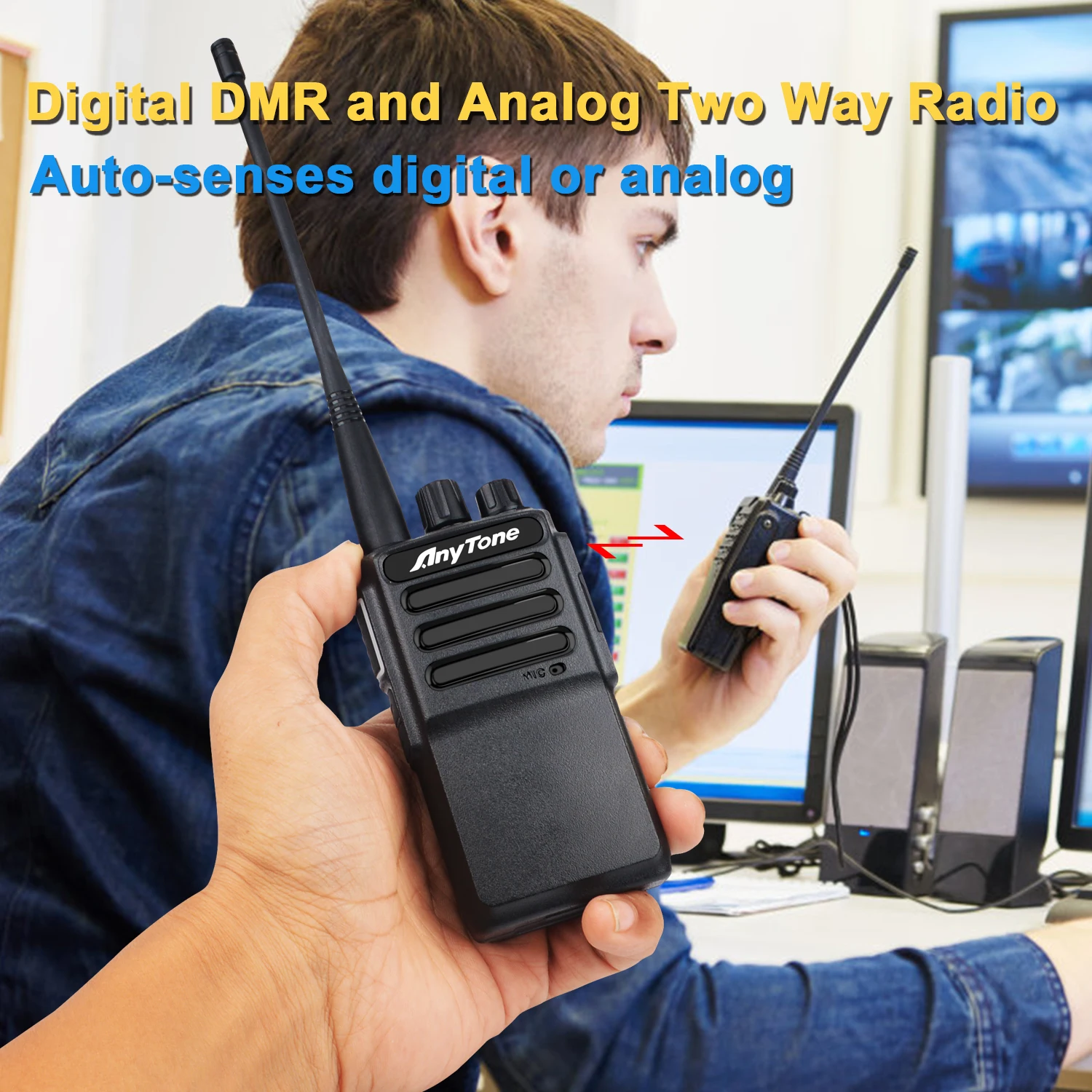

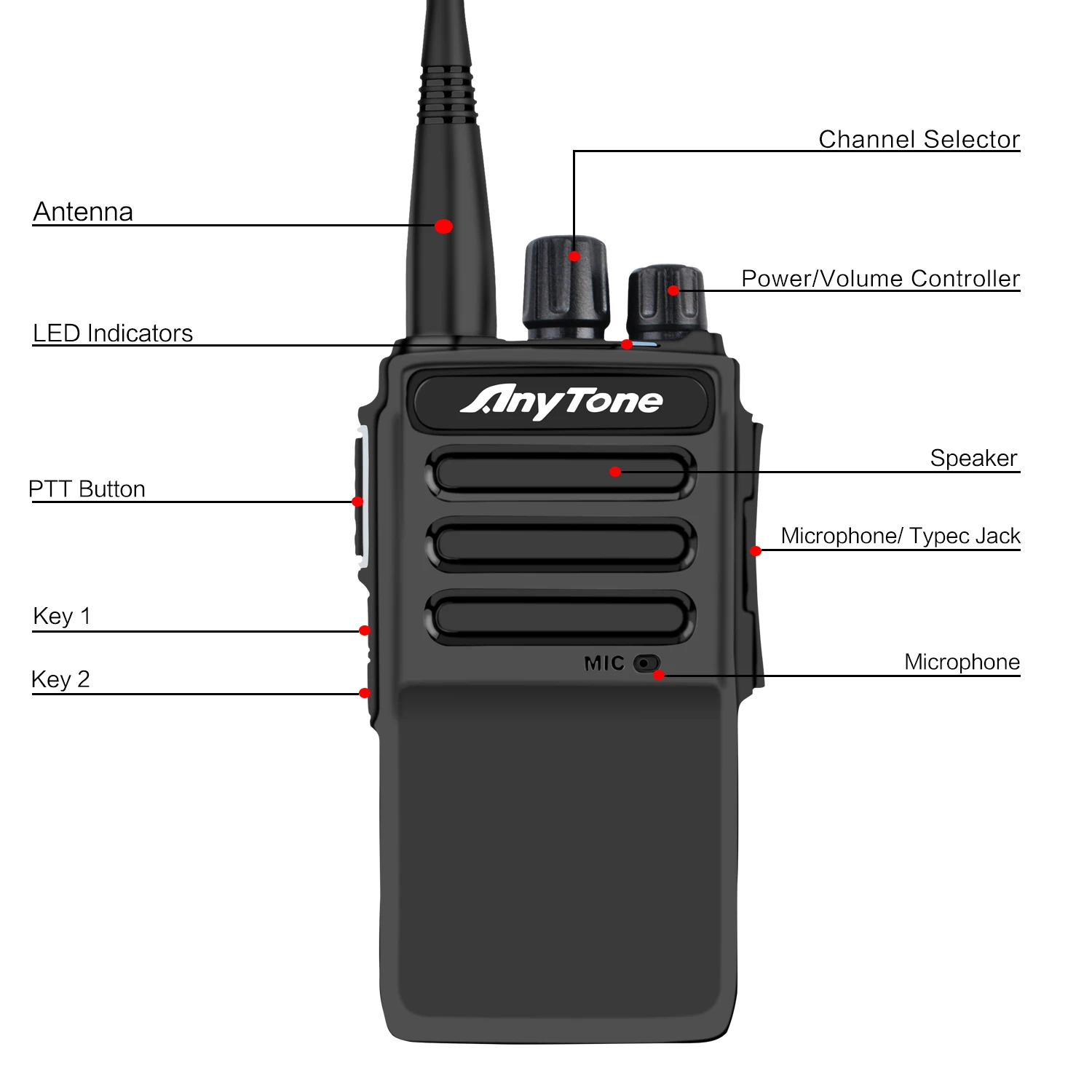

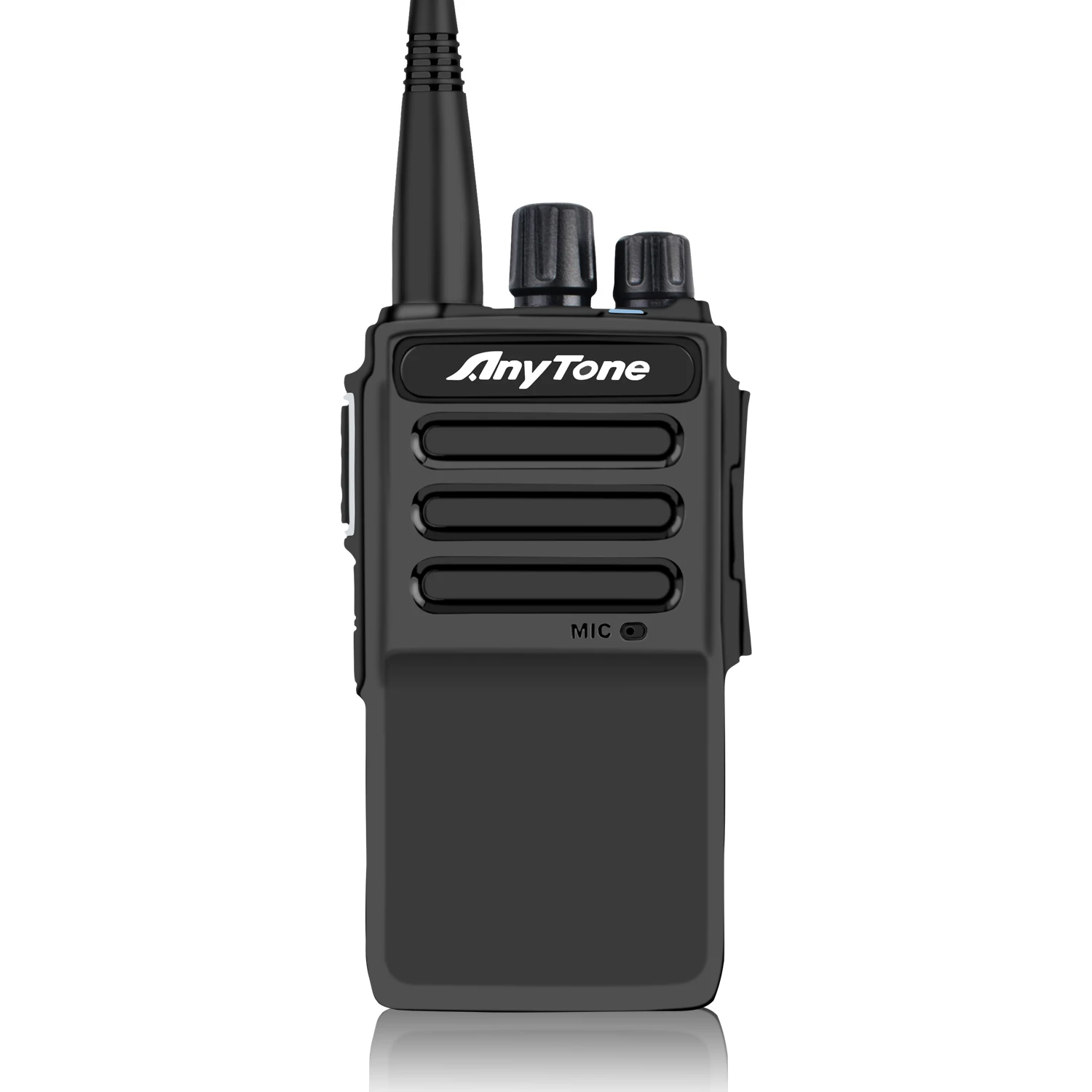

AT-D168 Digital DMR and Analog Two Way Radio
Auto-senses digital or analog

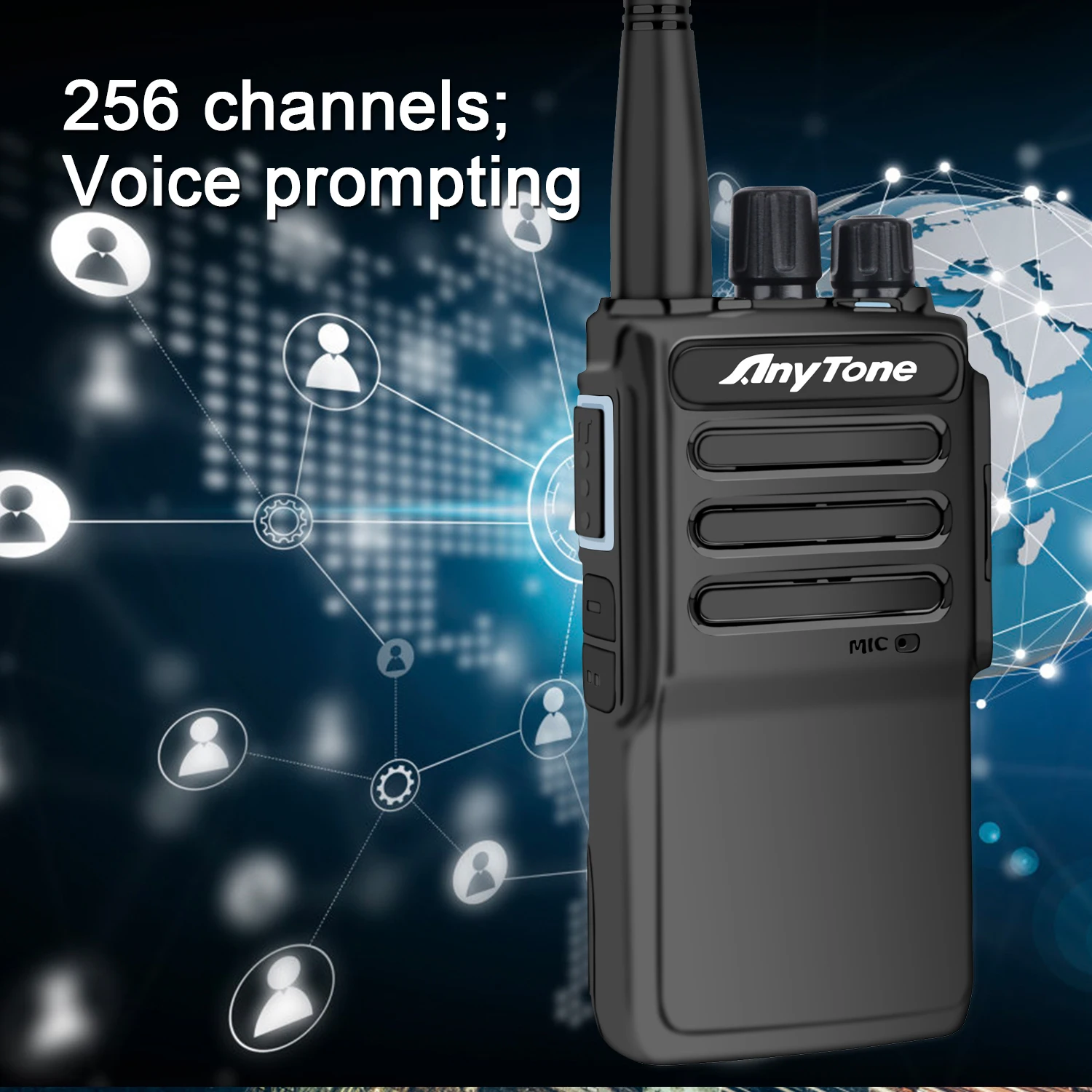

256 Channels, voice prompting

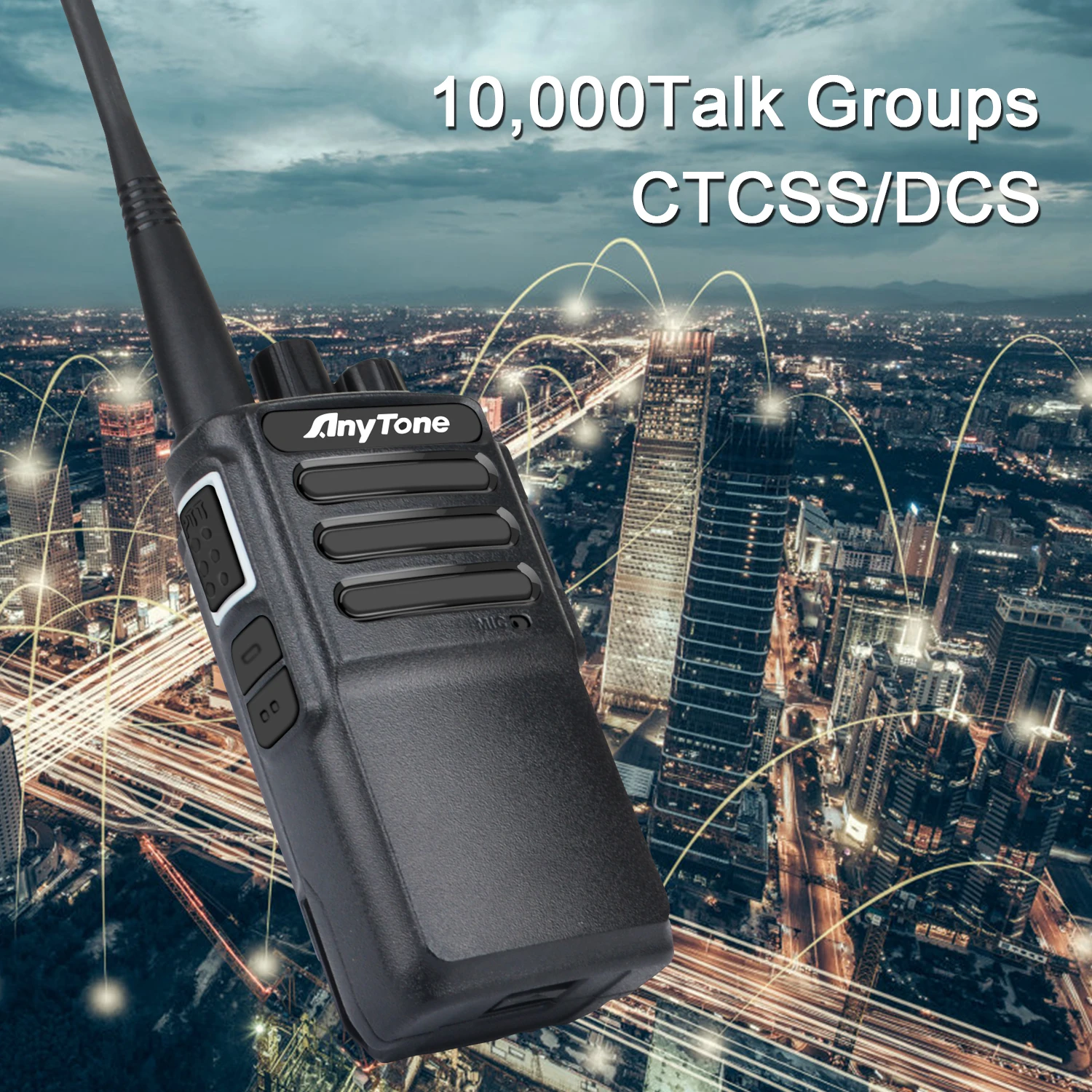

10,000 Talk Groups
CTCSS/DCS
DTMF/2Tone/5Tone

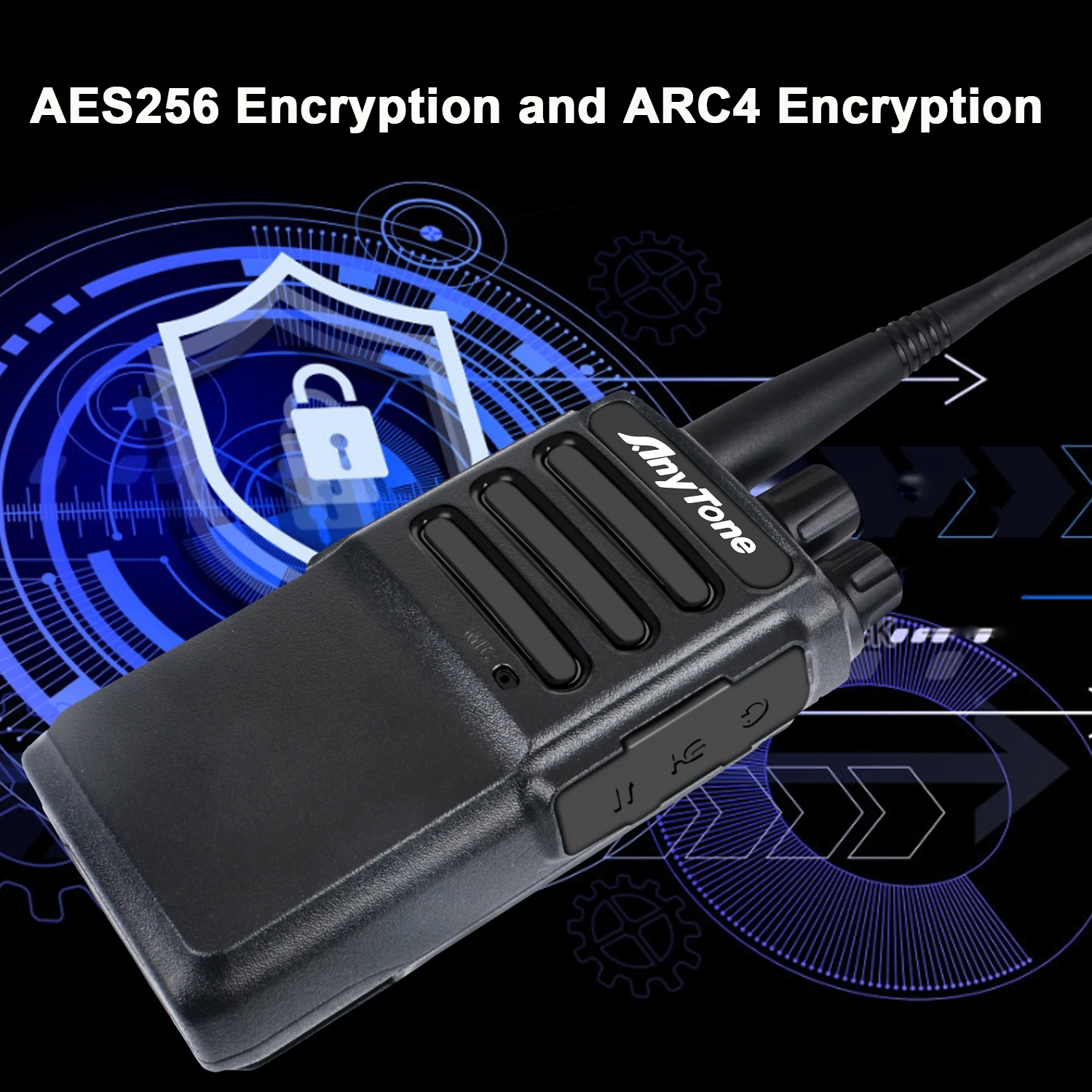

AES256 Encryption and ARC4 Encryption

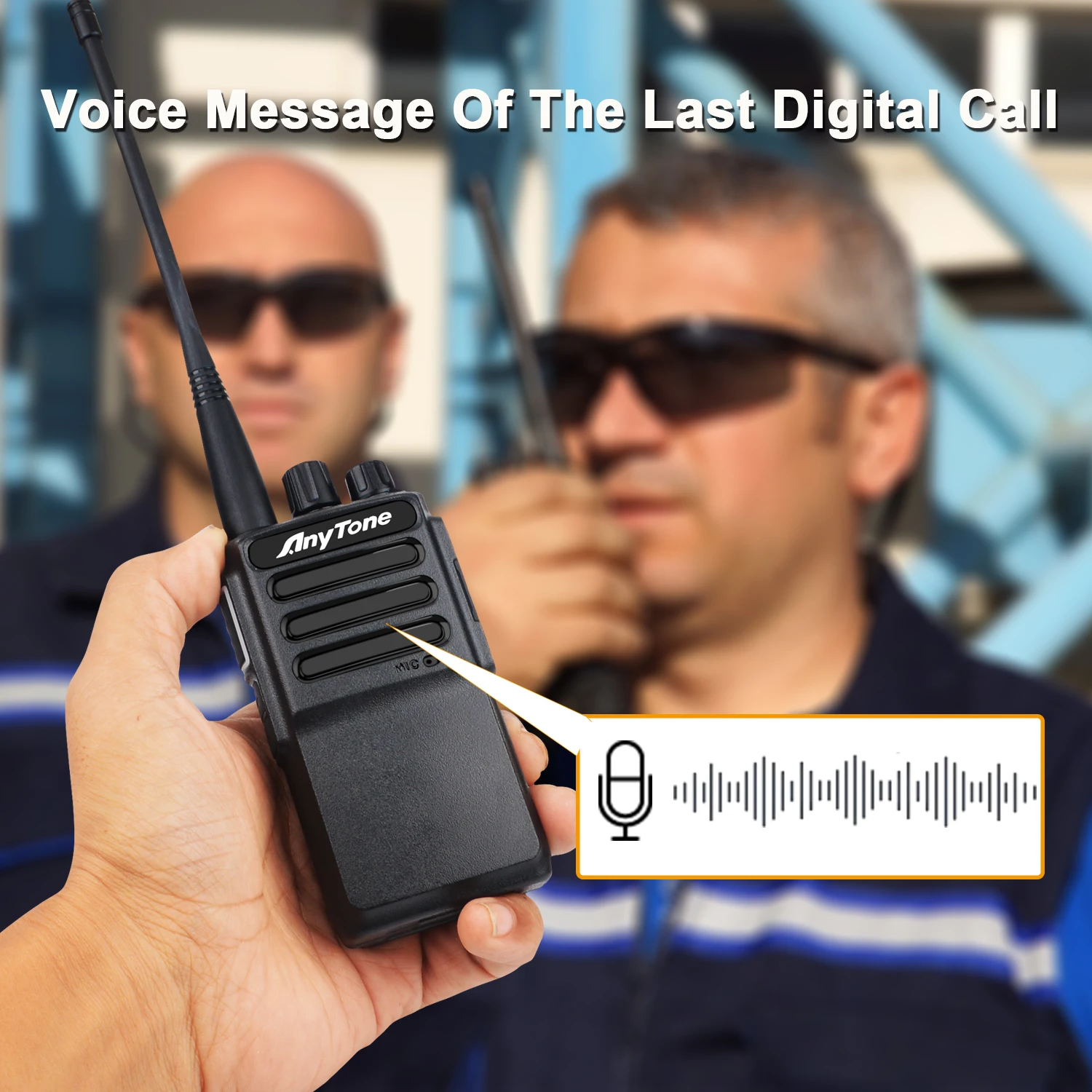

Voice Message of the last digital Call

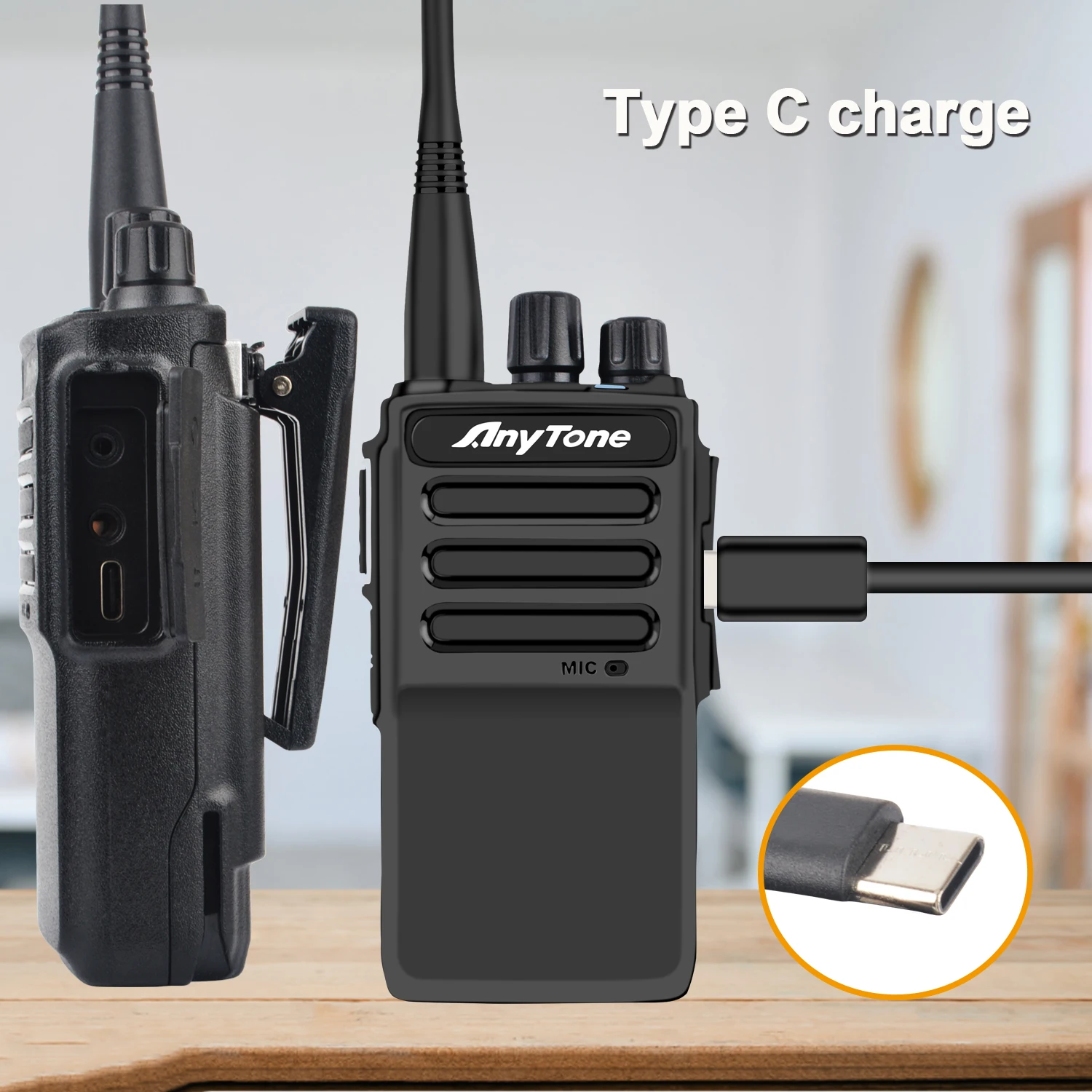

Type C Charge and Charger dock
Specifications:
|
General |
|
|
Frequency Range |
400-480MHz UHF |
|
Channel Capacity |
256 channels |
|
Channel Spacing |
25KHz (Wide Band) 12.5KHz (Narrow Band) |
|
Phase-locked Step |
5KHz,6.25KHz |
|
Operating Voltage |
7.4V DC ±20% |
|
Frequency Stability |
±1.5ppm |
|
Operating Temperature |
-20°c~+50°c |
|

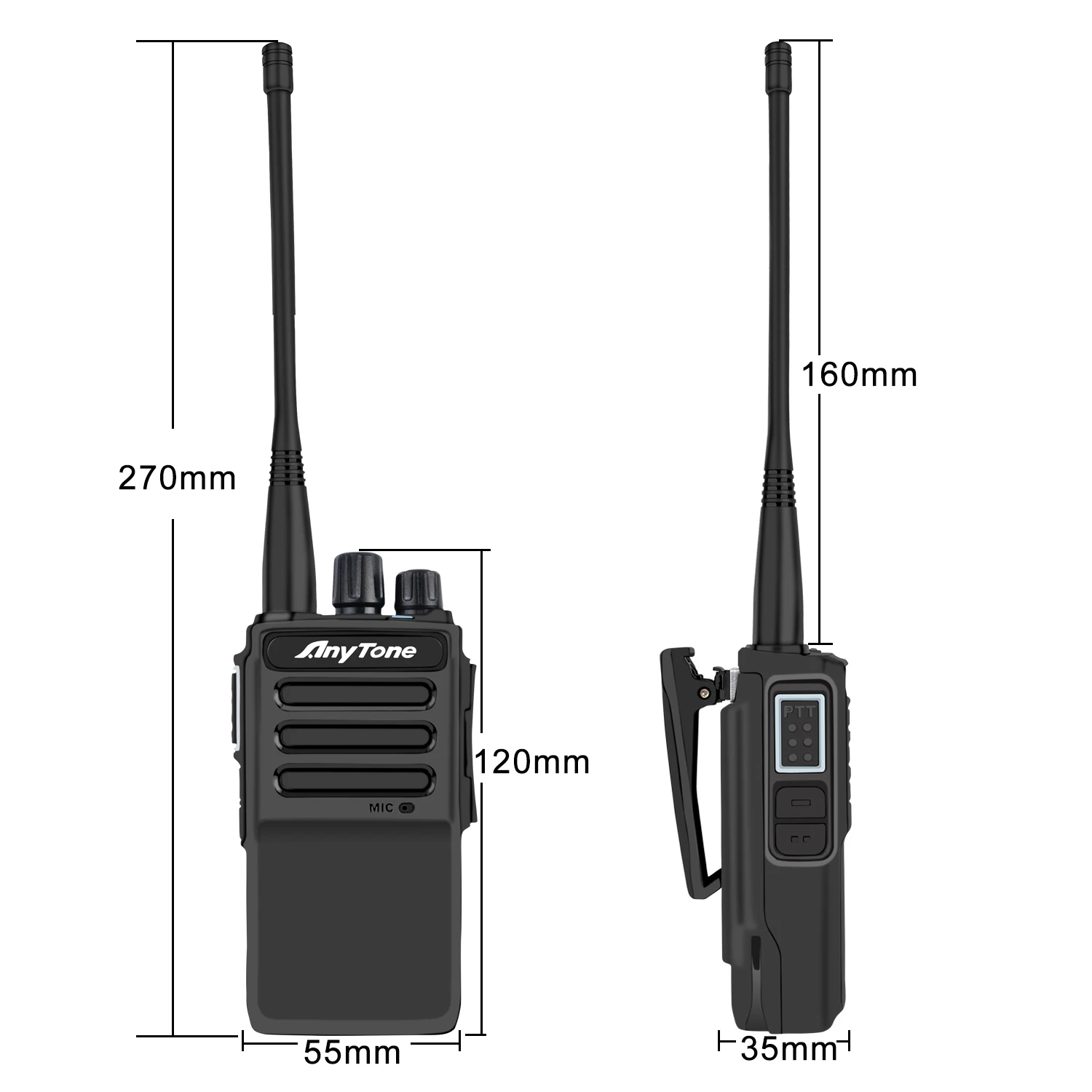

Size |
118*59*36mm(with battery pack) |
|
Weight |
203g (with battery pack) |
|
Transmitting Part |
|
|
Power Output |
1.5/2.5/0.5W |
|
Modulation Limit |
±5.0KHz 25KHz(Wide Band) ±2.5KHz 12.5Khz(Narrow Band) |
|
Adjacent Channel Power |
≥70dB (Wide Band) ≥60dB(Narrow Band) |
|
Hum & Noise |
≥40dB(Wide Band) ≥36dB(Narrow Band) |
|
Spurious Emission |
≤-60dBc (Wide Band) ≤-60dBc(Narrow Band) |
|
4FSK Digital Modulation |
12.5Khz (data) 7K60FXD 12.5KHz (data+voice) 7K60FXE |
|
Audio Distortion |
≤5% |
|
Error Rate |
≤3% |
|
Receiving Part |
|
|
Sensitivity (12dB SINAD) |
≤0.25uV (Wide Band) ≤0.35uV （Narrow Band） |
|
Digital Sensitivity |
0.3uV/-117.4dBm(EBR5%) 0.7Uv/-110dBm (BER 1%) |
|
Adjacent Channel Selectivity |
≥65dB(Wide Band) ≥60dB(Narrow Band) |
|
Spurious Emission |
≤-57dB(Wide Band) ≤-57dB(Narrow Band) |
|
Spurious Rejection |
≥65dB(Wide Band) ≥60dB(Narrow Band) |
|
Blocking |
84dB |
|
Hum & Noise |
≥45dB(Wide Band) ≥40dB(Narrow Band) |
|
Audio Distortion |
≤5% |
|
Audio Power Output |
1000mW/16 ohm |

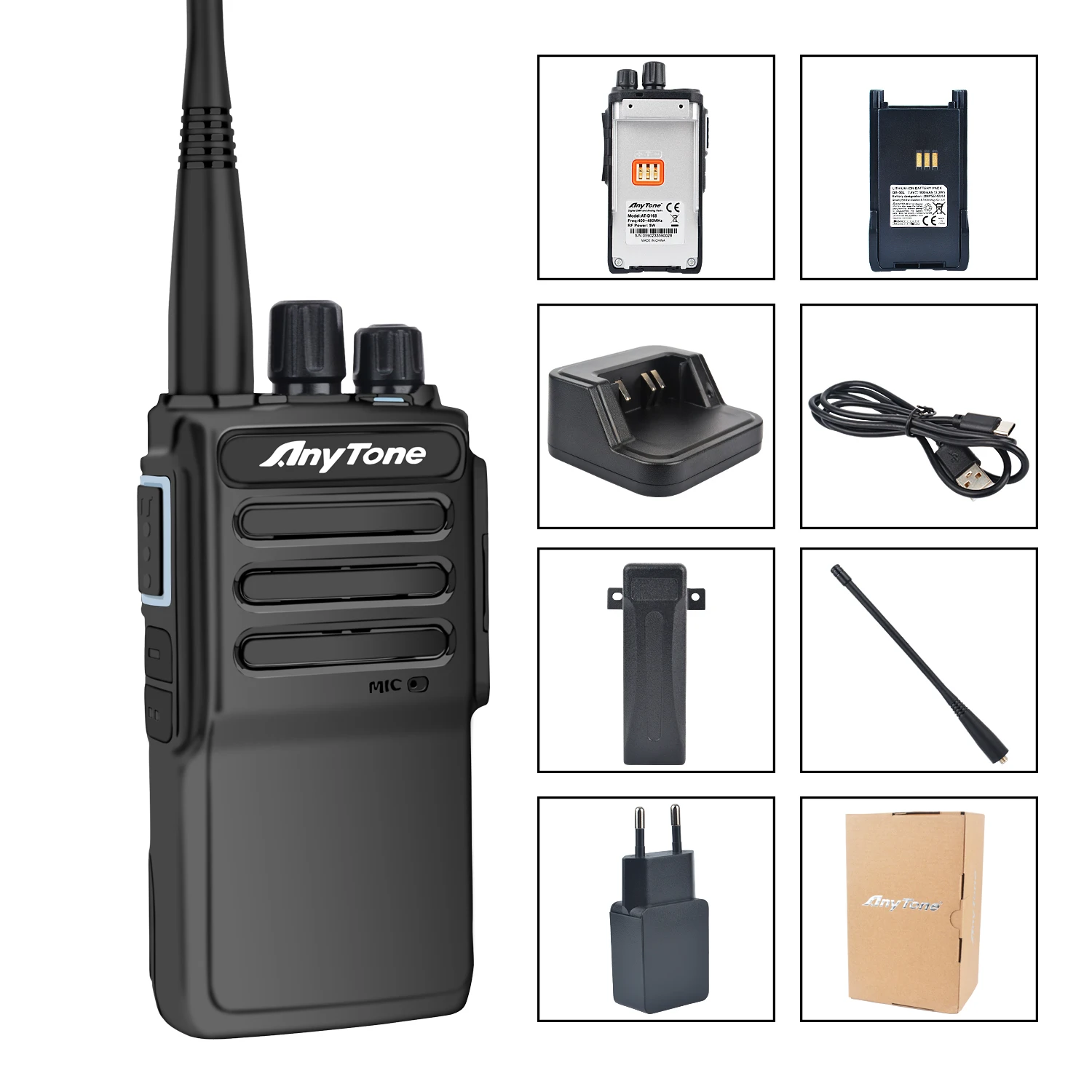

Package Contains:

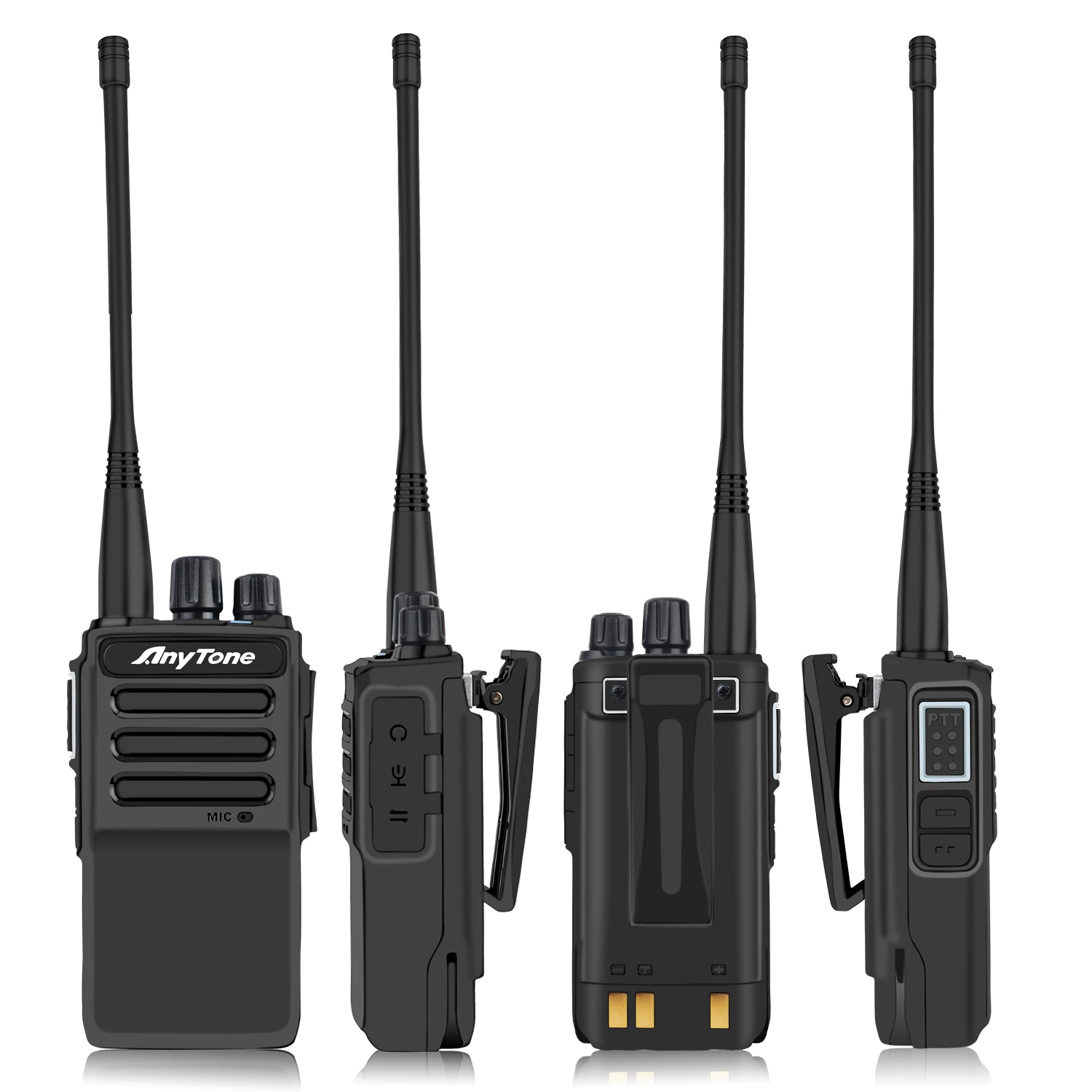

1× Anytone AT-D168 DMR Radio body

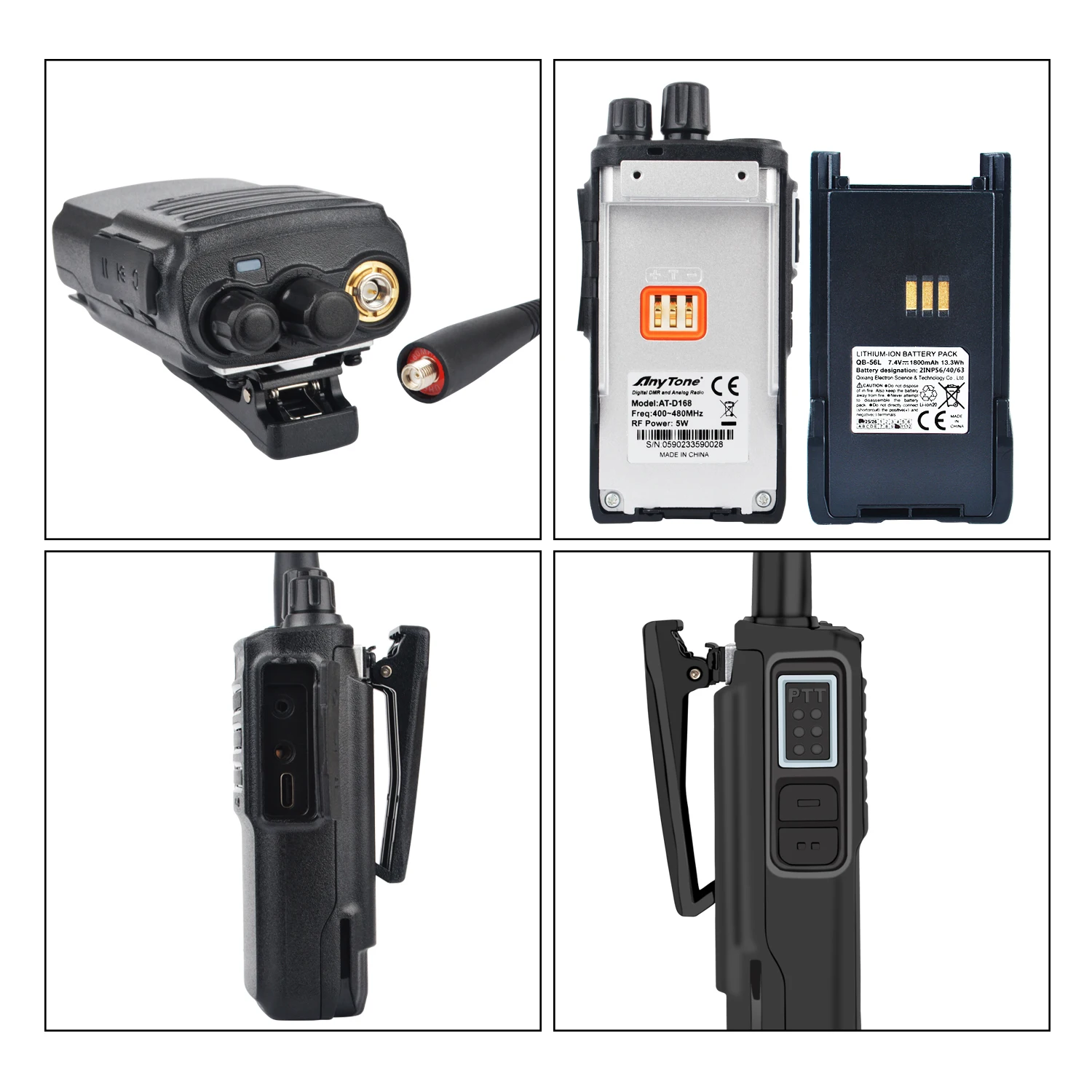

1× 1800mAhRechargeable Lithium-ion Battery Pack 7.4V
1× 400-480MHz SMA-Female Antenna
1× AC Adapter
1× Charger Dock
1× Type C Charging Cable
1× Battery Clip
1× User Manual
