Motorola GM338 Mobile Base Radio VHF UHF For Sale Motorola Mobile Transceiver Car Radio
Product Information

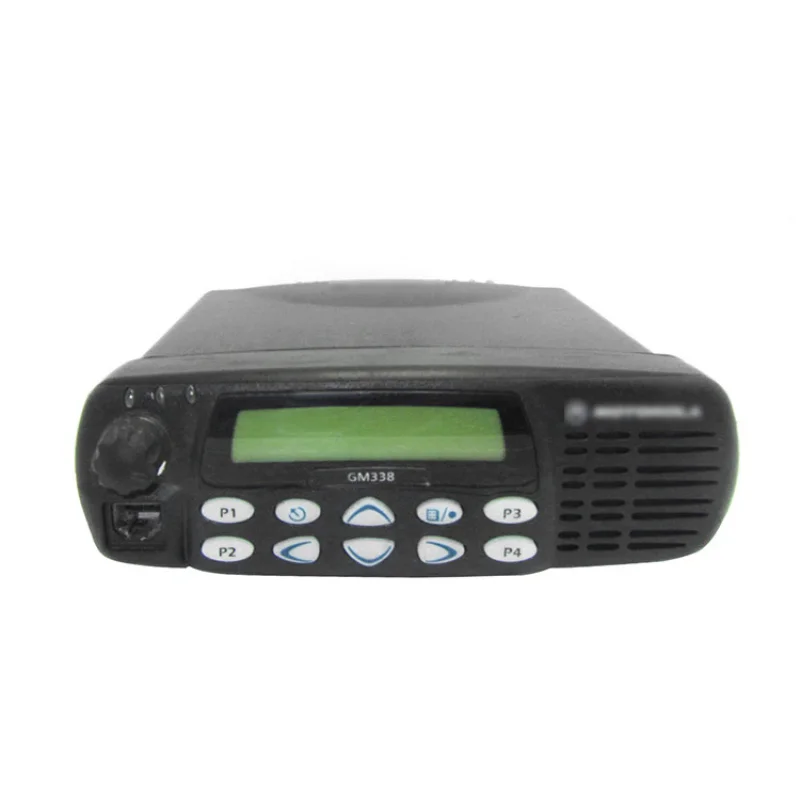

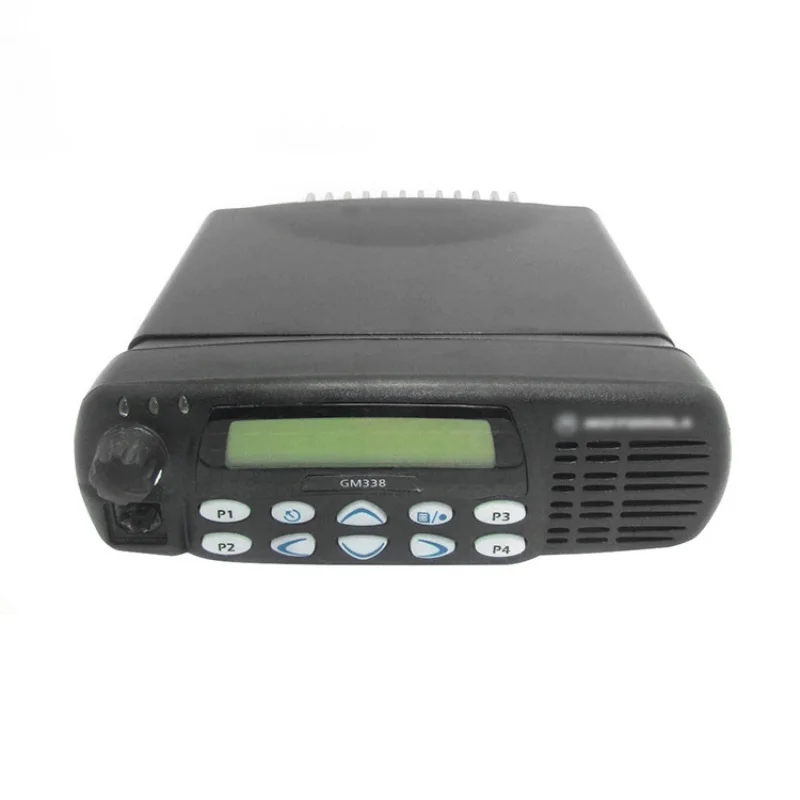

Motorola GM338 is a sleek large control panel design designed by Motorola, with no right angles visible throughout the entire control panel. Instead, it features simple curved lines. The size of the LCD display screen is also much larger than that of Motorola’s mobile radios in the past, and it can finally display dot matrix text instead of the red LED channels on those machines in the past. Although it is displayed on a single line, it can display 14 characters per line, and the signal strength can also be displayed through symbols. Various work icons are available, making this improvement really exciting compared to several older models of Motorola mobile radios. The control buttons have been expanded from a maximum of 4 on previous models to 9, and the button area is also larger than in the past, making the feel quite comfortable.
Motorola GM338 continues Motorola’s tradition of simple functionality and powerful performance, so although it is a top-level mobile radio, it is only a single segment machine. At present, the models on the market are divided into two types: the 2m band (VHF) and the 0.7m band (UHF). The two meter band models operate in the frequency range of 136-174MHz, and the 70cm band models operate in the frequency range of 403-470MHz, with a standard operating power of 25W. The menu of this machine is also very simple, even beginners can easily get started. The 128 channel storage capacity can be said to be dominant in professional computers, and users can program each channel separately or program in groups to achieve automatic scanning and monitoring.
Motorola GM338 supports three frequency stepping options of 12.5/20/25kHz, with powerful programmable channel spacing function, facilitating channel upgrades.
Motorola GM338 supports two signaling communication protocols, MDC1200 and Quick Call II, and can choose between them at will. Advantages: Advanced voice compression technology ensures clear and loud voice quality, and the voice is loud and clear during communication. The optional recording circuit board can record and replay information for up to 120 seconds, making it convenient for users to save important conversations during communication.
The GM338 mobile radio provides a versatile and rich feature sets which allows higher level of communicaton efficiency that is perfect for growing organisations with rapid changing business needs.
Function
- *Large and easy to operate control buttons
- *Simple menu operations
- *12.5/25kHz channel interval arbitrary switching
- *Supports advanced MDC1200 signaling, Quick Call II, and DTMF signaling
- *Common to CPS and Tuner software of GP328/338
- *Can be installed over long distances * through the US military standard Mil std and ALT 5-year aging test
- *Compared with other mobile radios, GM338 has the following outstanding advantages: * Excellent audio quality: X-pad voice compression, and LLE * Fast transmission of status/information, reducing channel occupation * Emergency calls * PTT ID * Dual priority scanning * Call prompt * Select calls * Off network mode * Operating frequency band
Accessories
- microphone
- Components
- manual
- Bracket
- Remote installation kit
- Data line
Specifications
| Conventional indicators | |
| Frequency Range | 29.7-36MHz 136-174MHz 403-470MHz 36-42MHz 450-527MHz (1-25W) 42-50MHz 450-520MHz (25-40W) |
| Frequency Stability (-30 C to 60 C,25c Ref,) | 5ppm |
| Channel Capacity | 128 Channels |
| Power Output | 40 – 60 W |
| Power Supply | 13.2Vdc (10.8 – 15.6 Vdc) Negative Vehicle ground |
| Channel Spacing | 12.5/20/30kHz |
| Dimensions (L x W x H) | 255mm x 185mm x 72mm 188mm x 185mm x 72mm |
| Weight | 2040gms (4.5lbs) |
| Operating Temperature | -30°C to +60°C |
| Sealing | Passes rain testing to IP54 |
| Shock and Vibration | Meets MIL-STD 810-c,D&E and TIA/EIA 603 |
| Dust | Meets MIL-STD 810-C,D&E and TIA/EIA 603 |
| Humidity | Meets MIL-STD 810-C,D&E and TIA/EIA 603 |
| Transmitter | |
| Modulation Limiting | ± 12.5 @ 12.5kHz ± 5.0 @ 20/30kHz |
| FM Hum & Noise | – 40dB @ 12.5kHz – 45dB @ 20/30kHz |
| Conducted/Radiated Emissions | – 26dB < 1 GHz |
| Adjacent Channel Power | – 60dB < 12.5kHz – 70dB < 20/30kHz |
| Modulation Limiting | ±2.5 kHz @ 12.5 kHz ±5.0 kHz @ 25.0 kHz |
| Adjacent Channel Power | >65 dBc |
| Radiated spurious emission | < -20 dBm |
| Audio frequency response (0.3-3.0KHz) | +5 to -5dB @ 12.5 kHz, +3 to -3dB @ 25 kHz |
| Audio Response (300 to 3000Hz) | + 1, – 3dB |
| Audio Distortion @ 1000Hz, 1000Hz, 60% Rated Max. Deviation | 3% |
| Receiver | |
| Sensitivity (12 dB SINAD) | 0.25uV Typical |
| Intermodulation (EIA | 78dB Typical |
| Adjacent Channel Selectivity | 65dB @ 12.5kHz 80dB @ 20/30kHz |
| Spirious Rejection | 70dB @ 12.5kHz 80dB @ 20/30kHz |
| Rated Audio | 3W Internal 7.5W & 13W External |
| Audio Distortion @ rated audio | 3% Typical |
| Hum & Noise | – 40dB @ 12.5kHz – 45dB @ 20/30kHz |
| Conducted Spurious Emission | – 57dBm > 1 GHz |
| per FCC part 15 | – 47dBm > 1 GHz |
Features
Efficient
- 14 Characters 1-line Alphanumeric Display makes it easy to read both text and icon display.
- 128-channel operating capacity allows individually programmed channels for enhanced communication efficiency.
- Voice compression and low level expansion technology ensures crisp, clear and strong audio quality.
- 4 customisable buttons allow one-touch easy access.
Flexible
- Two choices of signalling protocol: MDC1200 and Quick Call II.
- Programmable channel spacing of 12.5/ 20/ 25 kHz offers versatility and easy migration of operating frequency band.
- Remote mount control head can be mounted on the dashboard without the radio chassis, ideal for situations of space constraint.
Versatile
- Optional voice storage board allows recording and playback of messages for up to 120 seconds.
- Up to 16 pre-assigned text messages can be pre-programmed, allowing sending of frequently used messages quickly.
