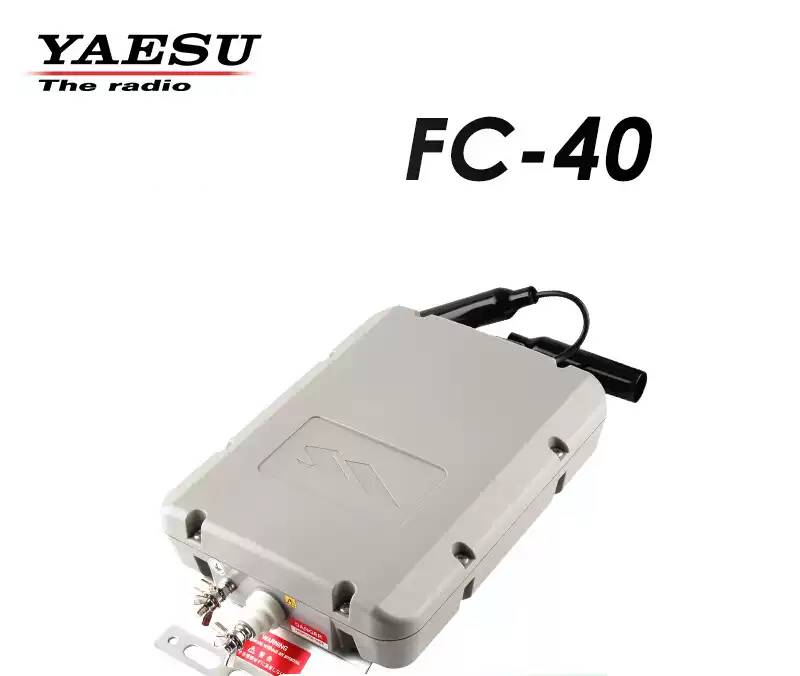

YAESU FC-40 AUTOMATIC ANTENNA TUNER FT-857/FT-897(Long Wire Antenna)
Antenna Tuner, Automatic, Max Power 100 W, 50 Ohms, for FTDX-3000/1200 & FT-450/857/891/991(A), FTDX-101D ,FT-710-AESS, Each

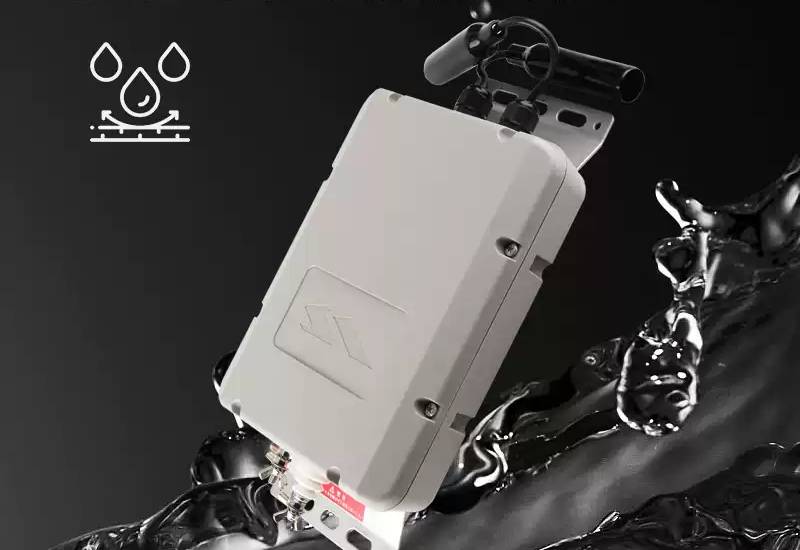

Good thermal stability and waterproof shell design
Maintain high reliability even in harsh environments
Compatible models:
Yaesu FTDX101D、FTDX10、FT-710、FT-991A FT-891、FT-857D、FTDX3000D、FTDX1200、FT-991、 FT-857D etc
Description
The FC-40 is a new, wide-range Antenna Coupler for the FT-450, FT-857, and FT-897 Series of Transceivers.

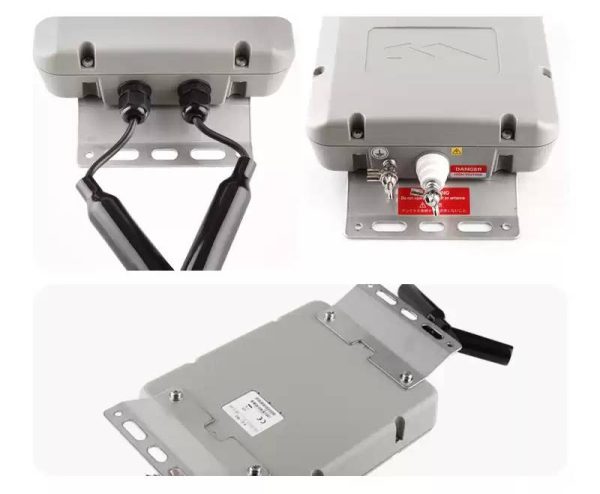

The FC-40 is a microprocessor-controlled antenna impedance matching network designed for use with all versions (original and “D”) of the FT-450, FT-857, and FT-897 HF/VHF/UHF Transceivers. The FC-40 makes use of control circuitry inside the transceiver, allowing the operator to monitor and control operation of the FC-40, which mounts near the antenna feed point. Fully waterproof, the FC-40 may be mounted outdoors in exposed locations, and will handle a 100 Watts of transmitter power.
The FC-40 is designed for operation on 7 ~ 54 MHz, when using an 8′ whip like the YAESU YA-007, or on 1.8 ~ 54 MHz when used with a random-length wire longer than 66′. Matching time is typically five seconds or less, and the required drive power is 4 ~ 60 Watts. The FC-40 sports a whopping 200 match-setting-point memories, for instant recall of the tuning settings.
Specifications:
Operating Frequency Range:
1.6 – 54 MHz with 20+m end-fed wire
7 – 54 MHz with YA-007 HF 2.5 m Mobile Whip Antenna
Input Impedance:
50 Ohms
Maximum Input Power:
100W (3 minutes maximum continuous TX)
Matched SWR:
2.0:1 or less
Tune-up Power:
4 – 60W
Tune-up Time:
8 seconds maximum
Impedance Matching Memories:
200 Channels
Power Supply:
13.8V DC (supplied from transceiver)
Case Size (WHD):
9″ x 7″ x 2.1″ (228 x 175 x 55 mm)
Weight:
2.6lbs. (1.2kg)
The FC-40 makes use of the control circuitry built into the transceiver, which allows the operator to control and monitor automatic operation of the FC-40, which mounts near the antenna feedpoint. The FC-40 uses specially -selected, themially-stable components, and is housed in a waterproof case to withstand severe environmental conditions with high reliability.
A carefully-chosen combination of solid-state switching components and high-speed relays allows the FC-40 to match a wide variety of antennas to within a 2:1 SWR on 1.6 – 54 MHz, typically in less than eight seconds. Transmitter power required for matching may be as little as 4 – 60 Watts, and matching settings are automatically stored in memory for instant recall when the same frequency range is selected later. The FC-40 is a current feed design and may not be able to match frequencies that are near 1/2 wavelength (or multiple) of the antenna element.
