Walkie Talkie HIROYASU CQ-7373 Detachable Front Panel 108-615MHz Eight Bands Rx VU Dual Band Tx 50W 100Ch Air Band Amateur Mobile Transceiver
Features:
Eight Bands Receiver:

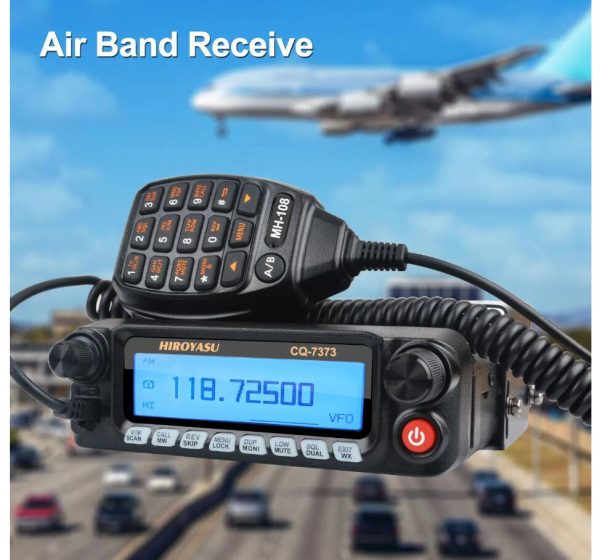

AM 108-136MHz Rx
FM 136-174MHz Rx
FM 174-222MHz Rx
FM 222-300MHz Rx
FM 300-335MHz Rx
FM 335-400MHz Rx
FM 400-490MHz Rx
FM 490-616MHz Rx
Dual Band Transmit:
VHF: 136-174MHz FM
UHF: 400-480MHz FM
50W output
1000 Memory Channels
Main Band A+ Sub band B two independent Operation
Detached Front Panel

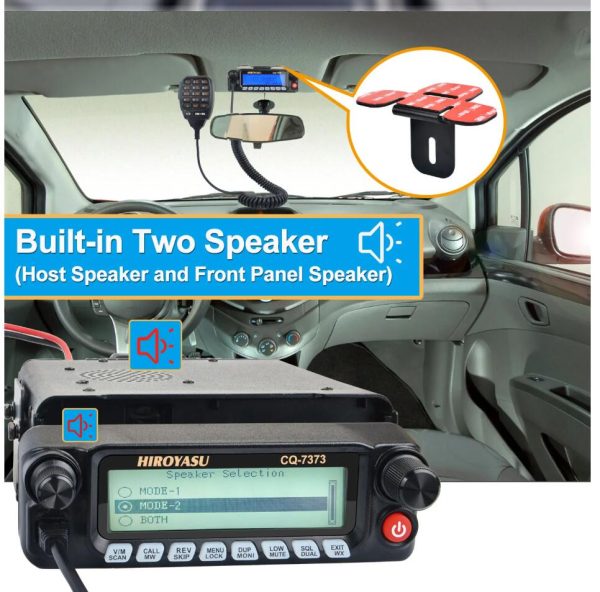

Built-in Two Speakers (host speaker, and panel speaker)
Dual Display, Dual Watch
Background Noise Cancellation
1750Hz Repeater Access Tone

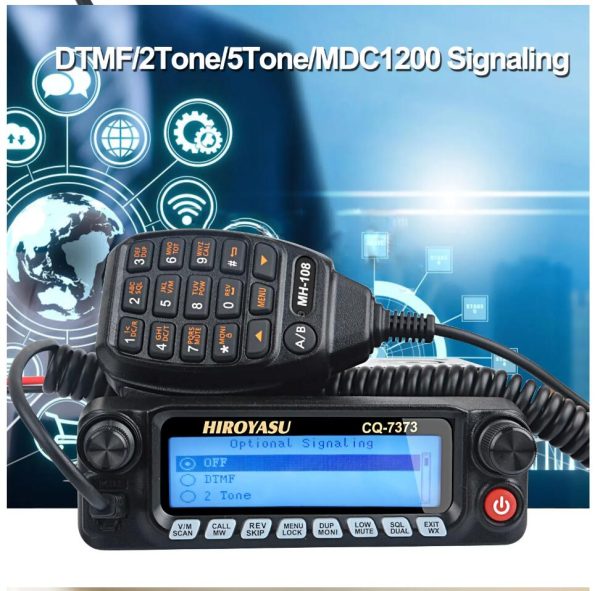

2 Tone/5 Tone/DTMF
MDC1200 Signal ling
Frequency/Ch/CTCSS/DCS Scan
Intelligent Cooling Fans, the fans will work immediately when over-heat detected in transmit
Roger beep

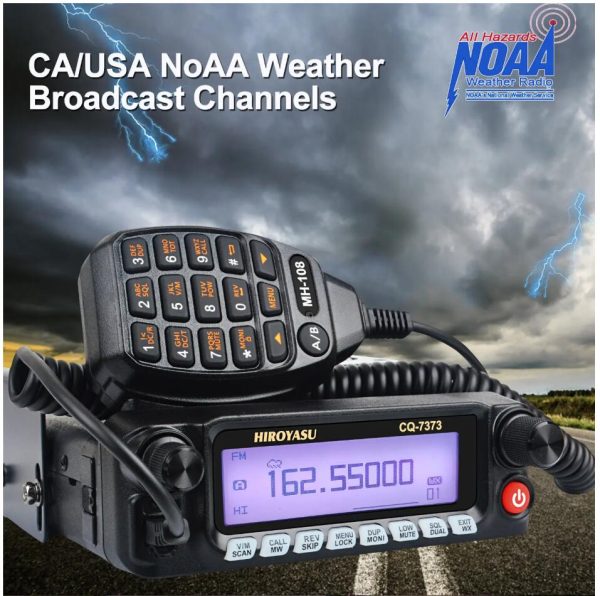

- S.A/CA Weather broadcast Channels
3 meter extend cable for front panel
Front panel Fixing bracket
Seven colors LCD backlight
Photos:
Specifications:
| General | |
| Freq Range | RX:AM 108-135.9975MHz
FM:136-615.9975MHz Tx: FM:136-174MHz FM:400-480.000MHz |
| Channel Step | 2.5*6/6.25/10/1235/20/25/50KHz |
| Mode of Emission | F3E,F2D,F2A |
| Antenna Impedance | 50 ohms,unbalanced (Built-in duplex-er Antenna) |
| Freq Stability | ±5ppm @-14°Fto +140°F(-10°cto +60°c) |
| Operating Temperature Range | -14°Fto +140°F(-10°cto +60°c) |
| Supply Voltage | 13.8V DC ±15%, negative ground |
| Current Consumption(typical) | Rx:0.5A(Squelched)
Tx:9A (144MHz,50W),9A(435MHz,45W) |
| Case Size(W*D*H) | 144*45*189MM(w/o knobs & fans) |
| Weight (Approx.) | 2.2lb (1.0kg) Radio body only |
| Transmitter | |
| Power Output | 55/25/5w(144MHz)
45/25/5w(435MHz) |
| Modulation Type | Variable reactance |
| Maximum Deviation | ±5KHz (Wide),±2.5KHz (Narrow) |
| Spurious Radiation | Better than -60dB |
| Microphone Impedance | 2k ohms |
| Data Socket Impedance | 10k ohms |
| Receiver | |
| Circuit Type | Double Conversion Superheterodyne |
| Intermediate Frequencies | 38.85MHz/450KHz |
| Sensitivity | AM(S/N 10dB):0.4uV(108-136MHz)
FM(12dB SINAD):0.18uV (136-174MHz) FM(10dB SINAD):0.8uV (174-400MHz) FM(125dB SINAD):0.17uV(400-470MHz) FM (10dB SINAD):0.25uV (470-616MHz) |
| Squelch Sensitivity | Better than 0.158uV |
| Selectivity (-6/+60dB) | 12KHz/30KHz |
| Maximum AF Output | 4W/8ohm |
| Audio Output Impedance | 4 to 16 ohms |
Specifications are subject to change in the interest of technical improvement without notice or obligation and are guaranteed only within the amateur bands.
Package Contains:
1×CQ-7373 Mobile radio Body
1× MH-108 DTMF Microphone Speaker
1× 3 Meter (9.84 feet appro.) Front Panel Extended Cable
1× Bracket for radio body
1× fix bracket for front panel
1× Power Cable
1×Front panel plastic fixing kit
1× Screw set
2× Spare Fuse 15A
1× English User Manual
